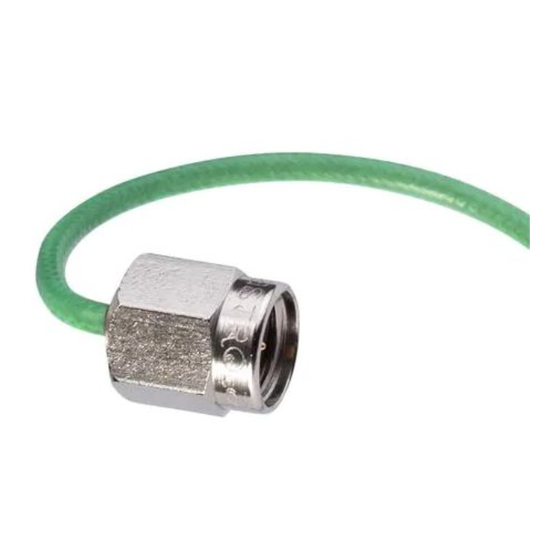

HUBER+SUHNER SMA Series Assembly Instruction

Assembly instruction
Connector type: 11_SMA-50-1-4
Suitable cables:
RG_178_B/U, RG_196_A/U
Parts list connector:

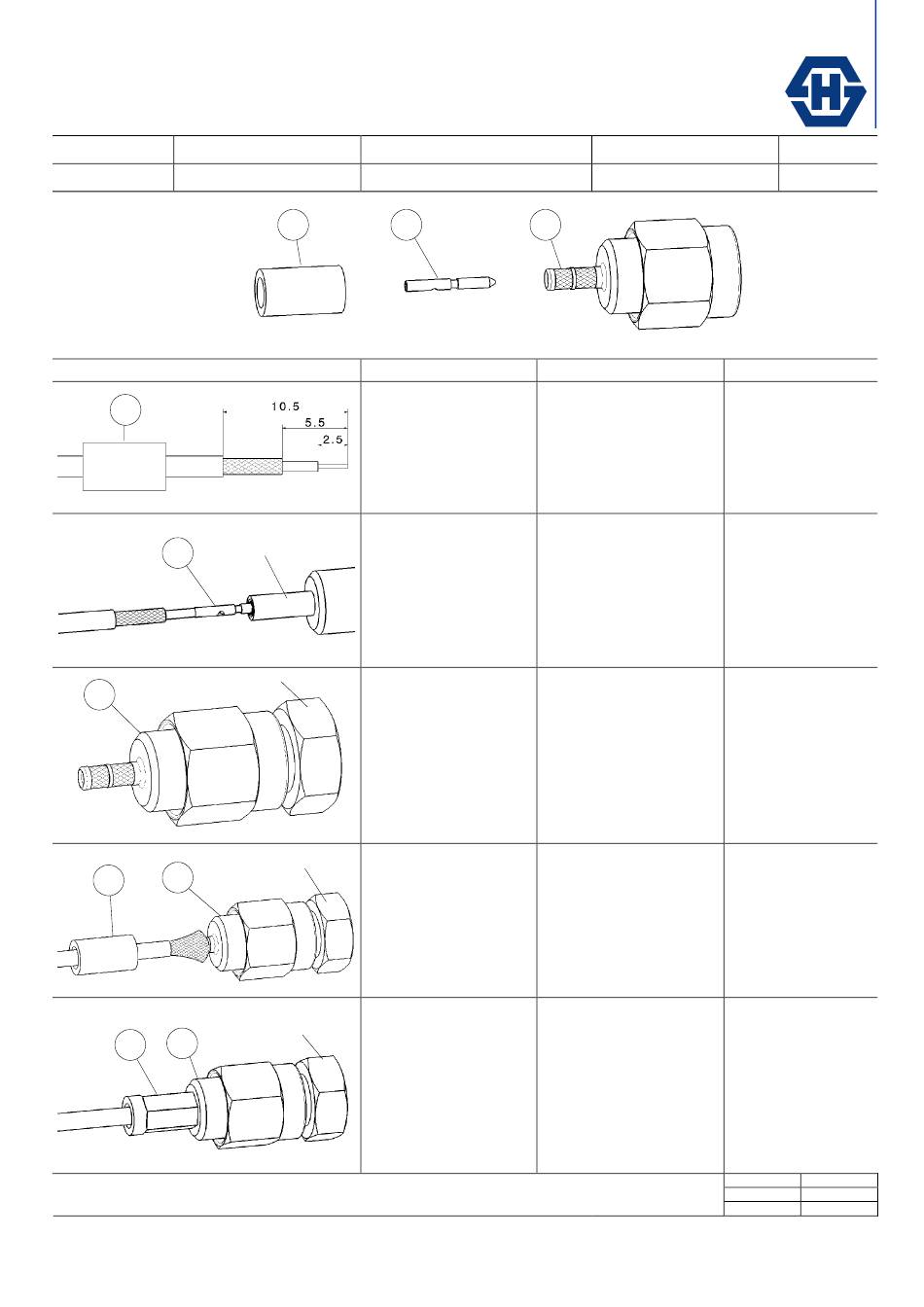

Assembly steps:
A
B
C
C
A
C
A
The cable assembly of R.F. connectors can only be done by well trained assembly staff and suitable assembly equipment.
Huber+Suhner's skilled staff and specialised equipment are available to carry out complete R.F. lead-assembly on your behalf.
We mount your connectors on cables at economic prices! Please contact our representative for further details of this service.
Series SMA
11_SMA-50-1-7
ENVIROFLEX_178_D, K_01252_D
A B
Process
Slide ferrule A onto
cable.
Prepare cable
according to diagram.
W 54
Put contact B in contact
holder W54.
Push contact B over
inner conductor of
cable and solder.
W 14
Mount locator tool W14
"M" onto connector
body C.
W 14
Splay out braid and
insert prepared cable
fully into connector
body C.
W 14
Slide ferrule A over
braid to body C and
crimp. Remove locator
tool.
0000179314
Old instruction No.
Inner conductor contact:
Outer conductor contact:
C
Feature / Check
Do not damage braid,
dielectric and inner
conductor
of cable.
Contact B flush to
dielectric.
Remove any residual
flux.
Ensure that braid lies
above the
crimp neck.
Crimp as close as
possible to connector
body C.
Deutscher Text: siehe Rückseite
27061
soldered
crimped
Tools required
Blade
(74_Z-0-0-68)
scissors
contact holder W54
Locator tool
W14 "M"
Crimp tool: Cavity A
For large crimp tool
and table press use
insert 76_Z-0-2-1.
For small crimp tool
use insert
76_Z-0-2-51.
Revision D
Date 08.03.2012
Initiator 4186/MAP
