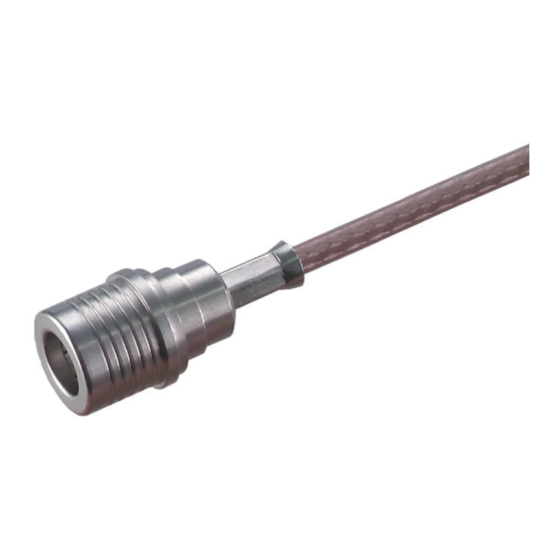

HUBER+SUHNER QMA Series Assembly Instruction

Assembly instruction
Connector type: 11_QMA-50-2-1, 11_QMA-50-2-2
ENVIROFLEX_316_D ; K_02252_D ; G_02232_D
Suitable cables:

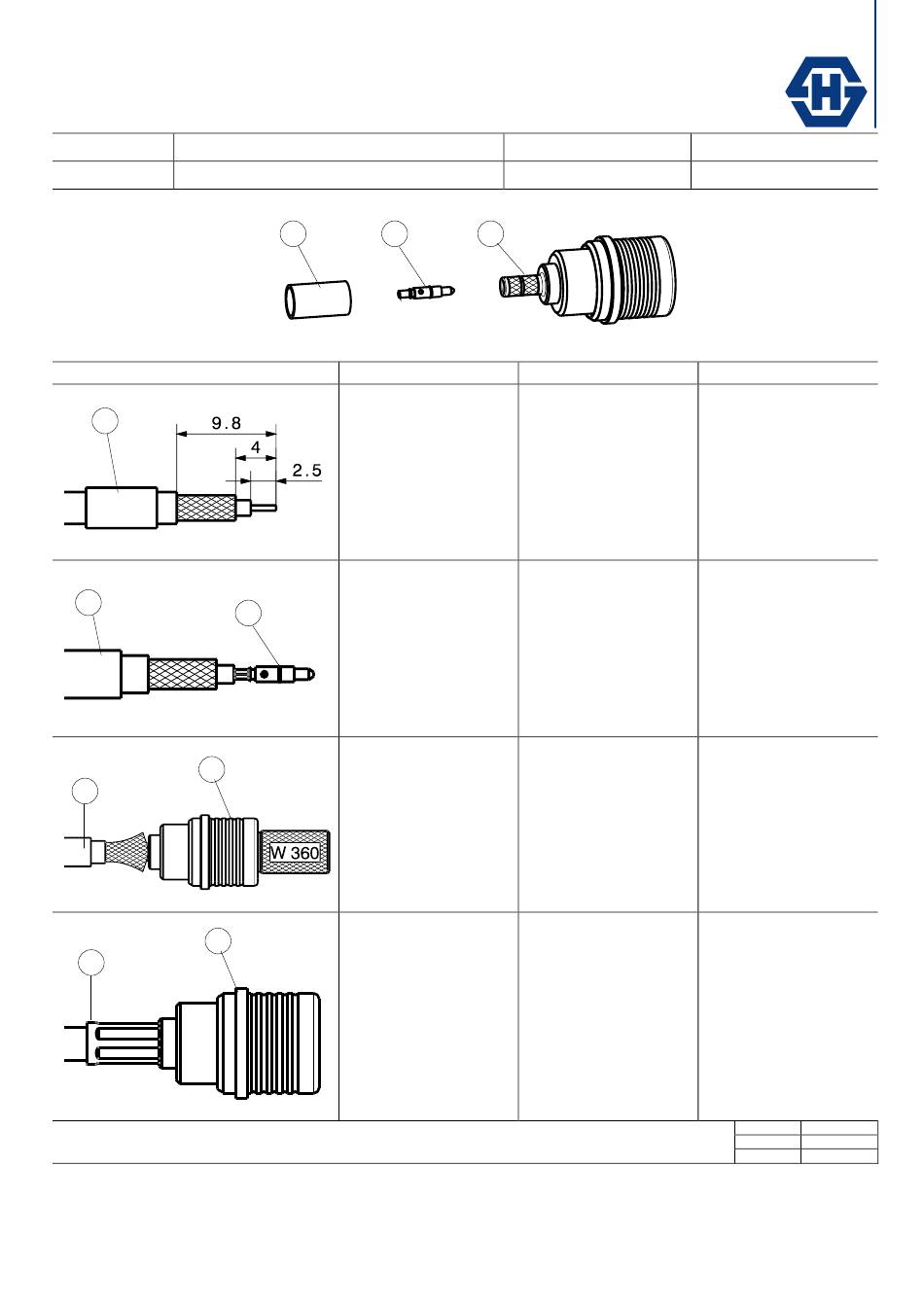

Parts list connector:
Assembly steps:
A
A
C
A
C
A
The cable assembly of R.F. connectors can only be done by well trained assembly staff and suitable assembly equipment.
Huber+Suhner's skilled staff and specialised equipment are available to carry out complete R.F. lead-assembly on your behalf.
We mount your connectors on cables at economic prices! Please contact our representative for further details of this service.
Series QMA
A B
Process
Slide ferrule A onto
cable.
Prepare cable according
to diagram.
B
Push contact B over
inner conductor of cable
and crimp.
Mount locator tool
W 360 "M" into body C.
Splay out braid and
insert cable into
connector body C
until stop.
Remove mount locator
tool W 360.
Slide ferrule A over
braid and crimp
0000183265
Old Assembly instruction No. 27427
Inner conductor contact:
Outer conductor contact:
C
Feature / Check
Do not damage centre
contact, dielectric and
braid.
Contact B flush to
dielectric.
Ensure that braid lies
above crimp neck.
Crimp as close to
connector body C as
possible.
Crimped (Cavity 1)
Crimped (Cavity A)
Tools required
Stanley blade
Scissors
Crimp tool :
Cavity 1
For large crimp tool and
table press use insert
76 Z-0-2-1 !
For small crimp tool
use insert
76 Z-0-2-51 !
Crimp tool :
Cavity A
For large crimp tool
and table press use
insert
76 Z-0-2-1 !
For small crimp tool
use insert
76 Z-0-2-51 !
Revision C
Date 11.11.2016
Initiator 4779/JPE
Deutscher Text: siehe Rückseite
