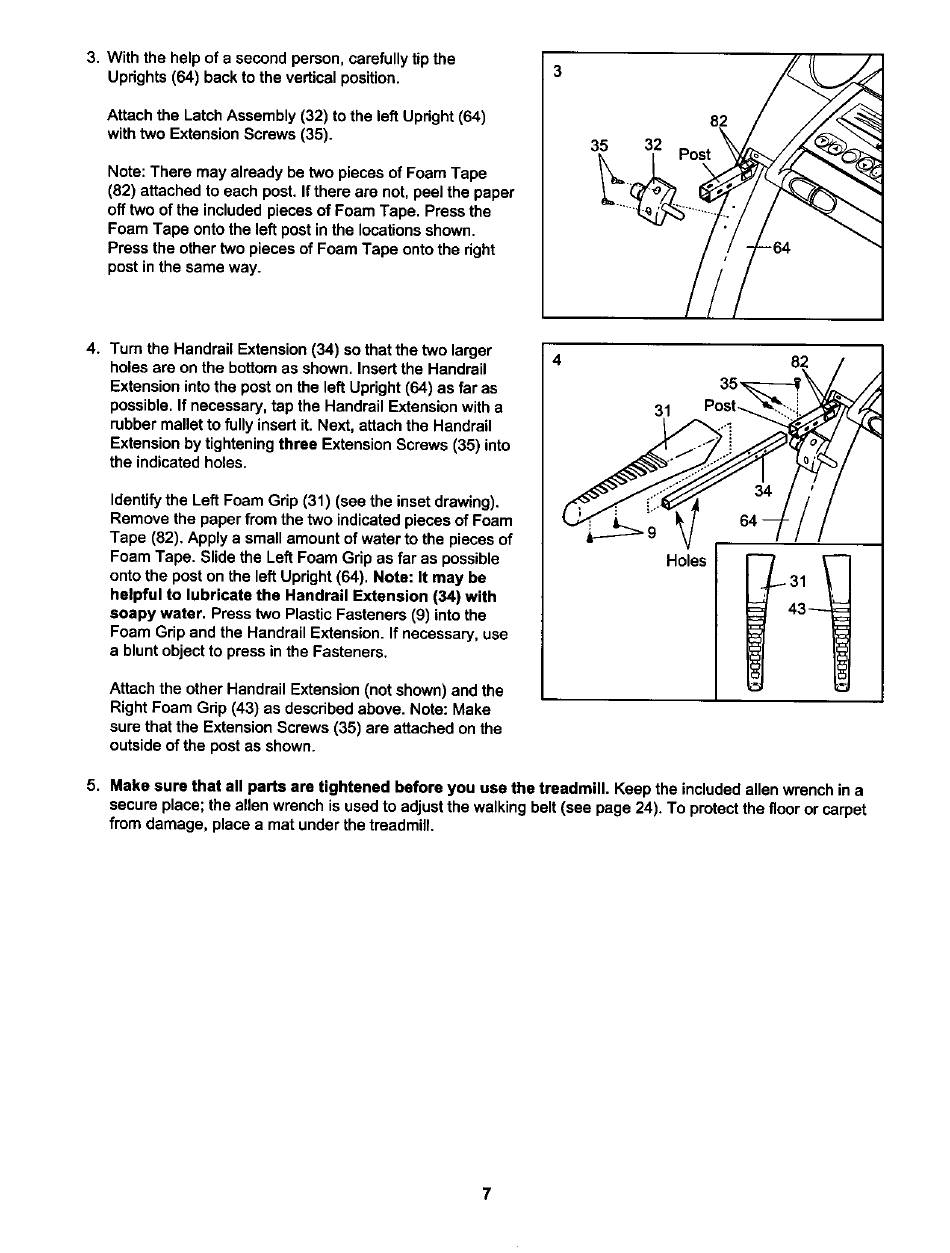

3. With the help of a second person, carefullytip the
Uprights (64) back to the vertical position. 3
Attach the Latch Assembly (32) to the left Upright (64)
with two Extension Screws (35).
Note: There may already be two pieces of Foam Tape
(82) attached to each post. If there are not, peel the paper
off two of the included pieces of Foam Tape. Press the
Foam Tape onto the left post in the locationsshown.
Press the other two pieces of Foam Tape onto the right
post in the same way.
35 32
82
Post
4. Turn the Handrail Extension (34) so that the two larger
holes are on the bottomas shown. Insert the Handrail
Extension into the post on the left Upright (64) as far as
possible. If necessary, tap the Handrail Extension with a
rubber mallet to fully insert it. Next, attach the Handrail
Extension by tighteningthree Extension Screws (35) into
the indicated holes.
Identify the Left Foam Grip (31) (see the inset drawing).
Remove the paper from the two indicatedpieces of Foam
Tape (82). Apply a small amount of water to the pieces of
Foam Tape. Slide the Left Foam Grip as far as possible
onto the post on the left Upright (64). Note: It may be
helpful to lubricate the Handrail Extension (34) with
soapy water. Press two Plastic Fasteners (9) into the
Foam Grip and the Handrail Extension. If necessary, use
a blunt object to press in the Fasteners.
Attach the other Handrail Extension (not shown) and the
Right Foam Grip (43) as describedabove. Note: Make
sure that the Extension Screws (35) are attached on the
outside of the post as shown.
82
31 Post-.
Holes
5. Make sure that all parts are tightened before you use the treadmill. Keep the included allen wrench in a
secure place; the allen wrench is used to adjustthe walking belt (see page 24). To protectthe floor or carpet
from damage, place a mat under the treadmill.
