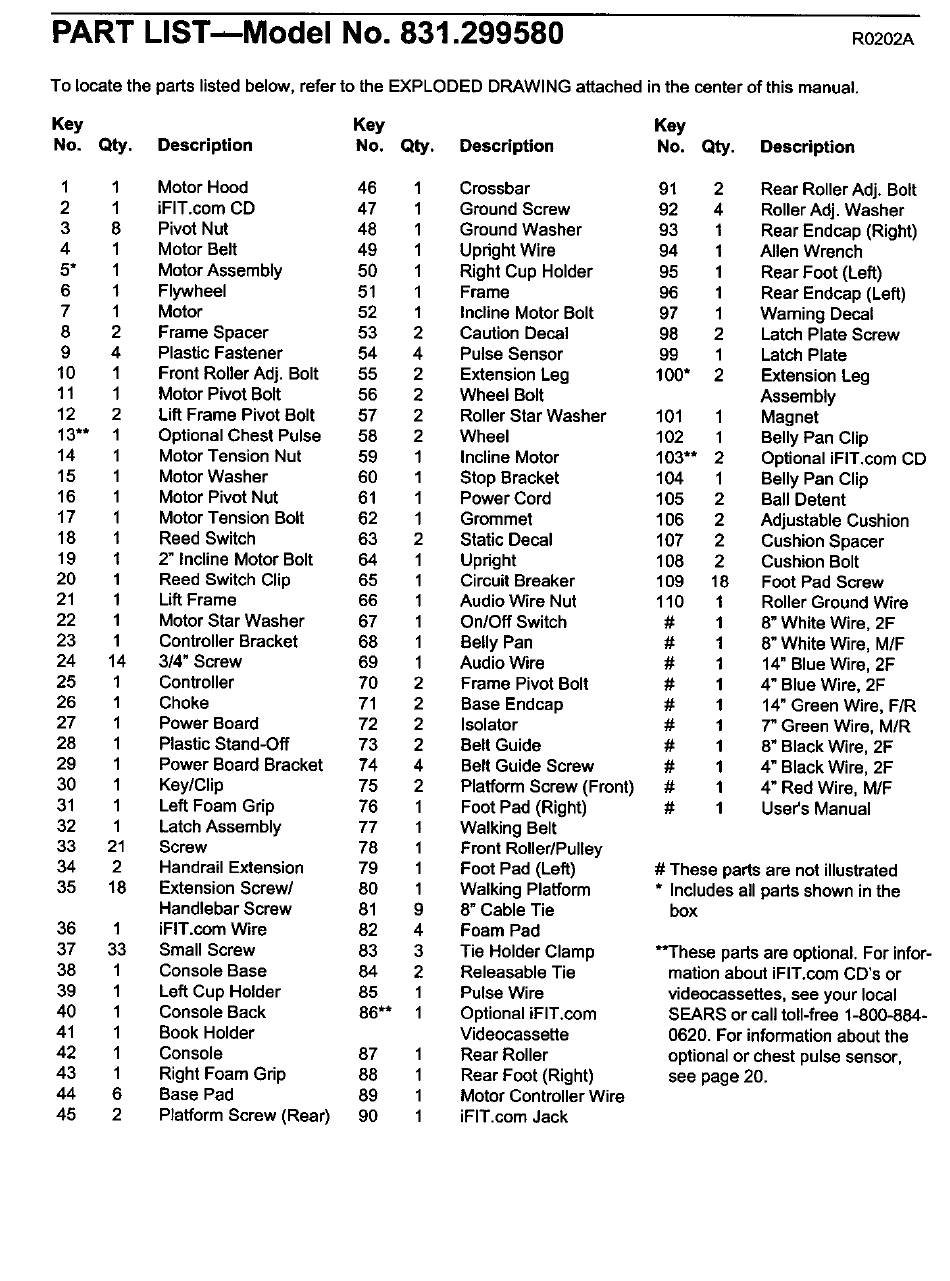

PART LIST--Model
No. 831.299580
R0202A
To locate the parts listed below, refer to the EXPLODED DRAWING attached in the center of this manual.
Key
Key
Key
No.
Qty.
Description
No.
Qty.
Description
No.
Qty.
Description
1
1
Motor Hood
46
1
Crossbar
2
1
iFIT.com CD
47
1
Ground Screw
3
8
Pivot Nut
48
1
Ground Washer
4
1
Motor Belt
49
1
Updght Wire
5*
1
Motor Assembly
50
1
Right Cup Holder
6
1
Flywheel
51
1
Frame
7
1
Motor
52
1
Incline Motor Bolt
8
2
Frame Spacer
53
2
Caution Decal
9
4
Plastic Fastener
54
4
Pulse Sensor
10
1
Front Roller Adj. Bolt
55
2
Extension Leg
11
1
Motor Pivot Bolt
56
2
Wheel Bolt
12
2
Lift Frame Pivot Bolt
57
2
Roller Star Washer
13"*
1
OptionaIChest Pulse
58
2
Wheel
14
1
Motor Tension Nut
59
1
Incline Motor
15
1
Motor Washer
60
1
Stop Bracket
16
1
Motor Pivot Nut
61
1
Power Cord
17
1
Motor Tension Bolt
62
1
Grommet
18
1
Reed Switch
63
2
Static Decal
19
1
2" Incline Motor Bolt
64
1
Upright
20
1
Reed Switch Clip
65
1
Circuit Breaker
21
1
Lift Frame
66
1
Audio Wire Nut
22
1
Motor Star Washer
67
1
On/Off Switch
23
1
Controller Bracket
68
1
Belly Pan
24
14
3/4" Screw
69
1
Audio Wire
25
1
Controller
70
2
Frame Pivot Bolt
26
1
Choke
71
2
Base Endcap
27
1
Power Board
72
2
Isolator
28
1
Plastic Stand-Off
73
2
Belt Guide
29
1
Power Board Bracket
74
4
Belt Guide Screw
30
1
Key/Clip
75
2
Platform Screw (Front)
31
1
Left Foam Gdp
76
1
Foot Pad (Right)
32
1
Latch Assembly
77
1
Walking Belt
33
21
Screw
78
1
Front Roller/Pulley
34
2
Handrail Extension
79
1
Foot Pad (Left)
35
18
Extension Screw/
80
1
Walking Platform
Handlebar Screw
81
9
8" Cable Tie
36
1
iFIT.com Wire
82
4
Foam Pad
37
33
Small Screw
83
3
Tie Holder Clamp
38
1
Console Base
84
2
Releasable Tie
39
1
Left Cup Holder
85
1
Pulse Wire
40
1
Console Back
86**
1
Optional iFIT.com
41
1
Book Holder
Videocassette
42
1
Console
87
1
Rear Roller
43
1
Right Foam Grip
88
1
Rear Foot (Right)
44
6
Base Pad
89
1
Motor ControllerWire
45
2
Platform Screw (Rear)
90
1
iFIT.com Jack
91
2
Rear Roller Adj. Bolt
92
4
RollerAdj. Washer
93
Rear Endcap (Right)
94
Allen Wrench
95
Rear Foot (Left)
96
Rear Endcap (Left)
97
Warning Decal
98
2
Latch Plate Screw
99
Latch Plate
100"
2
Extension Leg
Assembly
101
1
Magnet
102
1
Belly Pan Clip
103"* 2
Optional iFIT.com CD
104
1
Belly Pan Clip
105
2
Ball Detent
106
2
Adjustable Cushion
107
2
Cushion Spacer
108
2
Cushion Bolt
109
18
Foot Pad Screw
110
Roller Ground Wire
#
8" White Wire, 2F
#
8" White Wire, M/F
#
14"Blue Wire, 2F
#
4" Blue Wire, 2F
#
14"Green Wire, F/R
#
7" Green Wire, M/R
#
8" Black Wire, 2F
#
4" Black Wire, 2F
#
4" Red Wire, M/F
#
User's Manual
# These parts are not illustrated
* Includesall parts shown in the
box
**These parts are optional. For infor-
mation about iFIT.com CD's or
videocassettes,see your local
SEARS or call toll-free 1-800-884-
0620. For informationabout the
optionalor chest pulse sensor,
see page 20.
