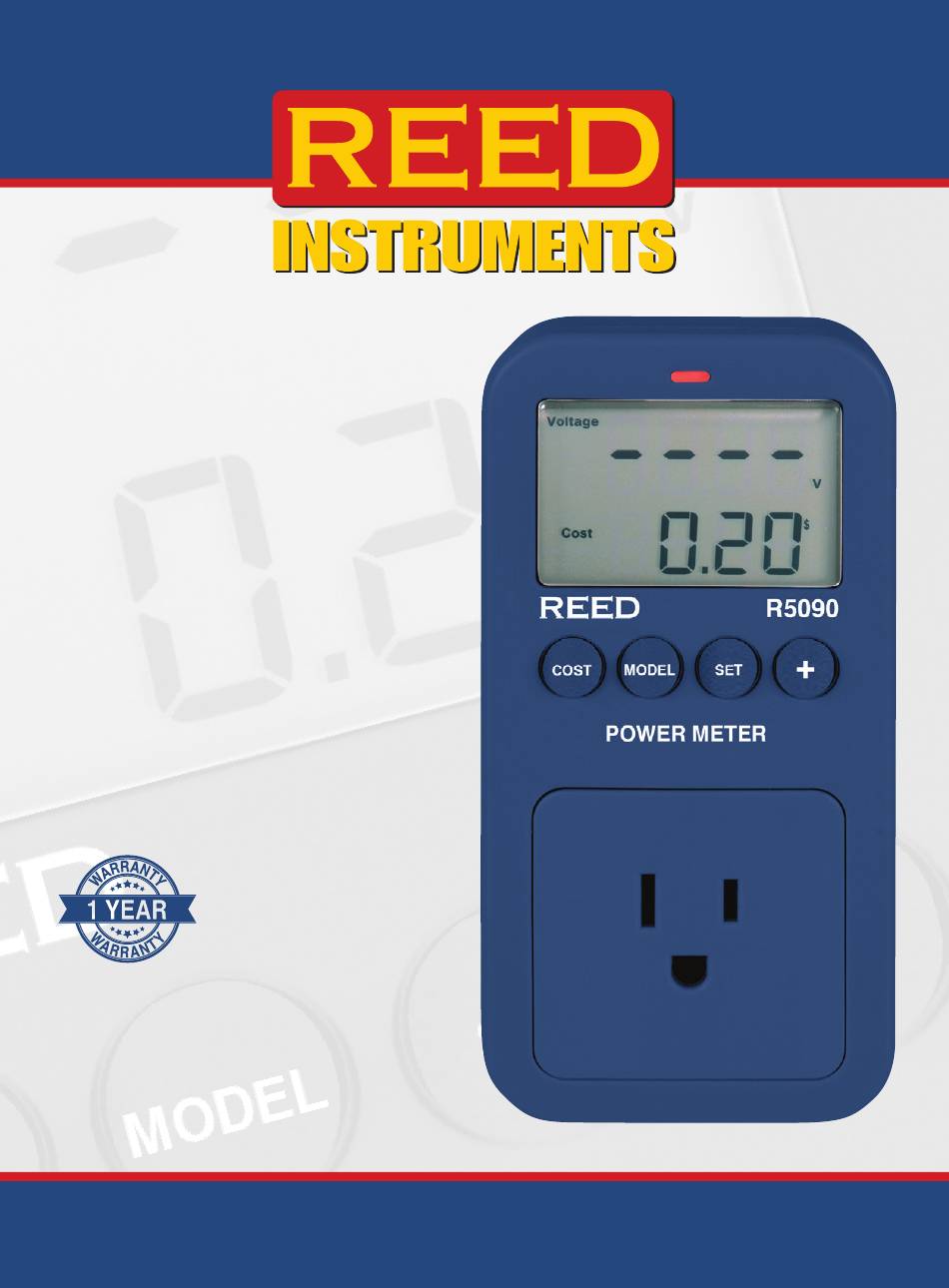

- Page 1 R5090 Power Meter White background 1 YEAR 1 AN Transparent background 1 AN 1 YEAR White Instruction Manual Black www.REEDInstruments.com REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 2: Table Of Contents
Product Disposal and Recycling .............. 12 Product Support ..................12 Introduction Thank you for purchasing your REED R5090 Power Meter. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. -
Page 3: Safety
• The load power of electrical appliance of this product should not exceed its rated power of 1800W or a maximum current of 15A. When running under a full load, it is recommended not to exceed 1 hour of continuous use. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... - Page 4 • Always completely secure the battery compartment. If the battery compartment does not close securely, stop using the product, remove the batteries, and keep them away from children. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 5: Features
Simply set the local utility rate in Kilowatt-hours (kWh) and connect an appliance to start tracking cost. The R5090 can be used to verify power quality by monitoring voltage, frequency and power factor. • Calculates the operating costs of electronic devices •... -
Page 6: Specifications
61010-2-030; Certified to CSA STD.C22.2 NO.61010-1, 61010-2-030 Storage Temperature: 14 to 140°F (-10 to 60°C) Operating Humidity Range: 10 to 90% Dimensions: 5.1 x 2.6 x 1.5" (130 x 65 x 37mm) Weight: 1.9oz (155g) REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 7: Instrument Description
Instrument Description 1. LCD Display 2. Cost Button 3. Model Button 4. Set Button 5. "+"/Reset/Power Button 6. Power Input Socket REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 8: Display Description
0-9 cycle. The second is the reset function; reset the Energy, Cost or emission load of CO2 by holding it down. The Voltage + button is also used to power on the unit when power is off. Total time REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 9: Operating Instructions
The factor for the CO2 equivalents is entered in the device in kg/kWh and displayed accordingly in kg/kWh. You can find information on the CO2 equivalents to be entered on your power bill and on the internet, technical manuals or by contacting your energy supplier. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 10: Setting The Kwh Cost Function
Note: The $ values can be set between 0 and 99.99. 5. Press the SET button to confirm your selection and skip to the next value. 6. When the desired value has been set, save the data by holding the SET button. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 11: Battery Replacement
Burns in as little as 2 hours • Keep new and used batteries OUT OF REACH OF CHILDREN • Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body • For treatment information call: 1-800-498-8666. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 12: Product Warranty
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance.
