Summary of Contents for Reed Instruments R9510

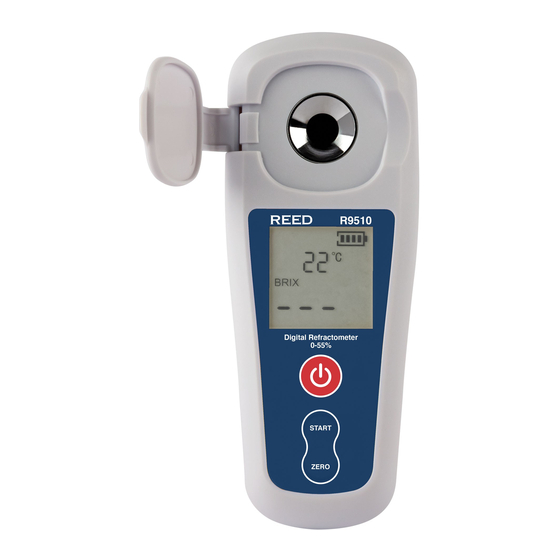

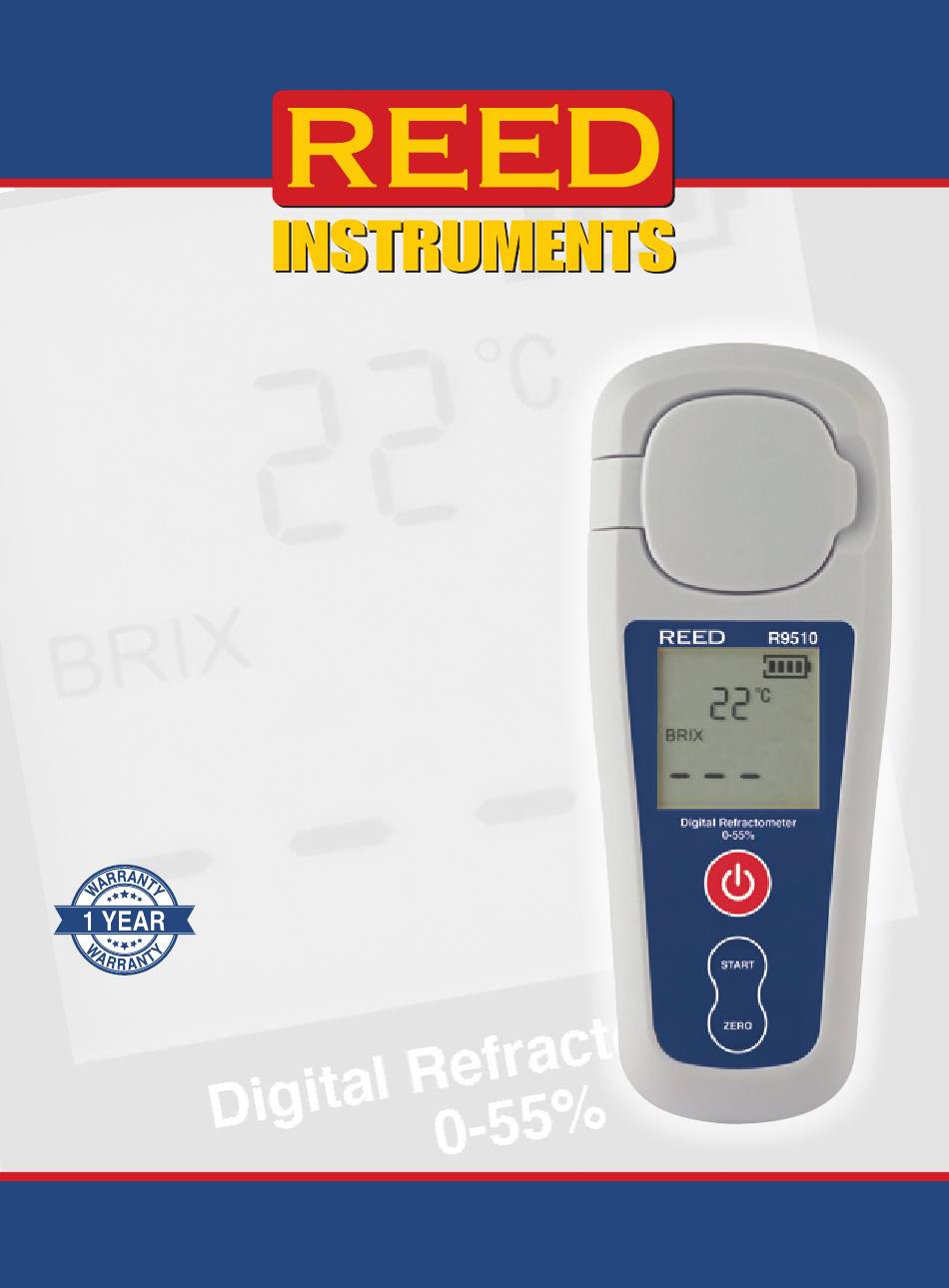

- Page 1 R9510 Digital Refractometer Instruction Manual REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 2: Table Of Contents
Product Disposal and Recycling ..............9 Product Support ..................9 Introduction Thank you for purchasing your REED R9510 Digital Refractometer. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. -
Page 3: Product Quality
• Ergonomically designed for one-handed operation • Dual LCD simultaneously displays % Brix and temperature • Sapphire prism with abrasion and corrosion-resistant coating • Automatic Temperature Compensation (ATC) • Built-in Zero calibration • Rechargeable battery REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 4: Includes
2 minutes Power Supply: 750mAh rechargeable Li-ion battery Battery Life: 40 hours Charge Time: 3.5 hours Product Certifications: CE, IP54 Dimensions: 5.5 x 2.2 x 1.38" (140 x 55 x 35mm) Weight: 0.19lbs (84g) REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 5: Instrument Description
4. Protective Cover 5. START Button 6. Sample Well 7. USB Interface Display Description 1. Battery Status Indicator 2. Temperature Measurement Reading 3. % Brix Measurement Mode Indicator 4. % Brix Measurement Reading REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 6: Operating Instructions
A series of dashes ( – – – ) will appear on the display followed by 0.0% Brix which confirms that the zero calibration was successful. The R9510 is now ready to use. Measuring Procedure Inspect the sample well to be sure that there is no residue remaining from a previous measurement/calibration. -
Page 7: Auto Power Off
Charging the Battery Connect the R9510 via the included cable to a USB port on your PC or into a wall outlet using a USB Power Adapter (not included) to charge the Li-ion battery. -
Page 8: Error Codes
• Store your product in a clean, dry place. • Charge the battery as needed. • Clean your product with biodegradable cleaner. Do not spray the cleaner directly on the instrument. Use on external parts only. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 9: Product Warranty
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. - Page 10 TEST & MEASURE WITH CONFIDENCE CHECK OUT OUR LATEST PRODUCTS! www.REEDInstruments.com REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
