- Page 1 R5065 3000A Flexible 18" Current Probe Instruction Manual www.REEDINSTRUMENTS.com GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Table Of Contents
Table of Contents Intoduction ....................3 Product Quality ................... 3 Safety ......................3-4 Electrical Symbols ..................4 Features ...................... 4 Included ...................... 5 Specifications ..................... 5 Instrument Description ................6 Operating Instructions ................7-8 AC Current Measurement ..............7-8 Battery Replacement .................. 9 Applications .................... -
Page 3: Intoduction
Introduction Thank you for purchasing your REED R5065 3000A Flexible 18" Current Probe. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. Product Quality... -
Page 4: Electrical Symbols
• Remove the battery if the meter will be stored for an extended period of time. • To avoid inaccurate readings, replace the battery if the "POWER" indicator light flashes. Electrical Symbols Symbol Description Equipment protected throughout by double insulation or reinforced insulation Earth (ground) Warming or Caution... -
Page 5: Included
Included • BNC Adapter • Batteries The included BNC adapter can be used to connect the flexible current sensor to read out on an oscilloscope. To avoid false readings, do not use low input impedance settings when using oscilloscopes as readouts. Specifications AC/DC Current Range:... -
Page 6: Instrument Description

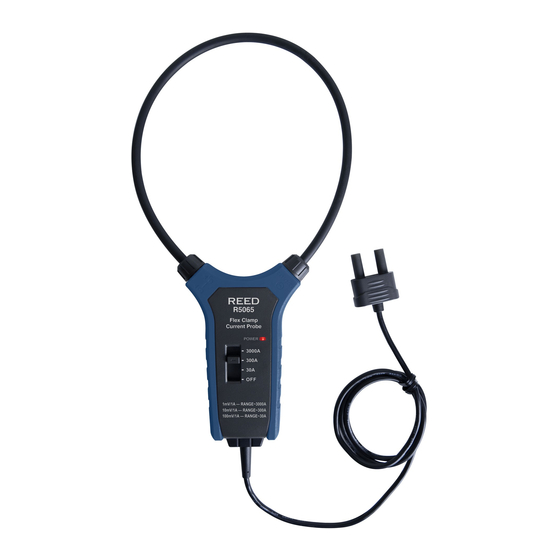

Instrument Description R5065 Flex Clamp Current Probe Flexible Rogowski Coil Power Status Indicator Flexible Clamp Lock OFF/Current Selector Switch Fixed Clamp Nut www.REEDINSTRUMENTS.com GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 7: Operating Instructions
Unlock the probe's flexible tubing as shown below to wrap it around the conductor under test. NOTE: Make sure to close and lock it back into place before turning on the device under test. R5065 Flex Clamp Current Probe Keep the probe coupling more than 1" (2.5cm) away from the conductor. - Page 8 R5065 Flex Clamp Current Probe Turn on the flexible probe by setting it to the required current range. Set the rotary function switch of the meter to the DC current position. Turn on the conductor/device under test. The LCD will display the reading.
-
Page 9: Battery Replacement
Battery Replacement Remove the Phillips screw on the back of the meter. Open the battery compartment. Replace the 3x AAA batteries. Properly secure the cover and tighten the screw. Applications • Industrial maintenance teams performing scheduled and preventative maintenance on electro-mechanical equipment and systems. •... -
Page 10: Product Warranty
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. - Page 11 TEST & MEASURE WITH CONFIDENCE CHECK OUT OUR LATEST PRODUCTS! www.REEDINSTRUMENTS.com GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 12 www.REEDINSTRUMENTS.com GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
