Icom IC-7760 Operating Manual page 18

C. Using CW Skimmer with HDSDR (For a narrow 24 kHz bandwidth)
D Action: Making a call to a station that is decoded in CW Skimmer

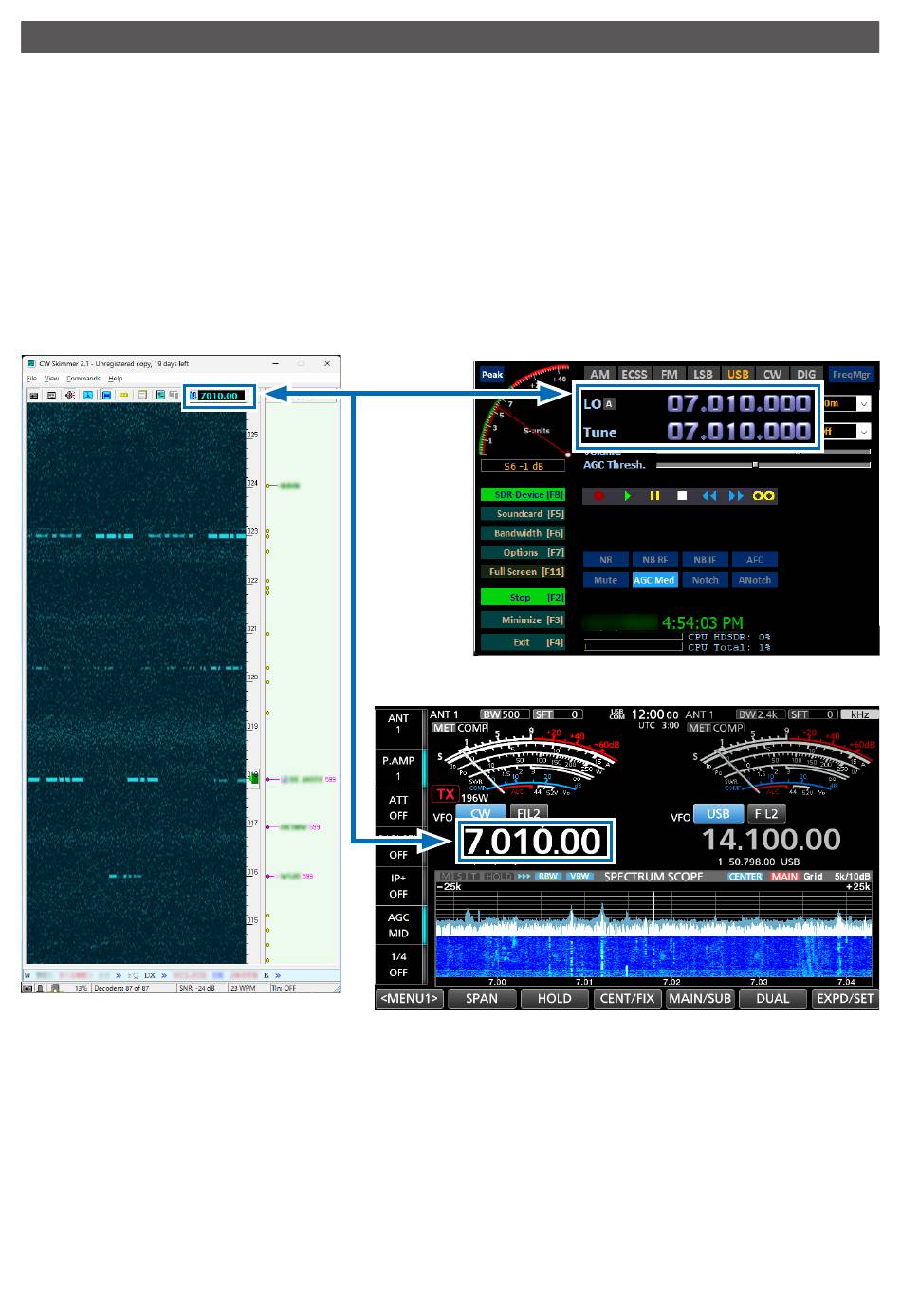

Click <Start> on the HDSDR Main screen, and then click <Start> on the CW Skimmer's tool bar.
• The waveform is displayed on CW Skimmer.
• The IC-7760 operating frequency, the HDSDR LO frequency, the HDSDR Tune frequency, and the CW Skimmer frequency
are set to the same frequency.
L When changing the frequency, all frequencies are synchronized. Clicking on the signal or the call sign on CW Skimmer sets
the operating frequency to the IC-7760 Main band.
L Right after the frequencies are changed, the waveform on CW Skimmer may be disturbed. However, after a few seconds, the
waveform is correctly displayed.
CW Skimmer HDSDR
All
synchronized
IC-7760
10
