C. Using CW Skimmer with HDSDR (For a narrow 24 kHz bandwidth)
D Settings: Making a call to a station that is decoded in CW Skimmer
CW Skimmer

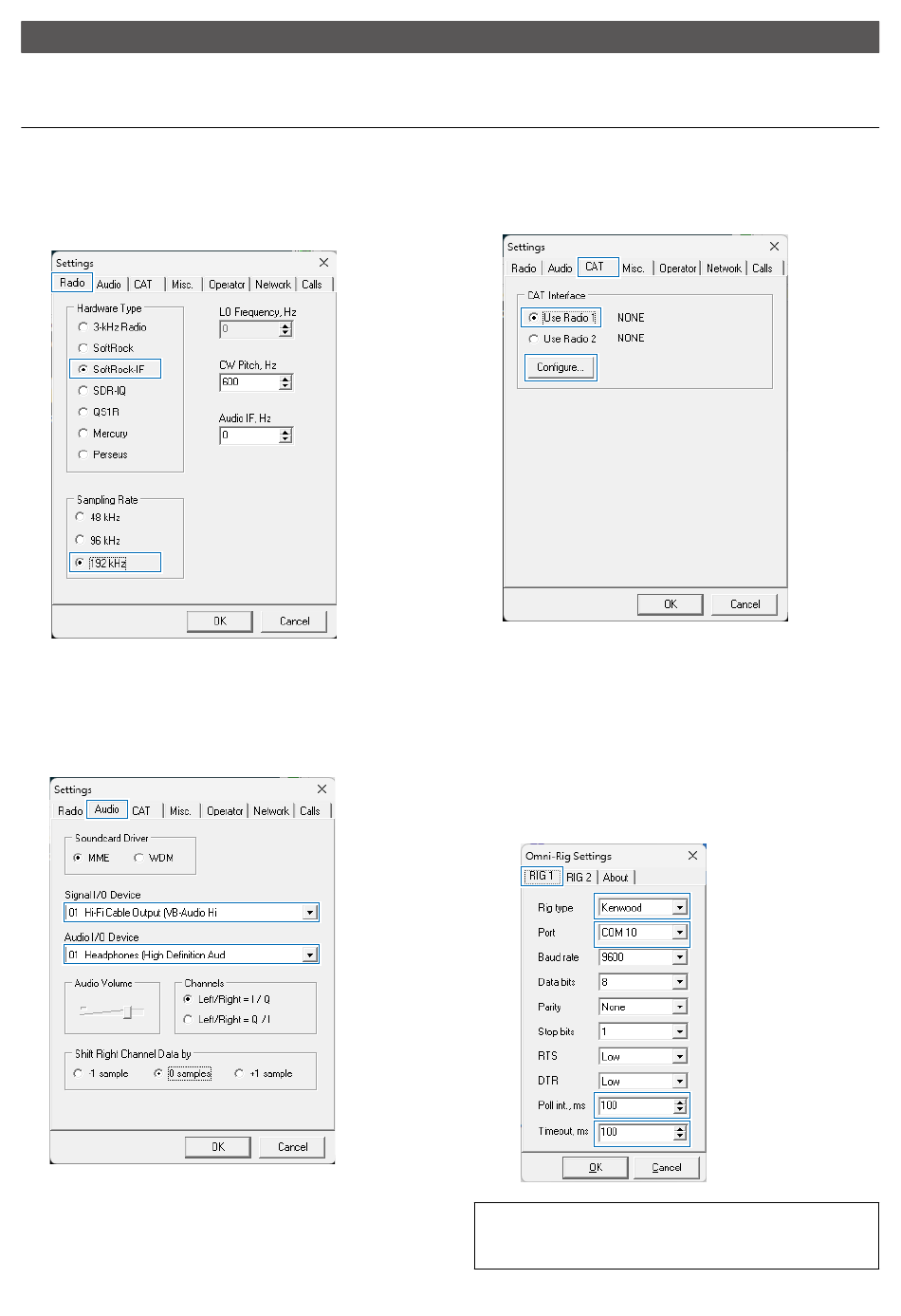

1. To input I/Q data to CW Skimmer, click <View>
→ <Settings> → the "Radio" tab, and then set the
items as described below.
Hardware Type:
Sampling Rate:
2. To input the I/Q data and output the demodulated
audio in CW Skimmer to the speaker, click the
"Audio" tab, and then set the items as described
below.
Signal I/O Device: Hi-Fi Cable Output
Audio I/O Device: A speaker connected to your PC
SoftRock-IF
192 kHz
3. To control the frequency synchronization, click the
"CAT" tab, and then set the items as described
below.
CAT Interface: Use Radio 1
4. Click <Configure...> to open Omni-Rig Settings
screen, and then set the items as described
below.
Rig type: Kenwood
Port: Select the COM Port that is in
com0com, and not set in HDSDR.
Poll int. ms: 100
Timeout. ms: 100
L For other settings, see the screen below.
TIP: You can check the required settings on the
HDSDR Main screen.
<Options> → <CAT to HDSDR> → <What's this ?>
