Icom IC-7760 Operating Manual page 10

Starting up HDSDR
1. Turn ON the IC-7760.
2. Double-click HDSDR icon to start up HDSDR.

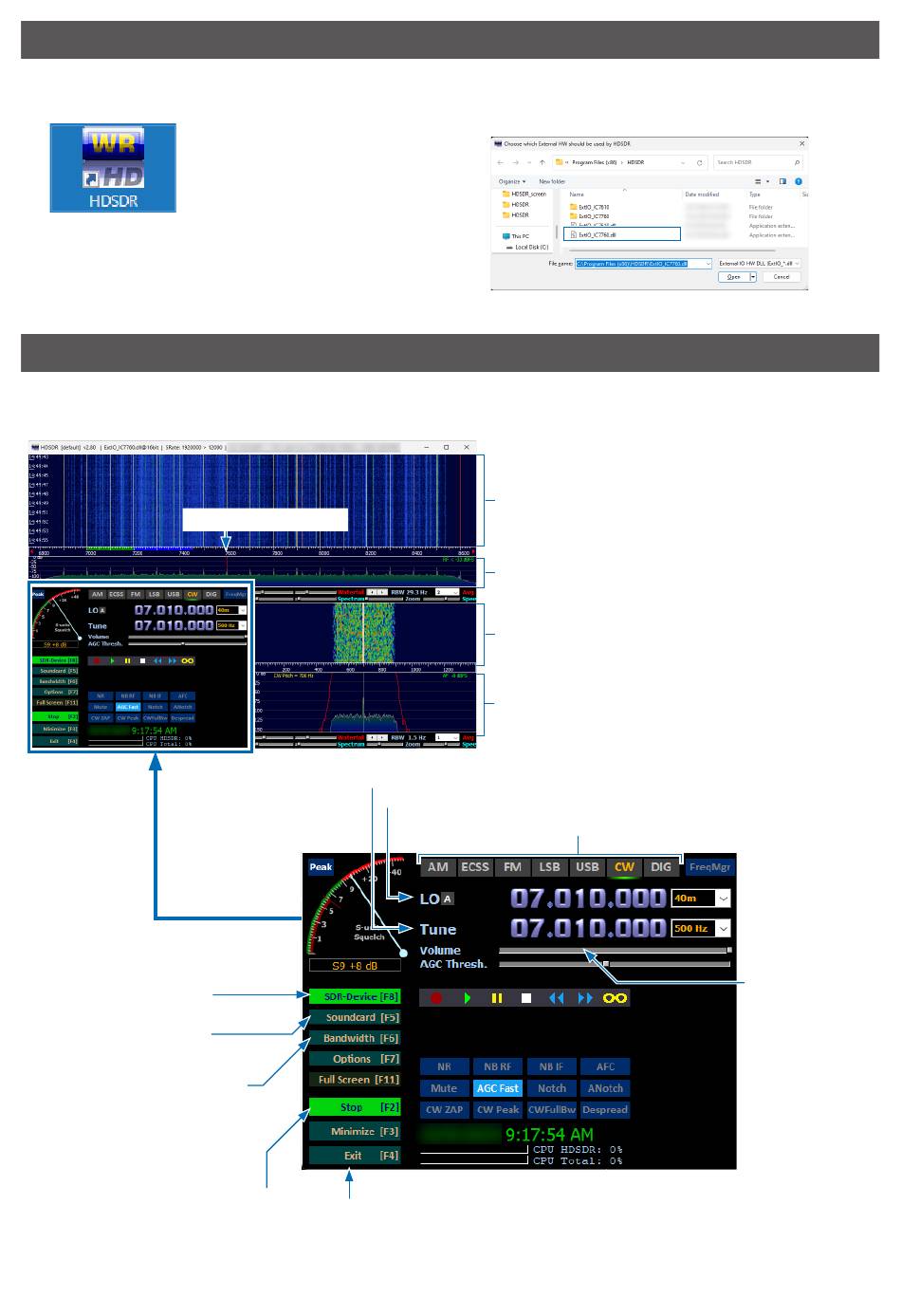

HDSDR Main screen
These are parts of the HDSDR operations. Check the detailed HDSDR operations on the Internet.
L These screens are examples.
Tune frequency Marker
Click to display the IC-7760
I/Q Settings screen. (p. 29)
Click to display the Sound
Card Selection screen.
Click to select the sampling rate.
L The required output sampling
rate depends on the operating
mode.
Click to start or stop
operating.
L If you have installed two or more ExtIO-DLL files, the
screen below is displayed. To open the HDSDR Main
screen, select "ExtIO_IC7760.dll," and then click <Open>.
Waterfall Display (RF)
Spectrum Display (RF)
Waterfall Display (AF)
Spectrum Display (AF)
Click to set the HDSDR Tune frequency.
Click to set the IC-7760 operating frequency.
Click to select the operating mode.
Click to quit the application.
2
Slide to
adjust the audio level.
