IES618 Series
Managed Industrial Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial
Park,
Xili,
Shenzhen
Website: www.3onedata.com
Tel:
+86 0755-26702688
Fax:
+86 0755-26703485
【Package Checklist】
Please check the integrity of package and accessories while
first using the switch.
1.
Industrial Ethernet switch
2.
DIN-Rail mounting attachment
3.
Power line (AC device standard)
4.
Certification
5.
Warranty card
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】
This series are 100M managed DIN-Rail industrial Ethernet
switches. For convenience, the products of this series adopt
the following number on the left in this guide, please confirm
the number of your product:
Model I.
IES618-4F-2P48 (4 100M copper ports + 4 100M
fiber ports + 2 12~60VDC power inputs)
Model II. IES618-4F-P220 (4 100M copper ports + 4 100M
fiber ports + 1 220VAC/DC power input)
Model III. IES618-2F-2P48 (6 100M copper ports + 2 100M
fiber ports + 2 12~60VDC power inputs)
Model IV. IES618-2F-P220 (6 100M copper ports + 2 100M
fiber ports, 1 220VAC/DC power input)
Model V. IES618-2P48 (8 100M copper ports + 2 12~60VDC
power inputs)
Model VI. IES618-P220(8 100M copper ports + 1 220VAC/DC
power input)

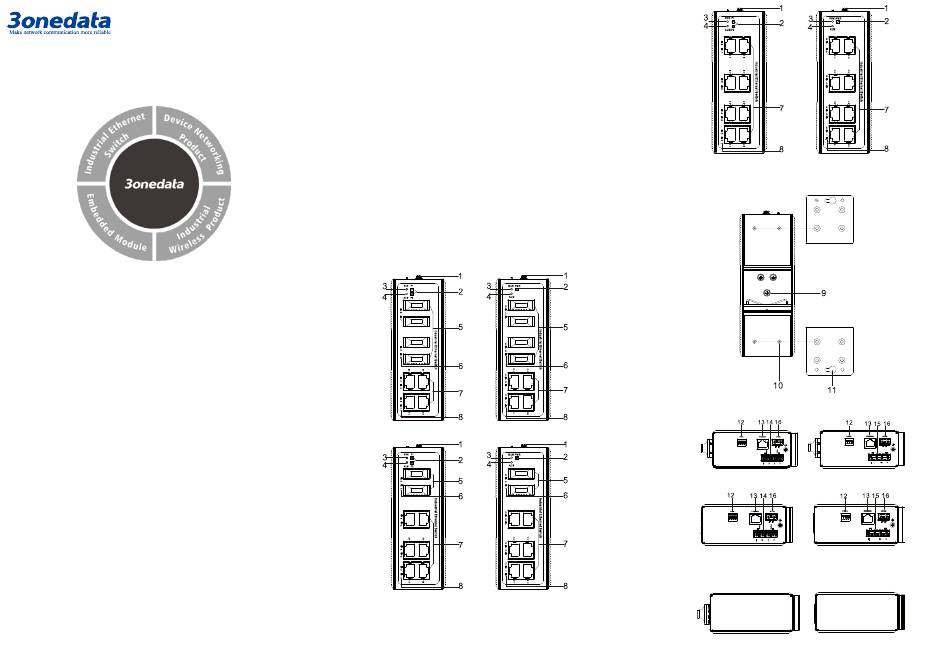

【Panel Design】
Front View
Nanshan
District,
Model I
Model II
Model III
Model IV
Model V
Model VI
Rear view
Top view
Model I, III
Model V
Bottom view
Model I-VI
Model VII, VIII
Model II, IV
Model VI

Advertisement

loading
Need help?

Need help?

Do you have a question about the IES618 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for 3onedata IES618 Series

  • Page 1 Model I. IES618-4F-2P48 (4 100M copper ports + 4 100M fiber ports + 2 12~60VDC power inputs) IES618 Series Model II. IES618-4F-P220 (4 100M copper ports + 4 100M Managed Industrial Ethernet Switch fiber ports + 1 220VAC/DC power input) Quick Installation Guide Model III.
  • Page 2 Grounding screw (M3) moisture, keep the relative humidity of the device Power input status indicator (P1, P2, PWR) surrounding between 5%~95% without condensation. Notice Before Powering on: Device running state indicator (RUN) Before powering on the device, check the power Power ON operation: First insert the power supply ...
  • Page 3 【DIP Switch Settings】 The device is powering on or Power Supply Provide 4 DIP switches for function settings, DC power supply 12/24/48VDC (12~60VDC), the device is abnormal. where "ON" is enable valid terminal. The redundant dual power input, The device is powered off or definitions of DIP switch are as follows: built-in overcurrent...
  • Page 4 The crossed-out wheeled bin symbol on the equipment or its packaging indicates that the product, at the end of its service life, shall not be mixed with unsorted municipal waste should collected separately, in accordance with local laws and regulations. A proper separate collection of end-of-life equipment for the subsequent recycling,...
