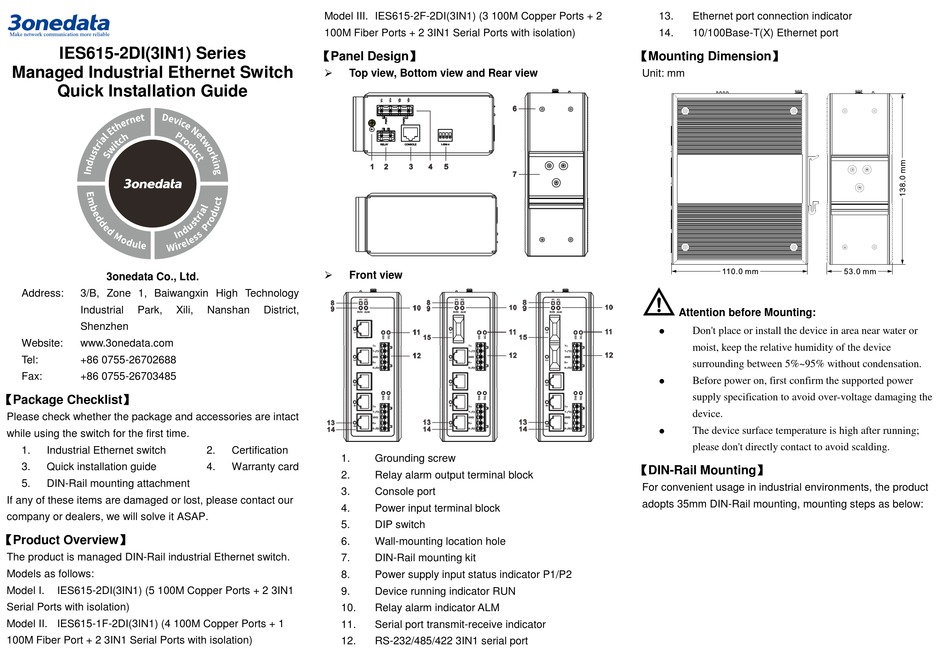

3onedata IES615-2DI(3IN1) Series Quick Installation Manual

IES615-2DI(3IN1) Series
Managed Industrial Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili,
Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485
【Package Checklist】
Please check whether the package and accessories are intact
while using the switch for the first time.
1. Industrial Ethernet switch
3. Quick installation guide
5. DIN-Rail mounting attachment
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】
The product is managed DIN-Rail industrial Ethernet switch.
Models as follows:
Model I. IES615-2DI(3IN1) (5 100M Copper Ports + 2 3IN1
Serial Ports with isolation)
Model II. IES615-1F-2DI(3IN1) (4 100M Copper Ports + 1
100M Fiber Port + 2 3IN1 Serial Ports with isolation)
Model III. IES615-2F-2DI(3IN1) (3 100M Copper Ports + 2
100M Fiber Ports + 2 3IN1 Serial Ports with isolation)
【Panel Design】

Top view, Bottom view and Rear view

Front view
Nanshan District,
2. Certification
1. Grounding screw
4. Warranty card
2. Relay alarm output terminal block
3. Console port
4. Power input terminal block
5. DIP switch
6. Wall-mounting location hole
7. DIN-Rail mounting kit
8. Power supply input status indicator P1/P2
9. Device running indicator RUN
10. Relay alarm indicator ALM
11. Serial port transmit-receive indicator
12. RS-232/485/422 3IN1 serial port
13. Ethernet port connection indicator
14. 10/100Base-T(X) Ethernet port
【Mounting Dimension】
Unit: mm
Attention before Mounting:
 Don't place or install the device in area near water or
moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power

supply specification to avoid over-voltage damaging the
device.
 The device surface temperature is high after running;
please don't directly contact to avoid scalding.
【DIN-Rail Mounting】
For convenient usage in industrial environments, the product
adopts 35mm DIN-Rail mounting, mounting steps as below:
