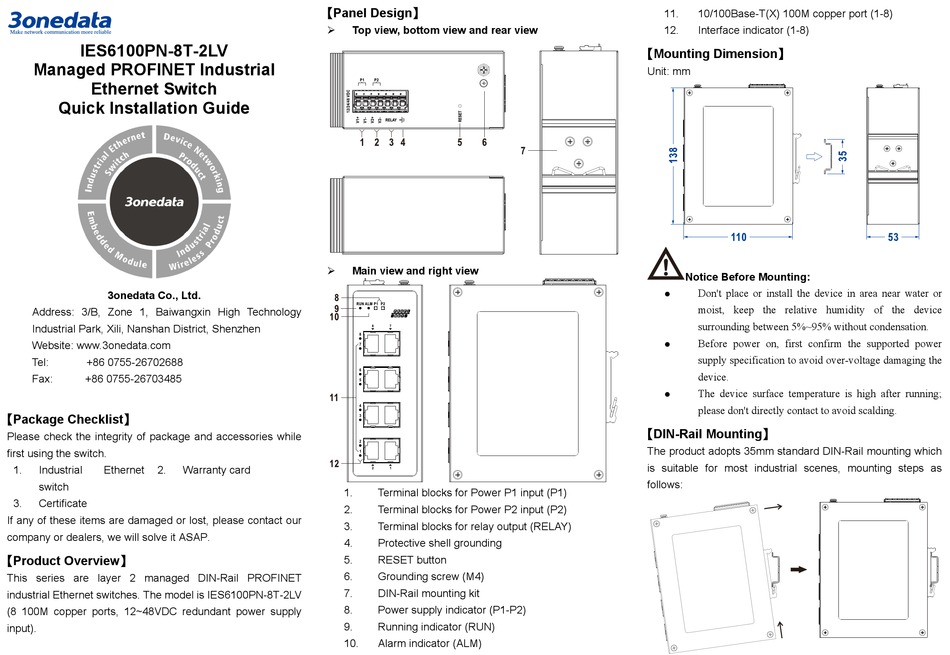

3onedata IES6100PN-8T-2LV Quick Installation Manual

IES6100PN-8T-2LV
Managed PROFINET Industrial
Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili, Nanshan District, Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485
【Package Checklist】
Please check the integrity of package and accessories while
first using the switch.
1. Industrial Ethernet 2.
switch
3. Certificate
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】

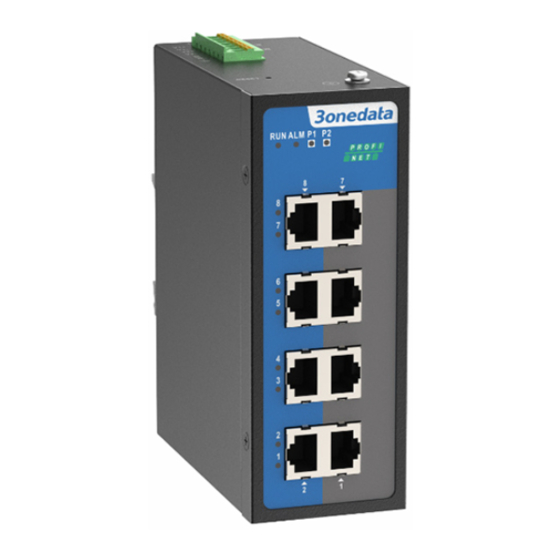

This series are layer 2 managed DIN-Rail PROFINET
industrial Ethernet switches. The model is IES6100PN-8T-2LV
(8 100M copper ports, 12~48VDC redundant power supply
input).
【Panel Design】
Top view, bottom view and rear view

Main view and right view

Warranty card
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Terminal blocks for Power P1 input (P1)
Terminal blocks for Power P2 input (P2)
Terminal blocks for relay output (RELAY)
Protective shell grounding
RESET button
Grounding screw (M4)
DIN-Rail mounting kit
Power supply indicator (P1-P2)
Running indicator (RUN)
Alarm indicator (ALM)
11. 10/100Base-T(X) 100M copper port (1-8)
12. Interface indicator (1-8)
【Mounting Dimension】
Unit: mm
Notice Before Mounting:
Don't place or install the device in area near water or

moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power

supply specification to avoid over-voltage damaging the
device.
The device surface temperature is high after running;

please don't directly contact to avoid scalding.
【DIN-Rail Mounting】
The product adopts 35mm standard DIN-Rail mounting which
is suitable for most industrial scenes, mounting steps as
follows:
