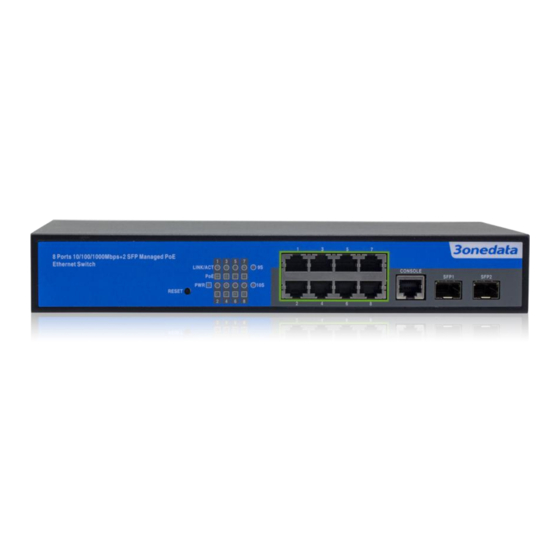

3onedata PS5010G-2GS-8PoE User Manual

Managed full gigabit industrial ethernet poe switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

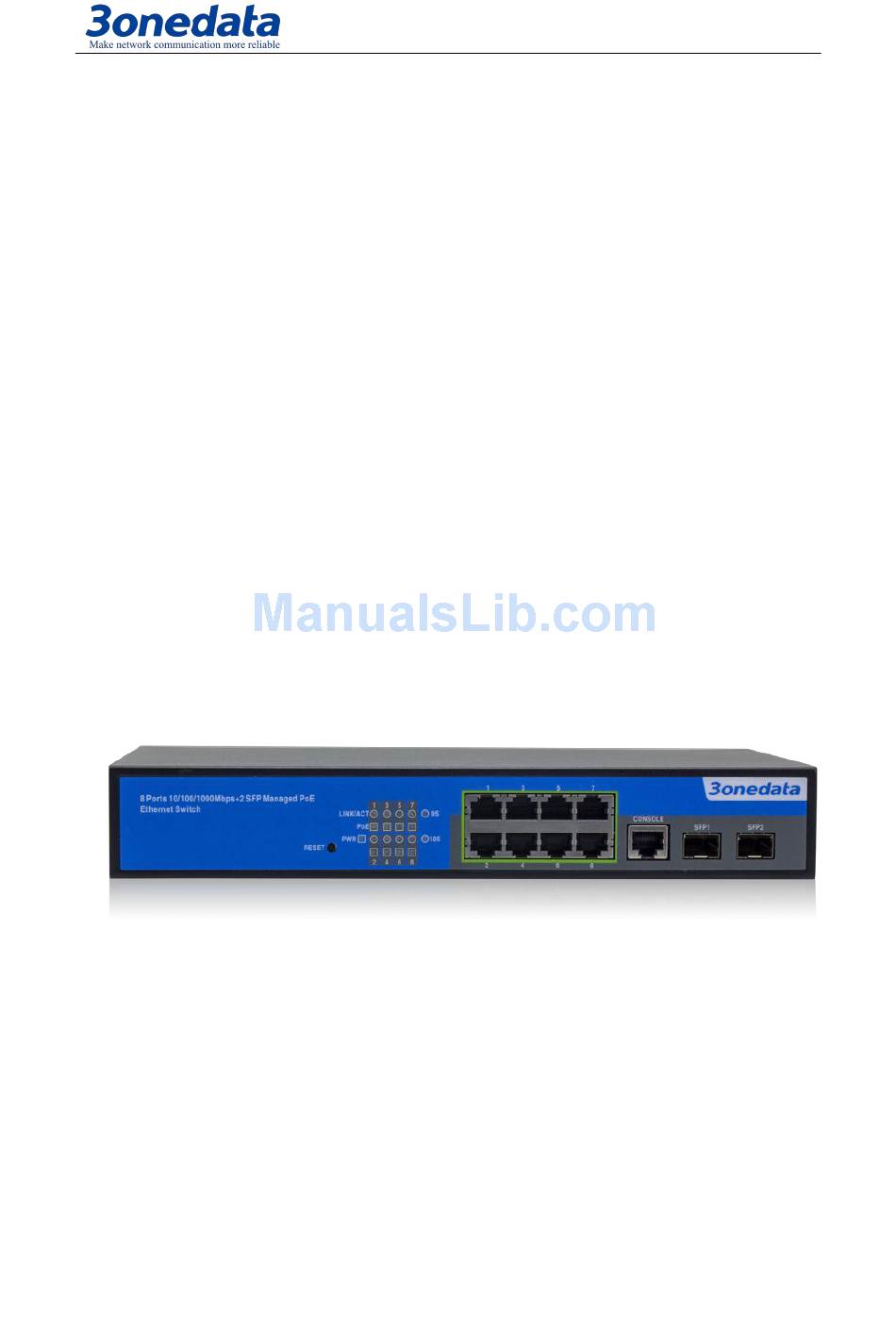

PS5010G-2GS-8PoE User Manual
PS5010G-2GS-8PoE
Managed Full Gigabit
Industrial Ethernet PoE Switch

User Manual

Version 1.0, 2017.8.29

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS5010G-2GS-8PoE and is the answer not in the manual?

Questions and answers

Related Manuals for 3onedata PS5010G-2GS-8PoE

Summary of Contents for 3onedata PS5010G-2GS-8PoE

  • Page 1: User Manual

    PS5010G-2GS-8PoE User Manual PS5010G-2GS-8PoE Managed Full Gigabit Industrial Ethernet PoE Switch User Manual Version 1.0, 2017.8.29...

  • Page 2: Table Of Contents

    PS5010G-2GS-8PoE User Manual Table of Contents Chapter 1 Product Introduction................4 1.1 Product Overview..................4 1.2 Features......................4 1.3 External Component Description..............5 1.3.1 Front Panel......................5 1.3.2 Rear Panel......................6 1.4 Package Contents..................6 2.1 Installation.......................8 2.1.1 Desktop Installation....................8 2.1.2 Rack-mountable Installation in 11-inch Cabinet..........
  • Page 3 PS5010G-2GS-8PoE User Manual 4.4.2.2 Tracert..........................37 4.4.2.3 Cable test........................38 4.4.3 ACL.........................38 4.5 POE....................... 40 4.5.1 POE Config......................41 4.5.1.1 Management........................41 4.5.1.2 Temperature distribution....................41 4.5.2 POE Port Config....................42 4.5.3 POE Delay Config....................43 4.6 STP........................44 4.6.1 MSTP region......................44 4.6.2 STP bridge......................45 4.7 DHCP relay....................48...
  • Page 4 PS5010G-2GS-8PoE User Manual 4.11.1.4 SSH login........................76 4.10.1.5 Telnet login........................77 4.11.1.6 System log........................77 4.11.2 System upgrade....................79 4.11.3 Config management..................80 4.11.3.1 Current configuration....................80 4.11.3.2 Configuration backup....................82 4.10.3.3 Restore factory configuration..................83 4.11.4 Config save......................84 4.11.5 Administrator privileges..................84 4.11.6 Info collect......................

  • Page 5: Chapter 1 Product Introduction

    PS5010G-2GS-8PoE User Manual Chapter 1 Product Introduction Congratulations on your purchasing of the PoE Web Smart Ethernet Switch. Before you install and use this product, please read this manual carefully for full exploiting the functions of this product . 1.1 Product Overview This is a new generation designed for high security and high performance network the second layer switch.

  • Page 6: External Component Description

    PS5010G-2GS-8PoE User Manual 1.3 External Component Description 1.3.1 Front Panel The front panel of the Switch consists of 8 x 10/100/1000Mbps RJ-45 ports, 1x CONSOLE port, 2 x SFP ports, 1 x RESET button and a series of LED indicators as shown as below.

  • Page 7: Rear Panel

    PS5010G-2GS-8PoE User Manual COLOR STATUS STATUS DESCRIPTION Power On Green Power Off A device is connected to the port 10/100M: Orange LINK/ACT/ A device is disconnected to the port (1-8) 1000M: Green Flashing Sending or receiving data A Powered Device is connected to the port,...
  • Page 8 PS5010G-2GS-8PoE User Manual One PoE Web Smart Ethernet Switch.  Four rubber feet, two mounting ears and eights screws.  One AC power cord.   One User Manual.

  • Page 9: Installation

    PS5010G-2GS-8PoE User Manual Chapter 2 Installing and Connecting the Switch This part describes how to install your PoE Ethernet Switch and make connections to it. Please read the following topics and perform the procedures in the order being presented. 2.1 Installation Please follow the following instructions in avoid of incorrect installation causing device damage and security threat.

  • Page 10: Power On The Switch

    PS5010G-2GS-8PoE User Manual use the screws provided with the equipment rack to mount the Switch on the rack and tighten it. Figure 5 - Rack Installation 2.1.3 Power on the Switch The Switch is powered on by the AC 100-240V 50/60Hz internal high-performance power supply.
  • Page 11 PS5010G-2GS-8PoE User Manual 30W each port, it can make PD devices, such as internet phone, network camera, wireless access point work.You only need to connect the Switch PoE port directly connected to the PD port by network cable.

  • Page 12: Chapter 3 How To Login The Switch

    PS5010G-2GS-8PoE User Manual Chapter 3 How to Login the Switch 3.1 Switch to End Node Use standard Cat.5/5e Ethernet cable (UTP/STP) to connect the Switch to end nodes as described below. Switch ports will automatically adjust to the characteristics (MDI/MDI-X, speed, duplex) of the device to which is connected.
  • Page 13 PS5010G-2GS-8PoE User Manual Figure 7- Login Windows 5. Switching language to english .Enter the Username and Password (The factory default Username is admin and Password is admin), and then click “LOGIN” to log in to the Switch configuration window as below.
  • Page 14 PS5010G-2GS-8PoE User Manual...

  • Page 15: Chapter 4 Switch Configuration

    PS5010G-2GS-8PoE User Manual Chapter 4 Switch Configuration The Web Smart Ethernet Switch Managed switch software provides rich layer 2 functionality for switches in your networks. This chapter describes how to use Web-based management interface(Web UI) to this switch configure managed switch software features.
  • Page 16 PS5010G-2GS-8PoE User Manual 【parameter description】 parameter description VLAN ID VLAN number, 8GE default VLAN 1 VLAN name VLAN mark Manage IP Manage the IP address of the VLAN device name Switch name Manage VLAN Switches management in use of the VLAN 【instructions】...
  • Page 17 PS5010G-2GS-8PoE User Manual 2) click“next step” button, into other settings, such as:manage ip address set as 192.168.2.11, device name set as switch-123, default gateway with the dns server set as 172.16.1.241.

  • Page 18: Port

    PS5010G-2GS-8PoE User Manual Use 192.168.2.11 to log in, set a new password for 1234 . 4.2 PORT In the navigation bar to select “PORT”, You may conduct basic config, port aggregation, port mirroring , port limit and port isolation. 4.2.1 Basic config In the navigation bar to select “PORT>basic config”, For panel port to port described ,...
  • Page 19 PS5010G-2GS-8PoE User Manual 【parameter description】 parameter description port Select the current configuration port number port status Choose whether to close link port flow control Whether open flow control Can choose the following kinds: Aggregation port speed 10 M 100 M...

  • Page 20: Port Aggregation

    PS5010G-2GS-8PoE User Manual and port state. 4.2.2 Port aggregation In the navigation bar to select “PORT>port aggregation”, In order to expand the port bandwidth or achieve the bandwidth of the redundancy backup, the following picture: 【parameter description】 parameter description 8 GE switch can be set up eight link trunk group, group_1 to...

  • Page 21: Port Mirroring

    PS5010G-2GS-8PoE User Manual 【Configuration example】 Such as: set the port 7, 8, for aggregation port 1, lets this aggregation port 1 connected to other switch aggregation port 1 to build switch links . 4.2.3 Port mirroring In the navigation bar to select “PORT>port mirroring”, Open port mirror feature, All...

  • Page 22: Port Rate-Limit

    PS5010G-2GS-8PoE User Manual 【parameter description】 parameter description Source port To monitor the port in and out of flow Set destination port, All packets on the source port are copied and Destination port forwarded to the destination port Mirror group Range :1-4 【instructions】...
  • Page 23 PS5010G-2GS-8PoE User Manual To port output, input speed limit, the following picture: 【parameter description】 parameter description Set port input speed Input speed limit Set port output speed Output speed limit 【instructions】 1 Mbit/s = 1000 Kbit/s = 1000 / 8 KB/s = 125 KB/s . That is, the theoretical rate of 1M bandwidth is125KB/s .

  • Page 24: Storm Control

    PS5010G-2GS-8PoE User Manual 4.2.5 Storm control In the navigation bar to select “PORT>Storm control”, To port storm control config, the following picture: 【parameter description】...

  • Page 25: Port Isolation

    PS5010G-2GS-8PoE User Manual parameter description Broadcast Storm suppression value of the broadcast packets suppression value Multicast suppression Storm suppression value of the multicast packets value Unicast suppression Storm suppression value of the unicast packets value 【instructions】 1 Mbit/s = 1000 Kbit/s = 1000 / 8 KB/s = 125 KB/s . That is, the theoretical rate of 1M bandwidth is125KB/s .
  • Page 26 PS5010G-2GS-8PoE User Manual 【parameter description】 parameter description Source port Choose a port, to configure the isolated port Port will be isolated Isolated port 【instructions】 Open port isolation function, All packets on the source port are not forwarded from the isolated port, the selected ports are isolated.

  • Page 27: Vlan

    PS5010G-2GS-8PoE User Manual 4.3 VLAN In the navigation bar to select“VLAN”, You can manage the VLAN config, Trunk Settings and Hybrid Settings , the following picture: 4.3.1 VLAN config In the navigation bar to select“VLAN config”, Vlans can be created and set the port to the VLAN (port default state for the access mode) , the following picture: 【parameter description】...

  • Page 28: Trunk-Port Setting

    PS5010G-2GS-8PoE User Manual 【instructions】 Management VLAN, the default VLAN cannot be deleted. Add ports to access port, port access mode can only be a member of the VLAN. 【Configuration example】 Such as: connect switches pc1, pc2 couldn't ping each other, will be one of the PC connection port belongs to a VLAN 2 .
  • Page 29 PS5010G-2GS-8PoE User Manual Allowing vlan Can set up multiple 【instructions】 Native VLAN: as a Trunk, the mouth will belong to a Native VLAN. The so-called Native VLAN, is refers to UNTAG send or receive a message on the interface, is considered belongs to the VLAN.

  • Page 30: Hybrid-Port Setting

    PS5010G-2GS-8PoE User Manual 4.3.3 Hybrid-port setting In the navigation bar to select“VLAN config>hybrid-port setting”, Can set the port to take the tag and without the tag , the following picture: 【instructions】 Hybrid port to packet: Receives a packet, judge whether there is a VLAN information: if there is no play in port...
  • Page 31 PS5010G-2GS-8PoE User Manual This system e0/1 and the receive system e0/2 PC can be exchanged, but when each data taken from a VLAN is different. Data from the pc1, by inter0/1 pvid VLAN10 encapsulation VLAN10 labeled into switches, switch found system e0/2 allows 10 data through the VLAN, so the data is forwarded to the system e0/2, because the system e0/2 VLAN is untagged 10, then switches at this time to remove packet VLAN10 tag, in the form of ordinary package sent to pc2, pc1 - >...

  • Page 32: Fault/Safety

    PS5010G-2GS-8PoE User Manual 4.4 Fault/Safety In the navigation bar to select“fault/safety”, you can set Anti attack、Channle detection and ACL configuration . 4.4.1 Anti attack 4.4.1.1 DHCP In the navigation bar to select“fault/safety>anti attack>DHCP”, Open the DHCP anti-attack function, intercepting counterfeit DHCP server and address depletion attack packets ban kangaroo DHCP server, the following picture: 【instructions】...
  • Page 33 PS5010G-2GS-8PoE User Manual Set the connection router 8 ports for trust, then 6 port is set to the prohibit. 3.Verify source mac F0:DE:F1:12:98:D2, set server ip address to 192.168.2.1 4.Set option82 information...

  • Page 34: Dos

    PS5010G-2GS-8PoE User Manual 5.The port 7 for binding 4.4.1.2 DOS In the navigation bar to select“fault/safety>anti attack>DOS”, Open the anti DOS attack function, intercept Land attack packets, illegal TCP packets, to ensure that the device or server to provide normal service to legitimate users., the following picture: 【instructions】...

  • Page 35: Ip Source Guard

    PS5010G-2GS-8PoE User Manual 4.4.1.3 IP source guard In the navigation bar to select“fault/safety>anti attack>ip source guard”, Through the source port security is enabled, on port forwarding the packet filter control, prevent illegal message through the port, thereby limiting the illegal use of network resources, improve the safety of the port, the following picture: 【instructions】...

  • Page 36: Ip/Mac/Port

    PS5010G-2GS-8PoE User Manual 4.4.1.4 IP/Mac/Port In the navigation bar to select“fault/safety>anti attack>IP/Mac/Port”, Automatically detect the port based IP address, MAC address of the mapping relationship, and then realize the function of a key binding, the following picture: 【instructions】 A bond must be bound before the binding to enable the switch to open, And if you want to access shall be binding and switch the IP address of the same network segment .

  • Page 37: Channel Detection

    PS5010G-2GS-8PoE User Manual Can check the delete option. 4.4.2 Channel detection 4.4.2.1 Ping In the navigation bar to select“fault/safety> channel detection>ping”, Use ping function to test internet connect and host whether to arrive. The following picture :...

  • Page 38: Tracert

    PS5010G-2GS-8PoE User Manual 【parameter description】 parameter description destination IP address Fill in the IP address of the need to detect Timeout period Range of 1 to 10 Repeat number Testing number 【instructions】 Use ping function to test internet connect and host whether to arrive.

  • Page 39: Cable Test

    PS5010G-2GS-8PoE User Manual 【Configuration example】 Such as: Tracert connect the IP address of the PC . 4.4.2.3 Cable test In the navigation bar to select“fault/safety> channel detection>cable test”, Can detect connection device status , the following picture: 【Configuration example】 4.4.3 ACL In the navigation bar to select“fault/safety>ACL”, Can be applied to port ACL rules and...
  • Page 40 PS5010G-2GS-8PoE User Manual 【instruction】 The ACL rules are sequenced, row in front of the match will be priority rule. Many, if the strategy items operating time is relatively longer. Basic principles: 1, according to the order, as long as there is a meet, will not continue to find.

  • Page 41: Poe

    PS5010G-2GS-8PoE User Manual 4.5 POE In the navigation bar to select”POE”, you can set to the POE Config , POE Port Config and POE Delay Config configuration.

  • Page 42: Poe Config

    PS5010G-2GS-8PoE User Manual 4.5.1 POE Config 4.5.1.1 Management In the navigation bar to select”POE>POE Config>Management”, you can set POE configuration and status information, As follows. 【parameter description】 parameter description Alarm power Configuration alarm threshold Reserved power Configuration reserved power Alarm notification Configure alert notification status 【instruction】...

  • Page 43: Poe Port Config

    PS5010G-2GS-8PoE User Manual 【parameter description】 parameter description Alarm threshold Configuration temperature alarm threshold, range 70-149 【instruction】 Receiving Trap notification required to open the Snmp, and set the trap target host. 【Configuration example】 Such as:The 1 chip alarm threshold is set to 90℃.

  • Page 44: Poe Delay Config

    PS5010G-2GS-8PoE User Manual Mode Detection Power supply mode for configuration port detection 【instruction】 Receiving Trap notification required to open the Snmp, and set the trap target host. 【Configuration example】 Such as:The 8 port can be opened, the maximum power of 23 W, the detection mode is AF, the priority is high.

  • Page 45: Stp

    PS5010G-2GS-8PoE User Manual 【Configuration example】 Such as:Set port 1 Port restart time is 3 days, the port delay time is 20 seconds. 4.6 STP In the navigation bar to select“STP”, you can set to the MSTP region and STP bridge configuration.

  • Page 46: Stp Bridge

    PS5010G-2GS-8PoE User Manual parameter description Region name Configure the region name Revision level Parameter configuration revision level Instance ID Select configuration instance ID VLAN ID Mapping of the VLAN configuration instance 【instruction】 An instance can only be mapped to a VLAN, instance and VLAN is a one-to-one relationship.
  • Page 47 PS5010G-2GS-8PoE User Manual 【parameter description】 parameter description inst-priority Whether open instance priority setting Instance ID Select the created instance id is configured enable Whether to open the STP bridge function Priority setting bridge example, the default Bridge priority instance bridge priority for 32768...
  • Page 48 PS5010G-2GS-8PoE User Manual (2) Enable STP or switch mode would spend 2 times of the forward delay time. 【Configuration example】 Such as:1)Open the STP, configuration has to create an instance of the priority, configuration time parameters, set the pattern to MSTP .

  • Page 49: Dhcp Relay

    PS5010G-2GS-8PoE User Manual 4.7 DHCP relay In the navigation bar to select“DHCP relay”, you can set to the DHCP relay and option82. 4.7.1 DHCP relay In the navigation bar to select“DHCP relay”, Open the DHCP relay function, set up and view the relay server IP address and its status.the following picture.

  • Page 50: 0Ption82

    PS5010G-2GS-8PoE User Manual 4.7.2 0ption82 In the navigation bar to select“DHCP relay>option82”, can set to OPTION82circuit control、proxy remote 、ip address.the following picture: 【parameter description】 parameter description VLAN id the DHCP request message in the VLAN, value range is 1 ~...

  • Page 51: Qos

    PS5010G-2GS-8PoE User Manual 4.8 QoS In the navigation bar to select“QoS”, you can set to the Remark 、 queue config and mapping the queue. 4.8.1 Remark In the navigation bar to select“QoS>Remark”, According to the rules for port traffic bag...
  • Page 52 PS5010G-2GS-8PoE User Manual 【parameter description】 parameter parameter By setting the rule of heavy tag index number, the current switch Rule index can be set up 32 rule Choose always said - match the match, all the data for tags Choose can be set to equal matching rules, comply with the rules...

  • Page 53: Queue Config

    PS5010G-2GS-8PoE User Manual 4.8.2 Queue config In the navigation bar to select“ QoS>queue config”, Can be set up queue scheduling policy .the following picture: 【parameter description】 parameter description Can choose four kinds of modes: RR round-robin scheduling SP absolute priority scheduling...

  • Page 54: Mapping The Queue

    PS5010G-2GS-8PoE User Manual WRR weighted round-robin scheduling WFQ weighted fair scheduling Set the weights of each queue, they will be in proportion to occupy WRR-weights the bandwidth to send data 【instruction】 Queue 7 can not for 0. 【Configuration example】 Such as: set the scheduling strategy for WRR, weight value respectively, 10, 11, 12, 12, 14, 15, 16, 17.

  • Page 55: Differential Service Class Mapping

    PS5010G-2GS-8PoE User Manual 4.8.3.2 Differential service class mapping In the navigation bar to select“QoS>mapping the queue>differential service class mapping”, Differential service can be mapped to the corresponding service categories.the following picture: 【parameter description】 parameter description Server list DSCP field has seven (0-63) is divided into four tables...

  • Page 56: Port To Service Class Mapping

    PS5010G-2GS-8PoE User Manual Such as: the DSCP value of 3, 12, 23 mapping to cos 5 . 4.8.3.3 Port to service class mapping In the navigation bar to select“QoS>mapping the queue>port to service class mapping”, Port can be mapped to the corresponding service categories.the following picture: 【parameter description】...

  • Page 57: Address Table

    PS5010G-2GS-8PoE User Manual 【Configuration example】 Such as:port 4、5、6 respectively cos4、cos5、cos6. 4.9 Address table In the navigation bar to select“Address table”, you can set to MAC add and delete 、 MACstudy and aging and MAC address filtering.

  • Page 58: Mac Add And Delete

    PS5010G-2GS-8PoE User Manual 4.9.1 Mac add and delete In the navigation bar to select“Address table>Mac add and delete”, You can add static Mac and delete Mac and view to the current of the Mac address table.the following picture: 【parameter description】...

  • Page 59: Mac Study And Laging

    PS5010G-2GS-8PoE User Manual 2)clear port 6 static Mac addresses. 4.9.2 Mac study and laging In the navigation bar to select“address table>Mac study and laging”, Can be set up port Mac address study limit and Mac address aging time . the following picture:...
  • Page 60 PS5010G-2GS-8PoE User Manual 【parameter description】 parameter description Mac address Range 0-8191, default 8191 Mac address study limit Default 300 【Configuration example】 Such as: 1) setting port 2, 3, 4, 5 address study limit for 2000 . 2) will be dropped or learn the Mac address of the port equipment after 2 minutes...

  • Page 61: Mac Address Filtering

    PS5010G-2GS-8PoE User Manual 4.9.3 Mac address filtering In the navigation bar to select“address table>Mac address table”, Can be filtered according to the condition does not need the Mac address. the following picture: 【parameter description】 parameter description Mac address Can not add multicast Mac address...

  • Page 62: Snmp Config

    PS5010G-2GS-8PoE User Manual 4.10.1 Snmp config 4.10.1.1 Snmp config In the navigation bar to select“Snmp >Snmp config”, you can Snmp function enable.the following picture: 【instruction】 The SNMP function must be turned on in the configuration RMON, otherwise it will be configured to fail.

  • Page 63: View Config

    PS5010G-2GS-8PoE User Manual 【parameter description】 parameter description Community string, is equal to the NMS and Snmp agent group communication between the password Read-only: specify the NMS (Snmp host) of MIB variables can only be read, cannot be modified Read-only can write: specify the NMS (Snmp host) of MIB...

  • Page 64: Group Config

    PS5010G-2GS-8PoE User Manual 【parameter description】 parameter description View name Wiew mane include Indicate the MIB object number contained within the view exclude Indicate the MIB object son number was left out of view MIB subtree OID View the associated MIB object, is a number of MIB...

  • Page 65: User Config

    PS5010G-2GS-8PoE User Manual parameter description Group name Group name Attestation not only encryption: this group of users transmission of the message need to verify the data don't need to confidential No authentication encryption: this group of users' messages don't need to verify data transmission also does not need to be...
  • Page 66 PS5010G-2GS-8PoE User Manual following picture: 【parameter description】 parameter description User name, range 1-16 User name Attestation not only encryption: this group of users transmission of the message need to verify the data don't need to confidential No authentication encryption: this group of users' messages...

  • Page 67: Trap

    PS5010G-2GS-8PoE User Manual 4.10.1.6 Trap In the navigation bar to select“Snmp>Snmp config>Trap”, Can specify sent the trap messages to Snmp host (NMS). the following picture: 【parameter description】 parameter description Destination ip Snmp host ipv4 address address Security name Snmp user name V1、V2、V3...

  • Page 68: Rmon Config

    PS5010G-2GS-8PoE User Manual 4.10.2 Rmon config 4.10.2.1 Statistics group In the navigation bar to select“Snmp>Rmon config>statistics group”, Set an Ethernet interface statistics .the following picture: 【parameter description】 parameter description index The index number, the value range of statistical information table is 1 ~ 65535...

  • Page 69: History Group

    PS5010G-2GS-8PoE User Manual 【Configuration example】 Such as: set up monitoring Ethernet port after 4 to check the data. 4.10.2.2 History group In the navigation bar to select“Snmp>Rmon config>history group”, Record the history of an Ethernet interface information. the following picture.

  • Page 70: Event Group

    PS5010G-2GS-8PoE User Manual seconds owner Set the table creator, range: 1 ~ 30 characters of a string 【instruction】 At the time of configuration Rmon Snmp functions must be open, otherwise the prompt dialog box will appear. 【Configuration example】 Such as: monitor Ethernet port 4 historical information.

  • Page 71: Alarm Group

    PS5010G-2GS-8PoE User Manual 【Configuration example】 Such as: create an event to trigger 345, the system sends the trap message and log . 4.10.2.4 Alarm group In the navigation bar to select“ Snmp>Rmon config>alarm group”, define alarm group.the following picture. 【parameter description】...

  • Page 72: System

    PS5010G-2GS-8PoE User Manual The latest sampling Sampling type for change value sampling, extraction of the arrival of the sampling time is variable in the change of the sampling interval value The alarm threshold Set the upper limit the parameter values...

  • Page 73: System Config

    PS5010G-2GS-8PoE User Manual 4.11.1 System config 4.11.1.1 System settings In the navigation bar to select“SYSTEM>system config>System settings”, Basic information set switch. the following picture: 【parameter description】 parameter description Device name switch name Manage VLAN Switches use VLAN management Manage ip...
  • Page 74 PS5010G-2GS-8PoE User Manual 2) insert the PC interface 9 or 10 ports, set up the management IP for 192.168.2.12, device name is yoyo, timeout for 20 minutes , Jumboframe for 5000.

  • Page 75: System Restart

    PS5010G-2GS-8PoE User Manual 3) use 192.168.1.12 logging in, sets the system time . 4.11.1.2 System restart In the navigation bar to select“SYSTEM>system config>system restart”, equipment can be restarted. the following picture:...

  • Page 76: Password Change

    PS5010G-2GS-8PoE User Manual 【instruction】 Click the button to restart the switch.The restart process may take 1 minute. Please wait patiently. The page will be refreshed automatically after device restart. 【Configuration example】 Such as:click“restart”button. 4.11.1.3 Password change In the navigation bar to select“SYSTEM>system config>password change”, The...

  • Page 77: Ssh Login

    PS5010G-2GS-8PoE User Manual 【instruction】 1. If you set a new Web login password, then log in again after seting the new password. 2. Password can not contain Chinese, full-width characters, question marks and spaces. 3.If forget the password reset, can be reset in the console.

  • Page 78: Telnet Login

    PS5010G-2GS-8PoE User Manual 4.10.1.5 Telnet login In the navigation bar to select“SYSTEM>system config>Telnet login”, Telnet open.The following picture: 【instruction】 Configure the user to be able to switch through the Telnet login device. 【Configuration example】 Such as:Telnet open, PC Telnet functiono open, you can log in .
  • Page 79 PS5010G-2GS-8PoE User Manual 【parameter description】 parameter description Log switch Open and close Server ip Appoint to server address Send log level Enter the required query of characters 【instruction】 Open log switch, set up the syslog server, system log will automatically be pushed to the server.

  • Page 80: System Upgrade

    PS5010G-2GS-8PoE User Manual 4.11.2 System upgrade In the navigation bar to select“SYSTEM>system upgrade”, Optional upgrade file to upgrade. the following picture. 【instruction】 1 please confirm that the upgraded version of the same model and the same model. 2 in the upgrade process, you may encounter flash to make the page is temporarily unable...

  • Page 81: Config Management

    PS5010G-2GS-8PoE User Manual 4.11.3 Config management 4.11.3.1 Current configuration In the navigation bar to select“SYSTEM>config management>current configuration”, can import and export configuration files, the backup file. the following picture: 【instruction】 Import process can not be closed or refresh the page, or import will fail!
  • Page 82 PS5010G-2GS-8PoE User Manual 2) import configuration. 3)backup.

  • Page 83: Configuration Backup

    PS5010G-2GS-8PoE User Manual 4.11.3.2 Configuration backup In the navigation bar to select“SYSTEM>config management>configuration backup”, you can configure backup file.the following picture: 【instruction】 Operating this page should be in the current configuration page first, the backup file. 【Configuration example】 Such as:restore backup.

  • Page 84: Restore Factory Configuration

    PS5010G-2GS-8PoE User Manual 4.10.3.3 Restore factory configuration In the navigation bar to select“SYSTEM>config management>restore factory configuraton”, Can export the current configuration and restore factory configuration .the following picture: 【instruction】 Restore the factory configuration, will delete all the current configuration. If you have any useful configuration, the current system can lead the factory configuration again after the current configuration.

  • Page 85: Config Save

    PS5010G-2GS-8PoE User Manual 4.11.4 Config save In the navigation bar to select“SYSTEM>config save”, you can save current configuration.the following picture. 【instruction】 Save settings will delete all default configurations. If there are useful configurations, clickbackup Configurationsbefore save the settings. 【Configuration example】...

  • Page 86: Info Collect

    PS5010G-2GS-8PoE User Manual ordinary users. the following picture. 【instruction】 Only the admin of the super administrator can access this page is used to manage users and visitors. The user can log in the Web management system of equipment for routine maintenance.
  • Page 87 PS5010G-2GS-8PoE User Manual 【instruction】 collect useful infomation, it may take a few moment . 【Configuration example】 Such as: click on "collect" button .

  • Page 88: Appendix: Technical Specifications

    PS5010G-2GS-8PoE User Manual Appendix: Technical Specifications Hardware Features IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, Standards IEEE 802.3z, IEEE 802.3at, IEEE 802.3af, IEEE 802.1q, IEEE 802.1p 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m)

  • Page 89: Software Specification

    PS5010G-2GS-8PoE User Manual Software Specification Basic function Three layers of functional The security policy  Ethernet Setup  The ARP deception, the  ACE capacity  STP/RSTP/MSTP network cheating  ACL  Storm-Eontrol  Filtering the IP port  QoS ...
