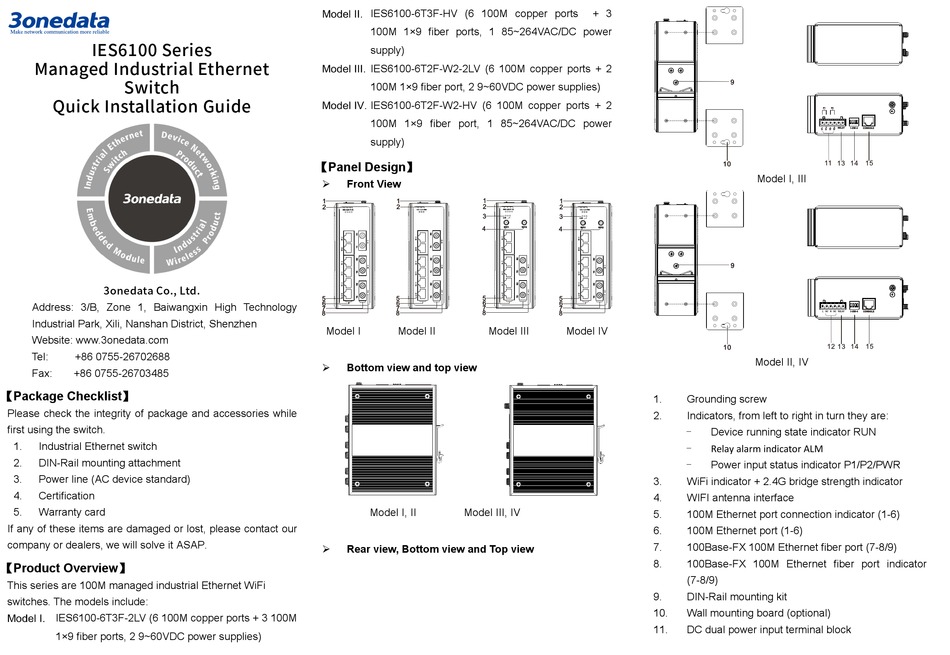

IES6100 Series
Managed Industrial Ethernet
Switch
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili, Nanshan District, Shenzhen
Website: www.3onedata.com
Tel:
+86 0755-26702688
Fax:
+86 0755-26703485
【Package Checklist】
Please check the integrity of package and accessories while
first using the switch.
1.
Industrial Ethernet switch
2.
DIN-Rail mounting attachment
3.
Power line (AC device standard)
4.
Certification
5.
Warranty card
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】
This series are 100M managed industrial Ethernet WiFi
switches. The models include:
IES6100-6T3F-2LV (6 100M copper ports + 3 100M
1×9 fiber ports, 2 9~60VDC power supplies)
IES6100-6T3F-HV (6 100M copper ports
100M 1×9 fiber ports, 1 85~264VAC/DC power
supply)
IES6100-6T2F-W2-2LV (6 100M copper ports + 2
100M 1×9 fiber port, 2 9~60VDC power supplies)
IES6100-6T2F-W2-HV (6 100M copper ports + 2
100M 1×9 fiber port, 1 85~264VAC/DC power
supply)
【Panel Design】
Front View
Model I
Model II
Model III
Bottom view and top view
Model I, II
Model III, IV
Rear view, Bottom view and Top view
+ 3
Model IV
1.
Grounding screw
2.
Indicators, from left to right in turn they are:
Device running state indicator RUN
-
Relay alarm indicator ALM
-
Power input status indicator P1/P2/PWR
-
3.
WiFi indicator + 2.4G bridge strength indicator
4.
WIFI antenna interface
5.
100M Ethernet port connection indicator (1-6)
6.
100M Ethernet port (1-6)
7.
100Base-FX 100M Ethernet fiber port (7-8/9)
8.
100Base-FX 100M Ethernet fiber port indicator
(7-8/9)
9.
DIN-Rail mounting kit
10.
Wall mounting board (optional)
11.
DC dual power input terminal block
Model I, III
Model II, IV
