3onedata IES618 Series User Manual

IES618 Series
Managed Industrial Ethernet Switch
User Manual
3onedata Co., Ltd.
Add: 3/B, Zone 1, Baiwangxin High Technology Industrial
park, Nanshan District, Shenzhen, 518108 China
Tel: +86-755-26702668
Fax: +86-755-26703485
E-mail: sales@3onedata.com
Website: www.3onedata.com
【Summarize】

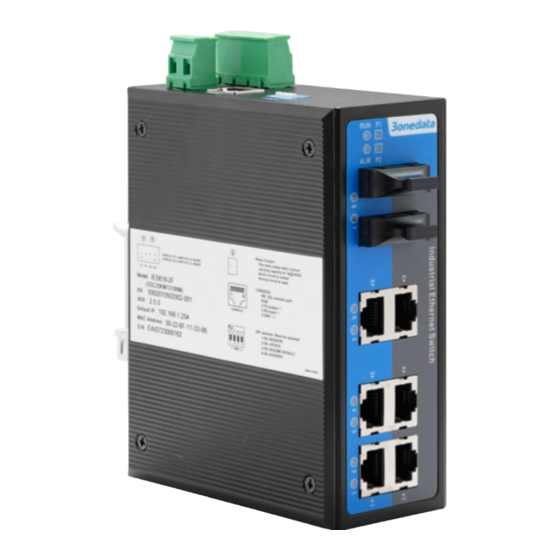

IES618 series are industrial grade,
redundancy Ethernet switches. This series of switches can
provide eight Fast Ethernet ports, which can support up to
four optical ports optional. It's unique SW-Ring redundant
ring technology for your Ethernet network to bring intelligent
redundancy; standard industrial design, to meet a variety of
industrial site requirements; all components selected
industrial grade, to achieve a higher reliability. This series of
switches using the industry's excellent network solutions,
providing 2.0G non-blocking backplane bandwidth. The
product is equipped with fanless, low power, industrial
design, able to adapt to harsh industrial environments, -40 ~
75 ℃ operating temperature range, to meet a variety of
industrial site requirements, to provide economic solutions.
【Packing list】
The industrial Ethernet switch is shipped with the following
items. If any of these items are missing or damaged, please
contact your customer service representative for assistance.
Industrial Ethernet switch ⅹ 1
User manual ⅹ 1
Documentation and software CD ⅹ 1
DIN-Rail mounting kit ⅹ 1
Warranty card ⅹ 1
Qualify certificate ⅹ 1
【Feature】
Supports IEEE802.3, IEEE802.3u,
IEEE802.1Q, IEEE802.1p,
IEEE802.3ad
Supports up to 8-port 10/100Base-T(X), up to 4-port
100Base-FX SC/FC/ST optional
SW-Ring ring network patent technology (Fault
recovery time<20ms)
Supports RSTP
Supports SNMP V1 / V2c function
Supports IEEE 802.1Q VLAN function
Supports IEEE 802.1p QOS function
- 1 -
Supports IGMP snooping
Supports static multicast, port trunking and port mirror
managed and
functions
Supports port bandwidth limit to optimize bandwidth
utilization
Supports WEB, Telnet, CLI management
Supports redundant DC power input, 1 relay alarm
output
Supports IP40 grade protection, DIN rail mounting
Supports working temperature: -40 ~ 75 ℃
Supports storage temperature: -40 ~ 85 ℃

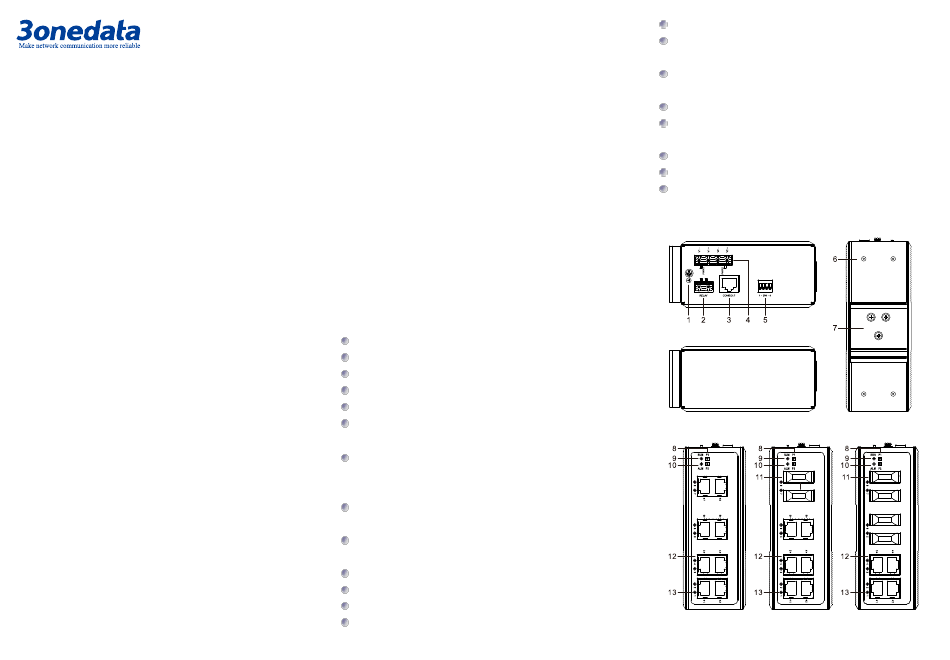

【Panel layout】
Vertical view and bottom view
Front view
IEEE802.3x,
IEEE802.1D/W,
IES618
Rear view
IES618-2F IES618-4F
