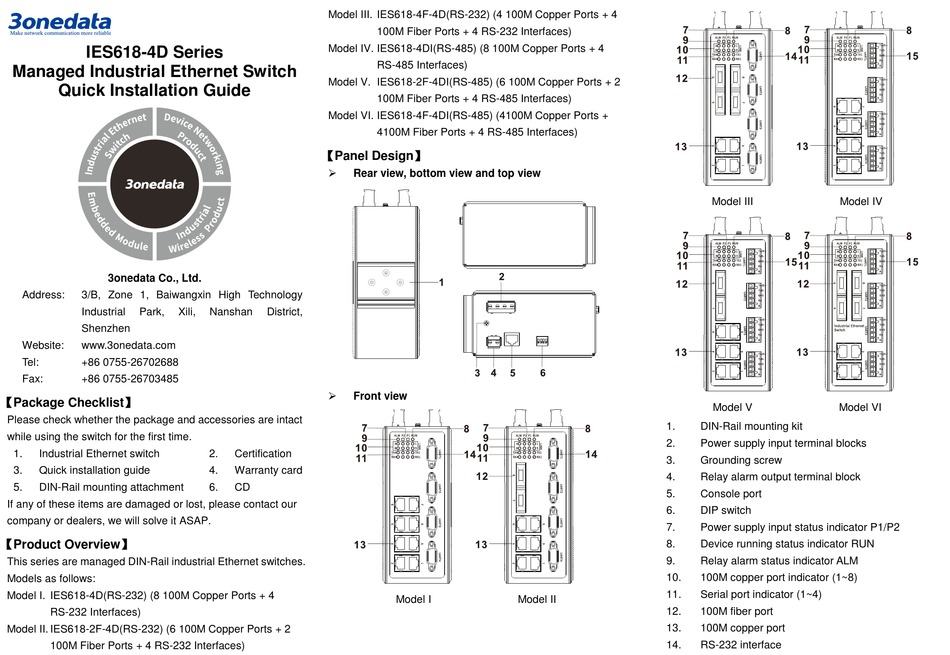

3onedata IES618-4D Series Quick Installation Manual

IES618-4D Series
Managed Industrial Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili,
Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485

【Package Checklist】

Please check whether the package and accessories are intact
while using the switch for the first time.
1. Industrial Ethernet switch
3. Quick installation guide
5. Din-Rail Mounting attachment
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.

【Product Overview】

This series are managed DIN-Rail industrial Ethernet switches.
Models as follows:
Model I. IES618-4D(RS-232) (8 100M Copper Ports + 4
RS-232 Interfaces)
Model II. IES618-2F-4D(RS-232) (6 100M Copper Ports + 2
100M Fiber Ports + 4 RS-232 Interfaces)
Model III. IES618-4F-4D(RS-232) (4 100M Copper Ports + 4
100M Fiber Ports + 4 RS-232 Interfaces)
Model IV. IES618-4DI(RS-485) (8 100M Copper Ports + 4
RS-485 Interfaces)
Model V. IES618-2F-4DI(RS-485) (6 100M Copper Ports + 2
100M Fiber Ports + 4 RS-485 Interfaces)
Model VI. IES618-4F-4DI(RS-485) (4100M Copper Ports +
4100M Fiber Ports + 4 RS-485 Interfaces)

【Panel Design】


Rear view, bottom view and top view
Nanshan District,

Front view
2. Certification
4. Warranty card
6. CD
Model I Model II
Model III Model IV
Model V Model VI
1. DIN-Rail mounting kit
2. Power supply input terminal blocks
3. Grounding screw
4. Relay alarm output terminal block
5. Console port
6. DIP switch
7. Power supply input status indicator P1/P2
8. Device running status indicator RUN
9. Relay alarm status indicator ALM
10. 100M copper port indicator (1~8)
11. Serial port indicator (1~4)
12. 100M fiber port
13. 100M copper port
14. RS-232 interface
