3onedata IES618 Series Quick Installation Manual

IES618 Series
Managed Industrial Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili, Nanshan District, Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485
【Package Checklist】
Please check whether the package and accessories are intact
while using the switch for the first time.
1 Industrial Ethernet 2
switch
3 CD 4
5 Certification 6
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it asap.
【Product Overview】
This series are 100M managed DIN-Rail industrial Ethernet
switches. For convenience, the products of this series adopt
the following number on the left in this guide, please affirm the
number of your product.
Model I. IES618 (8 100M copper ports, 12~48VDC dual
power supplies)

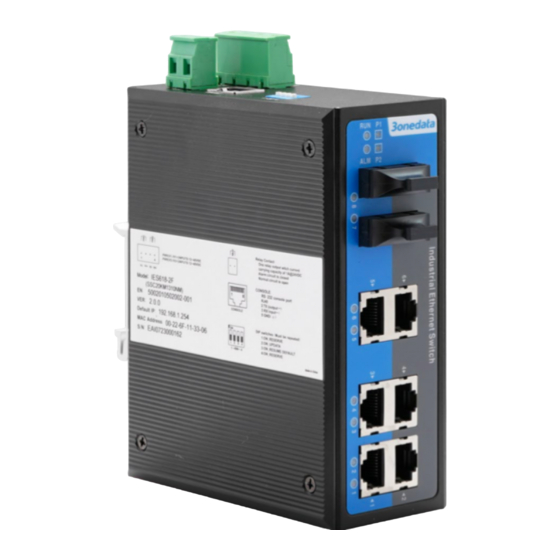

Model II. IES618-2F (6 100M copper ports + 2 100M fiber
ports, 12~48VDC dual power supplies)
Model III. IES618-4F (4 100M copper ports + 4 100M fiber
ports, 12~48VDC dual power supplies)
【Panel design】
 Top view, bottom view and rear view
 Front View
Quick installation
guide
DIN-Rail mounting
attachment
Warranty card
1.
2.
3.
Model I Model II Model III
Grounding screw
Relay alarm output terminal block
Console Port
1
4. DC dual power input terminal block
5. DIP switch
6. location hole of Wall-mounting panel
7. DIN-Rail mounting kit
8. Power input status indicator P1/P2
9. Device running indicator RUN
10. Relay alarm indicator ALM
11. 10/100Base-T(X) 100M Ethernet copper port
12. 100Base-FX 100M Ethernet fiber port
13. Ethernet port Link indicator
【Mounting Dimension】
Unit: mm
Note before mounting:
Don't place or install the device in area near water or

moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power

supply specification to avoid over-voltage damaging the
device.
The device surface temperature is high after running;

please don't directly contact to avoid scalding.
【DIN-Rail Mounting】
