C
ONFIGURING THE
• Trunk T1-T8 – These columns correspond to the eight trunks that are
supported by the switch. To assign a port to a trunk, click on the radio
button in the corresponding column, then click APPLY.
Web – Click TRUNKS, Membership. To assign a port to a trunk, click the
required trunk number, then click APPLY.

Trunk Configuration

Field Attributes
• Trunk – Indicates trunk identification.
• Speed/Duplex – Allows you to manually set the port speed and duplex
mode for all ports in the trunk.
5-28
S
WITCH

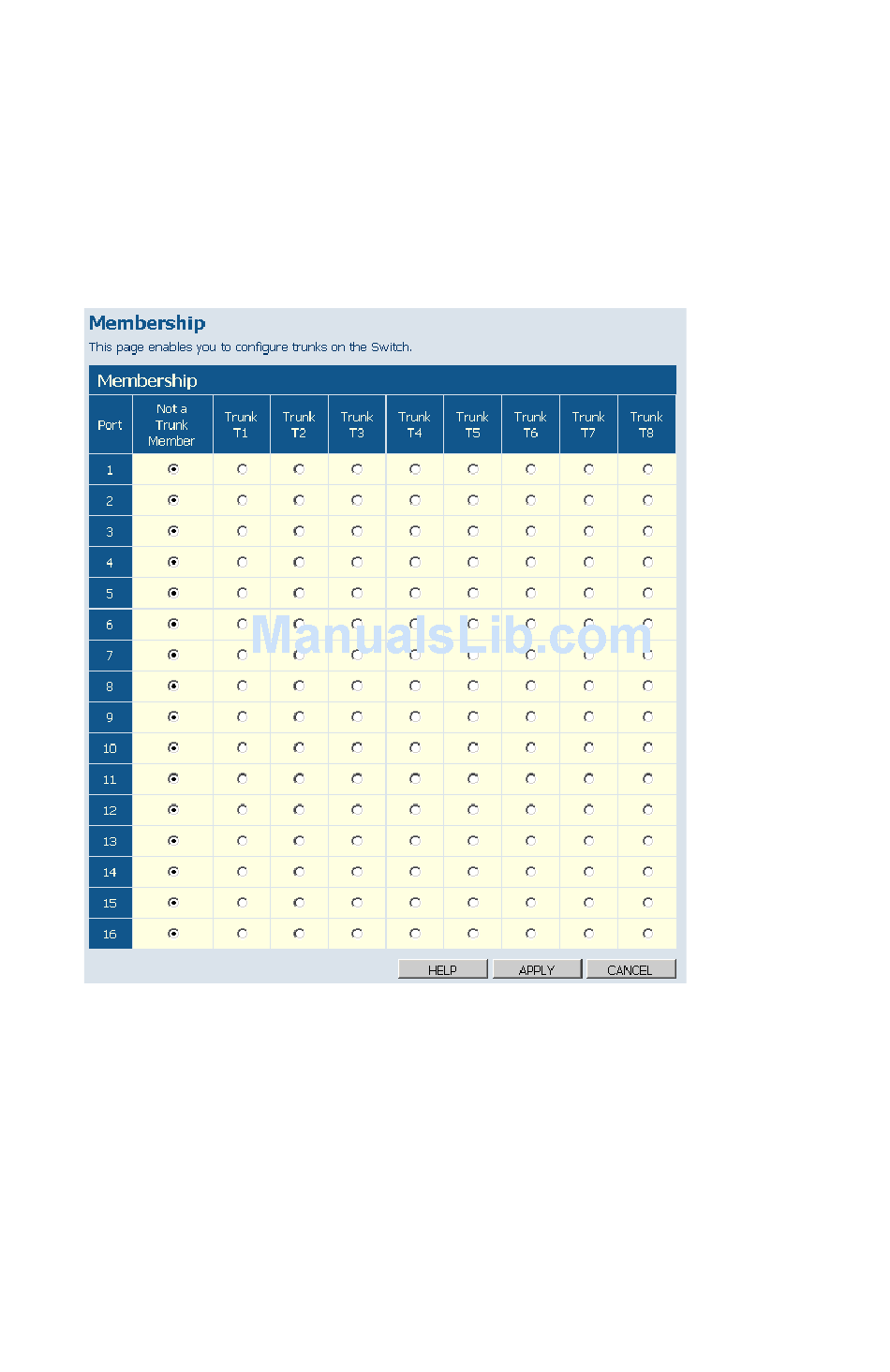

Figure 5-20 Trunk Membership
