Power Supply Socket

The power socket is located on the rear panel of the switch. The standard
power socket is for the AC power cord.

Features and Benefits

Connectivity

• 24 10/100/1000 Mbps ports for easy Gigabit Ethernet integration and
for protection of your investment in legacy LAN equipment.
• Auto-negotiation enables each RJ-45 port to automatically select the
optimum communication mode (half or full duplex) if this feature is
supported by the attached device; otherwise the port can be configured
manually.
• RJ-45 10/100/1000BASE-T ports support auto MDI/MDI-X pinout
selection.
• Unshielded (UTP) cable supported on all RJ-45 ports: Category 3 or
better for 10 Mbps connections, Category 5 or better for 100 Mbps
connections, and Category 5, 5e, 6 or better for 1000 Mbps
connections.
• IEEE 802.3-2005 Ethernet, Fast Ethernet, and Gigabit Ethernet.
100-240V ~50-60Hz 0.8A

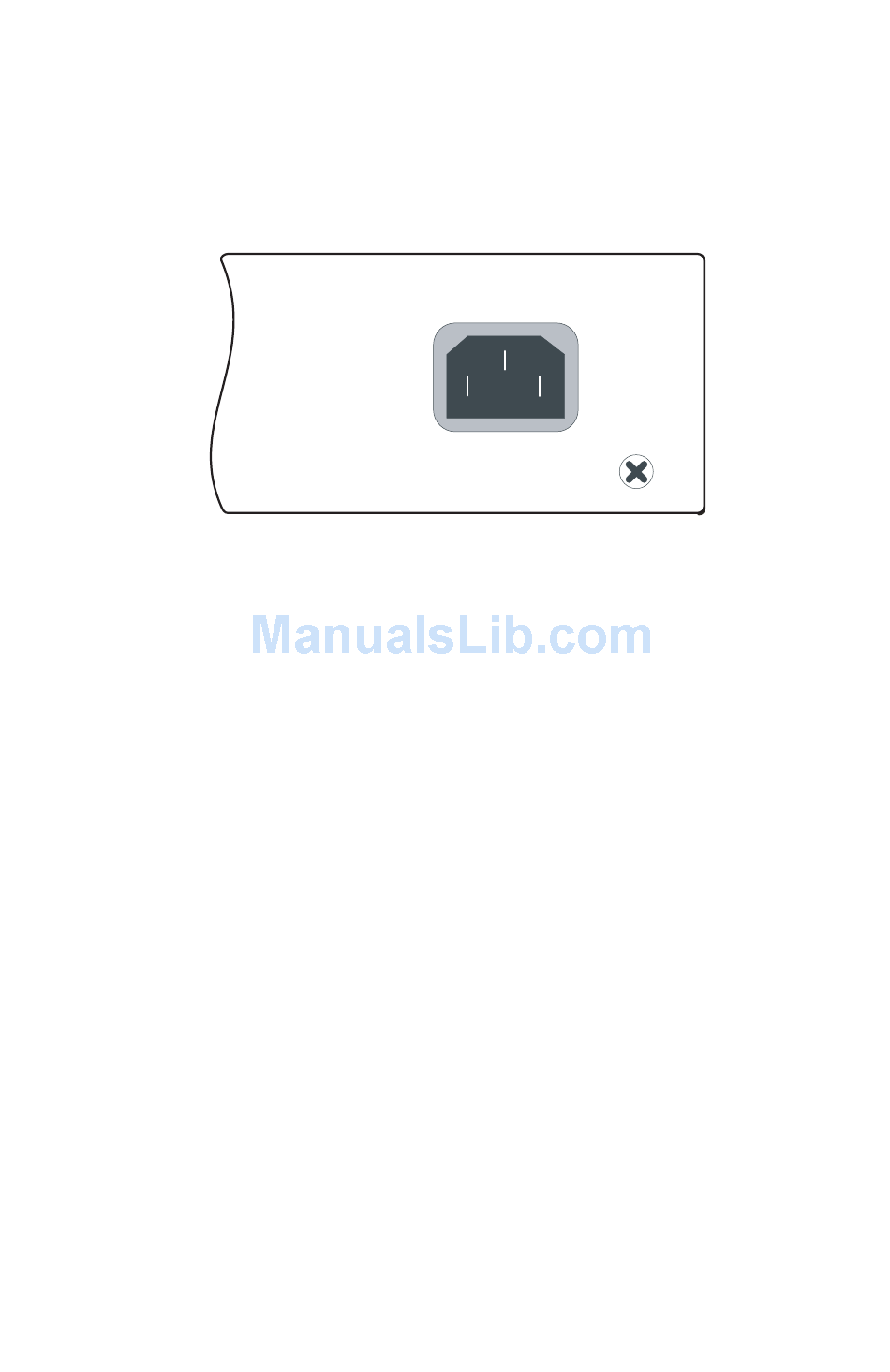

Figure 1-4 Power Supply Socket

F
EATURES AND
B
ENEFITS
1-5
