W C
EB ONFIGURATION
Web – Click QOS, Settings. In QoS Mode, select QoS Diabled, 802.1p, or
DSCP to configure the related parameters.

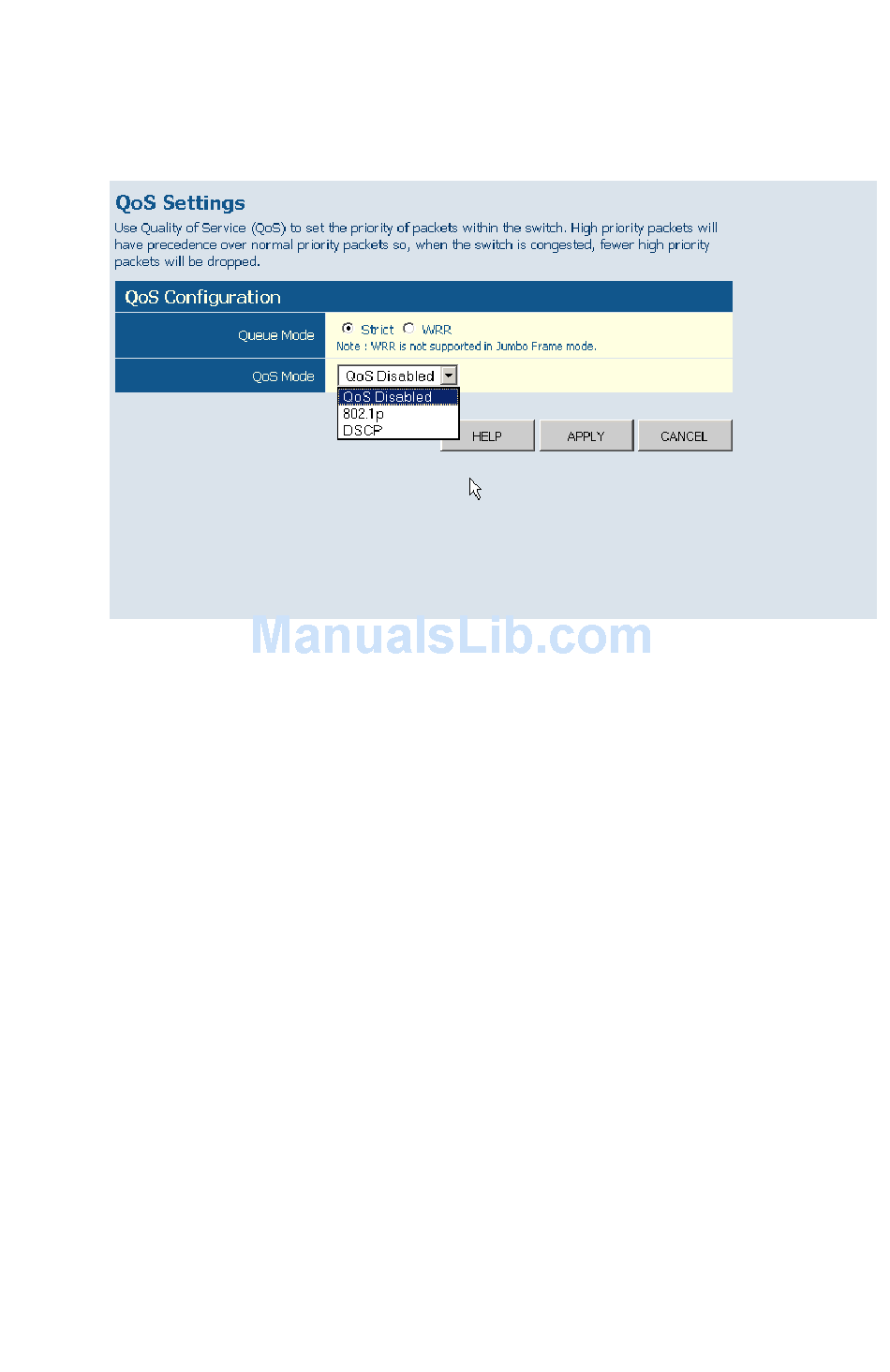

Figure 5-24 QoS Settings

Security

IP Filter
On this page, you can set up a source IP Filter on all or some ports. It is
used to block unwanted access and provide access to the network for
either a specific source IP address or a specific subnet. The IP Filter
Configuration table has one row for each port and five columns.
Field Attributes
• Port - The front-panel port-number of the port. This cannot be changed.
• Mode - Select the IP filter mode for this port.
• Disabled - Disable the source IP filter.
5-35
