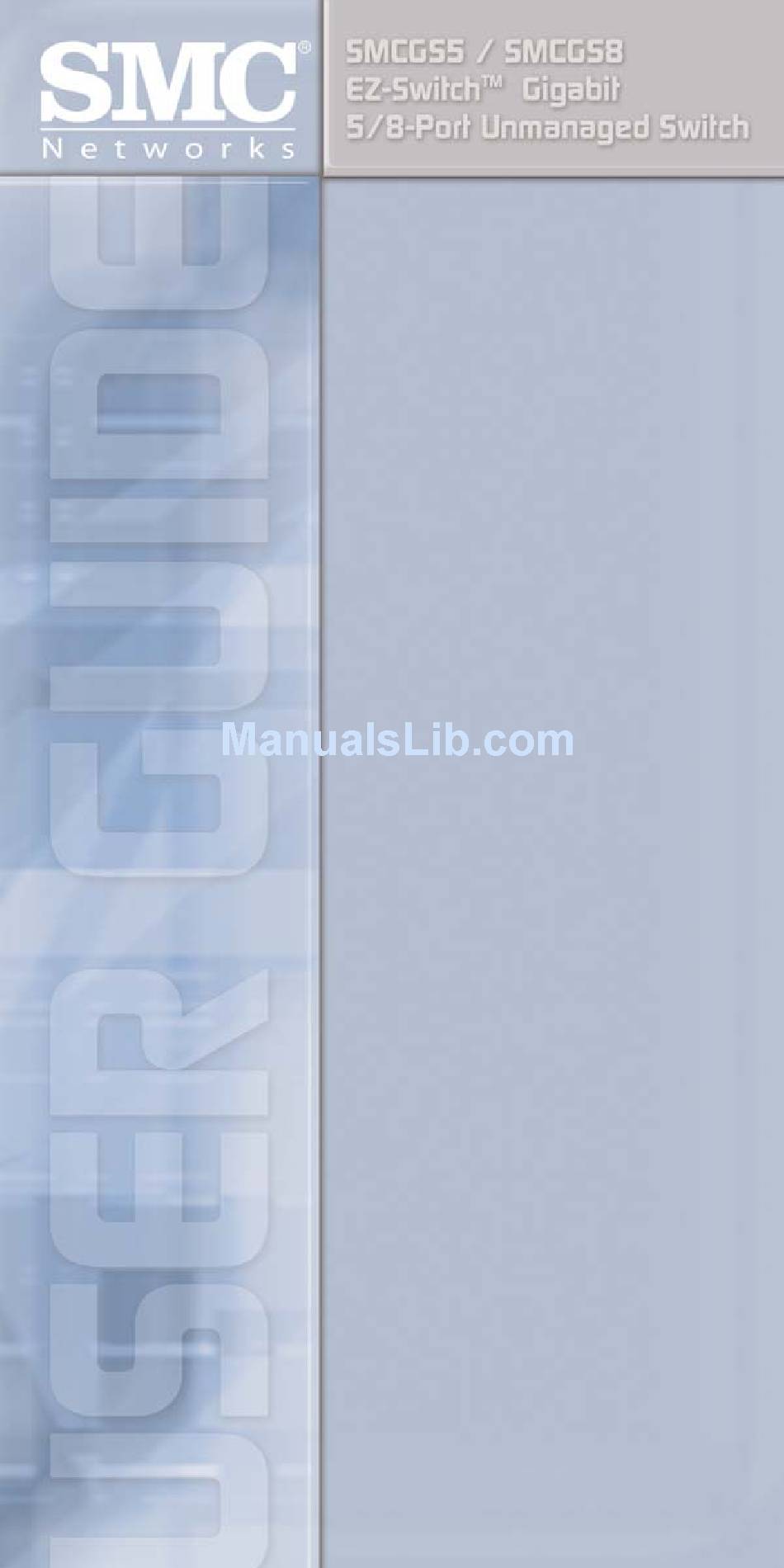

SMC Networks GS5 User Manual

Gigabit 5/8-port unmanaged switch
Hide thumbs Also See for GS5:

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GS5 and is the answer not in the manual?

Questions and answers

Related Manuals for SMC Networks GS5

Summary of Contents for SMC Networks GS5

  • Page 2 EZ Switch 10/100/1000 User Guide From SMC’s EZ line of low-cost workgroup LAN solutions 38 Tesla May 2005 Irvine, CA 92618 Pub #: 150000018400H R01 Phone: (949) 679-8000...
  • Page 3 38 Tesla Irvine, CA 92618 All rights reserved. Printed in Taiwan Trademarks: SMC is a registered trademark; and EZ Connect is a trademark of SMC Networks, Inc. Other product and company names are trademarks or registered trademarks of their respective holders.
  • Page 4 Reseller. Registration can be accomplished via the enclosed product registration card or online via the SMC web site. Failure to register will not affect the standard limited warranty. The Limited Lifetime warranty covers a product during the Life of that Product, which is defined as the period of time during which the product is an “Active”...
  • Page 5 VARY FROM STATE TO STATE. NOTHING IN THIS WARRANTY SHALL BE TAKEN TO AFFECT YOUR STATUTORY RIGHTS. * SMC will provide warranty service for one year following discontinuance from the active SMC price list. Under the limited lifetime warranty, internal and external power supplies, fans, and cables are covered by a standard one-year warranty from date of purchase.
  • Page 6 • Consult the dealer or an experienced radio/TV technician for help EC Conformance Declaration - Class B SMC contact for these products in Europe is: SMC Networks Europe, Edificio Conata II, Calle Fructuós Gelabert 6-8, 2 08970 - Sant Joan Despí...
  • Page 7 Immunity: • Product family standard according to EN 55024:1998 • Electrostatic Discharge according to EN 61000-4-2:1995 (Contact Discharge: ± 4 kV, Air Discharge: ± 8 kV) • Radio-frequency electromagnetic field according to EN 61000-4-3:1996 (80 - 1000 MHz with 1 kHz AM 80% Modulation: 3 V/m) •...
  • Page 8 Please read the following safety informa- tion carefully before installing the Switch: WARNING: Installation and removal of the unit must be carried out by qualified personnel only. • This guide is intended for use by network administrators who are responsible for setting up and installing network equipment;...
  • Page 9 France and Peru only This unit cannot be powered from IT † supplies. If your supplies are of IT type, this unit must be powered by 230 V (2P+T) via an iso- lation transformer ratio 1:1, with the secondary connection point labelled Neutral, connected directly to earth (ground).
  • Page 10 Veuillez lire à fond l'information de la sécurité suivante avant d'installer le Switch: AVERTISSEMENT: L’ installation et la dépose de ce groupe doivent être confiés à un personnel qualifié. • Ne branchez pas votre appareil sur une prise secteur (alimentation électrique) lorsqu'il n'y a pas de connexion de mise à...
  • Page 11 Cordon électrique - Il doit être agréé dans le pays d’ utilisation Etats-Unis et Canada: Le cordon doit avoir reçu l’ homolo- gation des UL et un certificat de la CSA. Les spe'cifications minimales pour un cable flexible sont AWG No. 18, ouAWG No.
  • Page 12 • Das Gerät sollte nicht an eine ungeerdete Wechselstromsteckdose angeschlossen werden. • Das Gerät muß an eine geerdete Steckdose angeschlossen werden, welche die internationalen Sicherheitsnormen erfüllt. • Der Gerätestecker (der Anschluß an das Gerät, nicht der Wandsteckdosenstecker) muß einen gemäß EN 60320/IEC 320 konfigurierten Geräteeingang haben.
  • Page 13 Warnings and Cautionary Messages Warning: This product does not contain any user serviceable parts. Warning: Installation and removal of the unit must be carried out by qualified personnel only. Warning: When connecting this device to a power outlet, connect the field ground lead on the tri-pole power plug to a valid earth ground line to prevent electrical hazards.
  • Page 14 Environmental Statement The manufacturer of this product endeavours to sustain an environmentally-friendly policy throughout the entire production process. This is achieved though the following means: • Adherence to national legislation and regulations on environmental production standards. • Conservation of operational resources. •...
  • Page 15 Safety Compliance Underwriters Laboratories Compliance State- ment Important! Before making connections, make sure you have the correct cord set. Check it (read the label on the cable) against the following: Operating Voltage Cord Set Specifications 120 Volts UL Listed/CSA Certified Cord Set Minimum 18 AWG Type SVT or SJT three conductor cord...

  • Page 16: Table Of Contents

    Contents INTRODUCTION Description of Hardware Features and Benefits Front Panel RJ-45 Ports SMCGS5 Front and Rear Panels SMCGS8 Front and Rear Panels Rear Panel INSTALLING THE SWITCH Package Checklist Selecting a Site Instructions APPLICATION EXAMPLE TROUBLESHOOTING SPECIFICATIONS...

  • Page 18: Introduction

    EZ Switch 10/100/1000 INTRODUCTION The EZ Switch 10/100/1000, SMCGS5 and SMCGS8, are high-performance Gigabit Ethernet switches designed for delivering Gigabit connectivity to the desktop. It provides 5/8 full-duplex 1000BASE-T ports that significantly improve network performance and boost throughput for high-bandwidth applications. With 10/16 Gigabits of aggregate bandwidth, this switch provides the quickest solution to meeting the growing demands on your network's limited resources.

  • Page 19: Smcgs5 Front And Rear Panels

    EZ Switch 10/100/1000 Front Panel LEDs The front panel of the switch provides status LEDs for “at-a-glance” system monitoring. The following table details the functions of the various indicators. Port and System Status LEDs Condition Status Power Power on, normal operation. Power off or failure.

  • Page 20: Smcgs8 Front And Rear Panels

    EZ Switch 10/100/1000 SMCGS8 Front and Rear Panels Rear Panel The DC power socket is located on the rear panel of the switch.

  • Page 21: Installing The Switch

    Before installing the switch, verify that you have all the items listed under “Package Contents.” If any of the items are missing or damaged, contact your local SMC distributor. Also be sure you have all the necessary tools and cabling before installing the switch.

  • Page 22: Instructions

    EZ Switch 10/100/1000 • There should be adequate space (approximately two inches) on all sides for proper air flow. • Make sure twisted-pair cable is always routed away from power lines, fluorescent lighting fixtures and other sources of electrical interference such as radios, transmitters, etc.
  • Page 23 EZ Switch 10/100/1000 No crossover cables or other device settings are needed. See the “Cable Specifications” on page 9 of this guide for further information. Caution: Do not plug a phone jack connector into any RJ-45 port. This may damage the switch. Instead, use only twisted-pair cables with RJ-45 connectors that conform with FCC standards.

  • Page 24: Application Example

    EZ Switch 10/100/1000 APPLICATION EXAMPLE A typical application for the SMCGS5 is illustrated below.

  • Page 25: Troubleshooting

    EZ Switch 10/100/1000 ROUBLESHOOTING Diagnosing Switch Indicators 1. Symptom Power LED does not light after power on. Probable Causes • DC power socket may be defective. Possible Solutions • Check for loose connections. • Check the power outlet by using it for another device. 2.

  • Page 26: Specifications

    EZ Switch 10/100/1000 PECIFICATIONS EZ Switch 10/100/1000 Standards Conformance IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab Communication Rate 10, 100, and 1000 Mbps Communication Mode Full or half duplex at 10/100 Mbps Full duplex at 1000 Mbps Media Supported 10BASE-T: 100-ohm Category 3 or better twisted-pair 100BASE-TX: 100-ohm 2-pair Category 5 or better...
  • Page 27 EZ Switch 10/100/1000 DC Input Power 9V, 1A MAC Address Table 8K entries Memory Buffer SMCGS5: 112 Kbits on-chip frame buffer SMCGS8: 144 Kbits on-chip frame buffer Power Consumption All 9 Watts Temperature Operating: 0 ~ 40 ºC / 32 ~ 98 ºF Storage: -40 ~ 70 ºC / -40 ~ 158 ºF Humidity 5% to 95% non-condensing...
  • Page 28 Fax (65) 238 6466 Korea: 82-2-553-0860 Fax 82-2-553-7202 Japan: 81-45-224-2332 Fax 81-45-224-2331 Australia: 61-2-8875-7887 Fax 61-2-8875-7777 India: 91-22-8204437 Fax 91-22-8204443 If you are looking for further contact information,please visit www.smc.com. Model Number: SMCGS5 / SMCGS8 38 Tesla Irvine,CA 92618 (949) 679-8000...

This manual is also suitable for:

Gs8Ez-switch smcgs5Ez-switch smcgs8
