Straight-Through Wiring

If the twisted-pair cable is to join two ports and only one of the ports has
an internal crossover (MDI-X), the two pairs of wires must be
straight-through. (When auto-negotiation is enabled for any RJ-45 port on
the switch, you can use either straight-through or crossover cable to
connect to any device type.)
You must connect all four wire pairs as shown in the following diagram to
support Gigabit Ethernet connections.
End A
T
EIA/TIA 568B RJ-45 Wiring Standard
10/100BASE-TX Straight-through Cable
White/Orange Stripe
White/Green Stripe
1
2
3
4
5
6
7
8

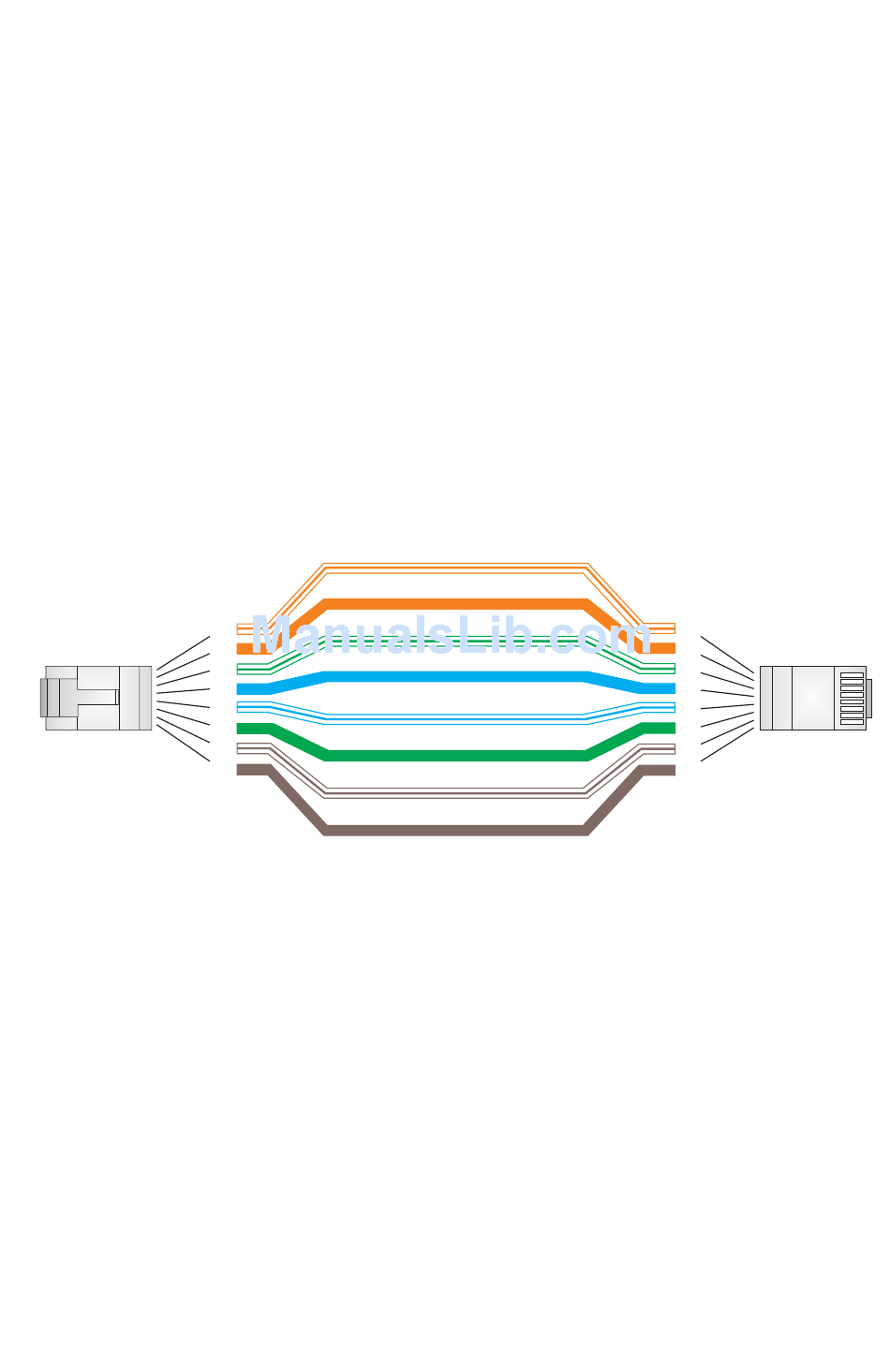

Figure B-2 Straight-through Wiring

-P C
WISTED AIR ABLE AND
Orange
Blue
White/Blue Stripe
Green
White/Brown Stripe
Brown
P A
IN SSIGNMENTS
1
2
End B
3
4
5
6
7
8
B-3
