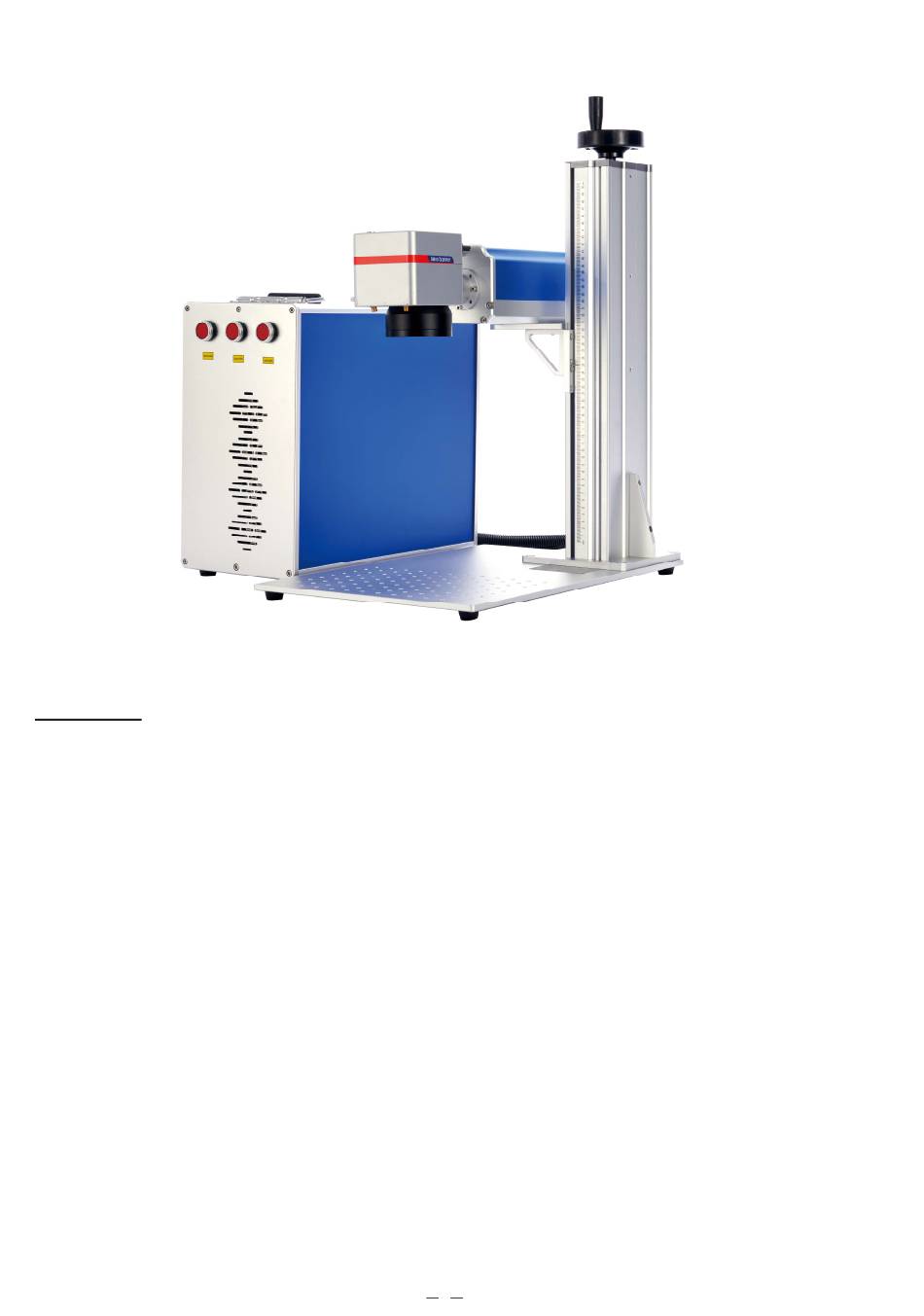

1.5 Components
Main Parts
A. Main Tower—This houses the fibre laser source, its mainboard, and various connections.
B. Galvo Lens Head—The high-speed galvanometer scanning head focuses the laser beam to a fine point, directing it
to proper locations on the target material during engraving.
C. Worktable—This platform holds the target material, with optional positioning bars to ensure precise
alignment.
D. Laser Cable—This transmits the laser beam from its source to the galvonometric lens.
E. Height Adjustment Knob—This wheel moves the laser arm up and down for the correct alignment across different
materials and thicknesses.
F. Support Column—The support column holds the laser arm and includes a precise graduated rule for quickly
adjusting height to work with different materials and thicknesses.
B
A
C
3 3
E
F
D
