3.4 Assembly Instructions

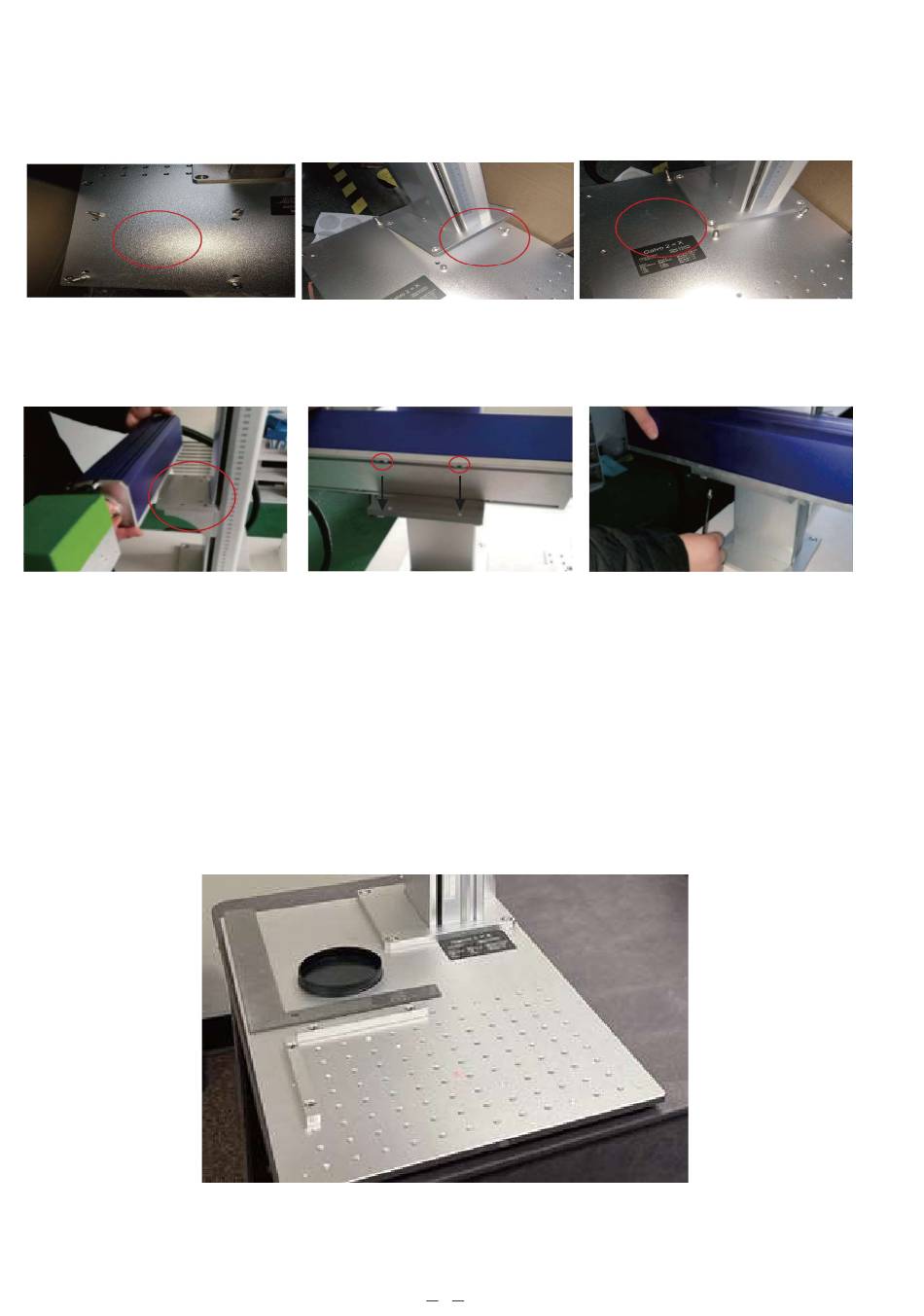

Step 1. Install the support column onto the worktable using the four mounting holes and the provided bolts.
Step 2. Install the laser arm onto the support column using the provided bolts.
Mount the laser arm so that its lens
box is positioned over the work area.
Turn the knob on top of the support column to adjust the height of the laser arm to about 24 cm, as marked
on the column's ruler. This will position the lens to be nearly in focus with most common materials.
Step 3. Make all necessary connections between the various components.
Step 4. The positioning bars can be installed onto the worktable and left in place for all your projects or can be moved
around to suit different projects. Simply place the bars over the holes that will form the outer edge of the target
material and fasten them into place with the provided bolts.
Align the four holes on the housing
with the holes in its mounting bracket.
10
Tighten it into place with the included
bolts.
