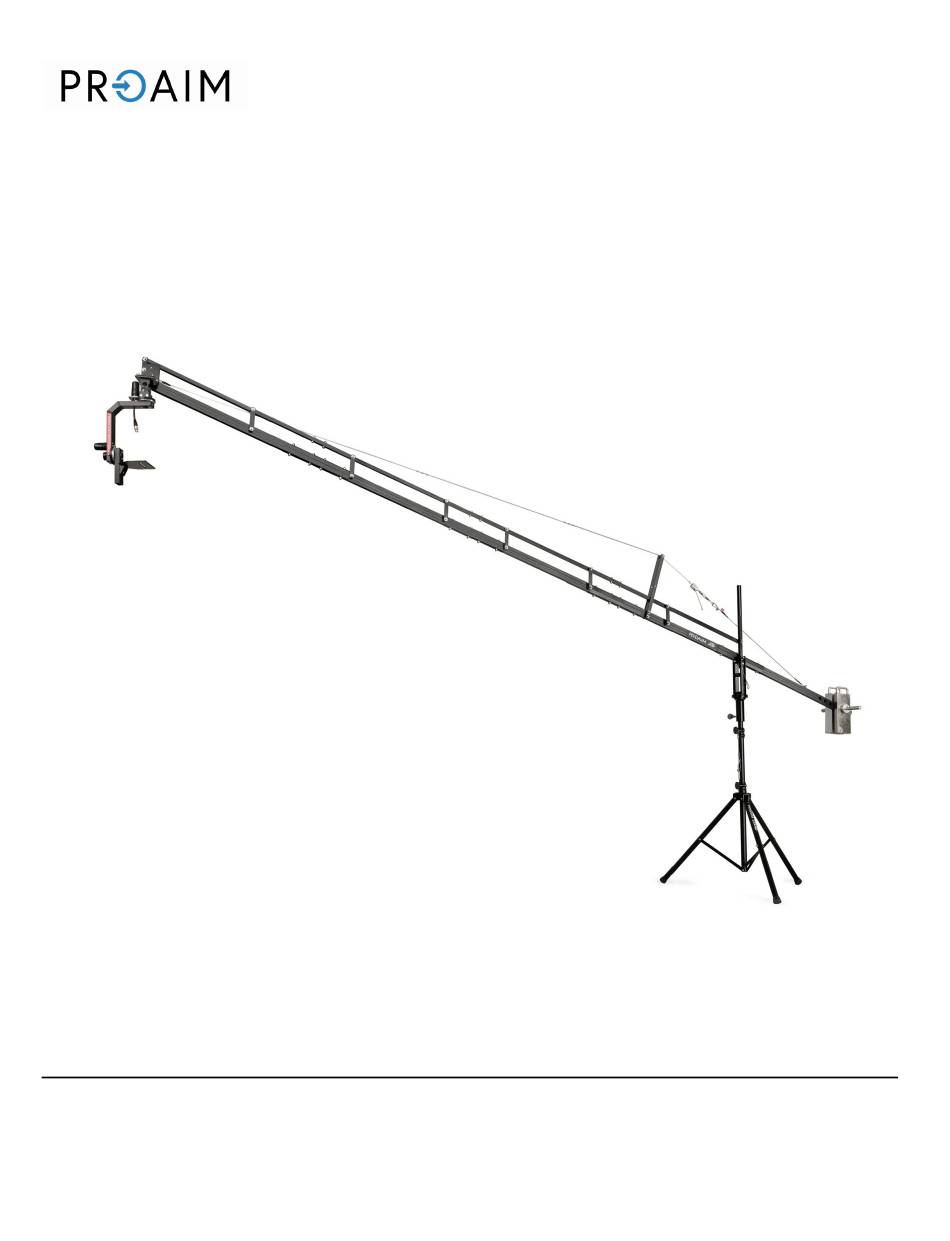

18ft Camera Crane Jib, Stand, Sr. Pan-Tilt | Gimbal Compatible (P-18-JS-SRPP) All rights reserved. No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright...
What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below. Jib Section Accessories: 2nd Section 1st Section 4th Section 3rd Section 5th Section Tool Pouch 5 x Velcro Central Fork LCD Mounting Arm 2 x Weight Closers...
Page 3
Sr. Pan and Tilt Head with Accessories (PT-SR): Cable and XLR Cable AC Adapter 1/4” MS Check Nut Joystick Controller with cap Sr. Pan-Tilt Head Universal Adapter 4 x Fasteners 2 x Fuse 2 x L-Type Allen Keys (3/16” & 2mm) Bag Packing...
INDEX Sr. No Particulars Page No. Jib Stand Assembly Jib Stand Height Adjustment Central Fork Mounting 4th Section Mounting on Central Fork 5th Section Mounting Adjusting the Central Pool Adapter Bush Mounting 3rd Section Mounting 10-11 1st Section & 2nd Section Mounting Wire Tensioner Assembly Weight Rod Mounting LCD Mount Arm Mounting...
Camera Crane Jib, Stand, Sr. Pan-Tilt Setup Jib Stand Assembly • Loosen the knob on the jib stand and adjust the legs to your desired position. • Once the legs are in place, tighten the knob to secure it. Jib Stand Height Adjustment •...
Central Fork Mounting • Mount the central fork on the Jib stand. • Insert the knob, ensuring the holes are aligned. • Tighten the knob. • The central fork is now securely mounted on the Jib Stand. 4th Section Mounting on Central Fork •...
5th Section Mounting • Remove the bolts from both the top and bottom sides of the 5th section of the jib, as shown in the image. • Repeat the same for the remaining bolts of the 5th section. • Insert the 5th section into the end of the 4th section.
Adjusting the Central Pool Adapter • Remove the bolt from the 4th section near the central pool adapter. • Rotate the central pool adapter to adjust its position • Once the position is set, insert the bolt to secure the central pool adapter, as shown in the image.
Bush Mounting • Remove the bolt, washer, nut, and rubber cap from the bush. • Insert the bush into the central pool adapter, then insert the bolt with the rubber cap and washer. • Attach the nut with the rubber cap on the other side.
Page 11
• Remove caps from all the bolts of the 3rd Section. • Loosen the remaining bolts using a 6mm Allen key and a 13mm spanner. • Insert the 3rd Section into the front end of the 4th Section. • Insert the long bolt and nut, ensuring the holes are aligned.
1st Section and 2nd Section Mounting • Repeat the same steps to insert the 2nd section into the 3rd section, and the 1st section into the 2nd section. • The Jib sections are now securely attached. Wire Tensioner Assembly • Connect the wire tensioner (attached to the 1st section) to the wire (attached to the 5th section).
Weight Rod Mounting • Insert the weight rod into the 5th Section and add the weights (Not included) onto it. • Secure the weights by attaching the weight closer. • Add weights to the other side of the weight rod using the same process, based on your preference.
NOTE: The arm length can be adjusted to 18, 14, or 12 feet by easily removing a jib section, providing versatility for different shooting scenarios. LCD Mount Arm Mounting • Loosen the knob on the LCD mounting arm. • Attach the mounting arm to the central post.
• The LCD mounting arm is now securely attached. LCD Mounting • Mount the LCD (Not included) and tighten the knob securely. • The LCD is now securely mounted. Joystick Controller Mounting • Loosen both knobs joystick controller. • Slide the joystick controller onto the weight rod and secure it in place.
• Insert the fastener and tighten it securely. • The Sr. Pan-Tilt Head is now firmly attached to the head platform. Camera Mounting • Mount the camera (Not included) onto the camera plate and insert the 1/4” camera mounting screw. •...
• Adjust the camera plate position by loosening or tightening the bolt using a 3/16" Allen key. • The camera is now securely mounted. Cable & XLR Cable Assembly • Connect the female end of the pan-tilt cable to the male end of the XLR cable.
• Connect the female end of the cable to the joystick controller. • Connect the female end of the AC adapter to the joystick controller. AC Adapter & Universal Adapter Assembly CAUTION: Avoid using an unregulated power supply. • Ensure that the regulated power supply provides less than 24 volts. •...
Parts of Joystick Controller 4-Pin Power Fuse Holder 4-Pin XLR Pan Speed Knob On/Off Switch Tilt Speed Knob Pan Damping Tilt Damping Pan Direction Tilt D irection Joystick for Pan/Tilt Direction • Power on the joystick controller.
Page 20
• Adjust the pan and tilt speed as per your requirements. • Adjust the pan and tilt damping to suit your needs. NOTE: The jib is compatible with 3-axis gimbals, pan-tilt heads, and fluid heads. Its universal front mounting allows for easy attachment of pan-tilt heads and 3-axis gimbal stabilizers. The camera mount tilt control provides both auto tilt and manual tilt modes, operated via a control handle.
YOUR PROAIM 18FT CAMERA CRANE JIB, STAND,SR.PAN-TILT ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
