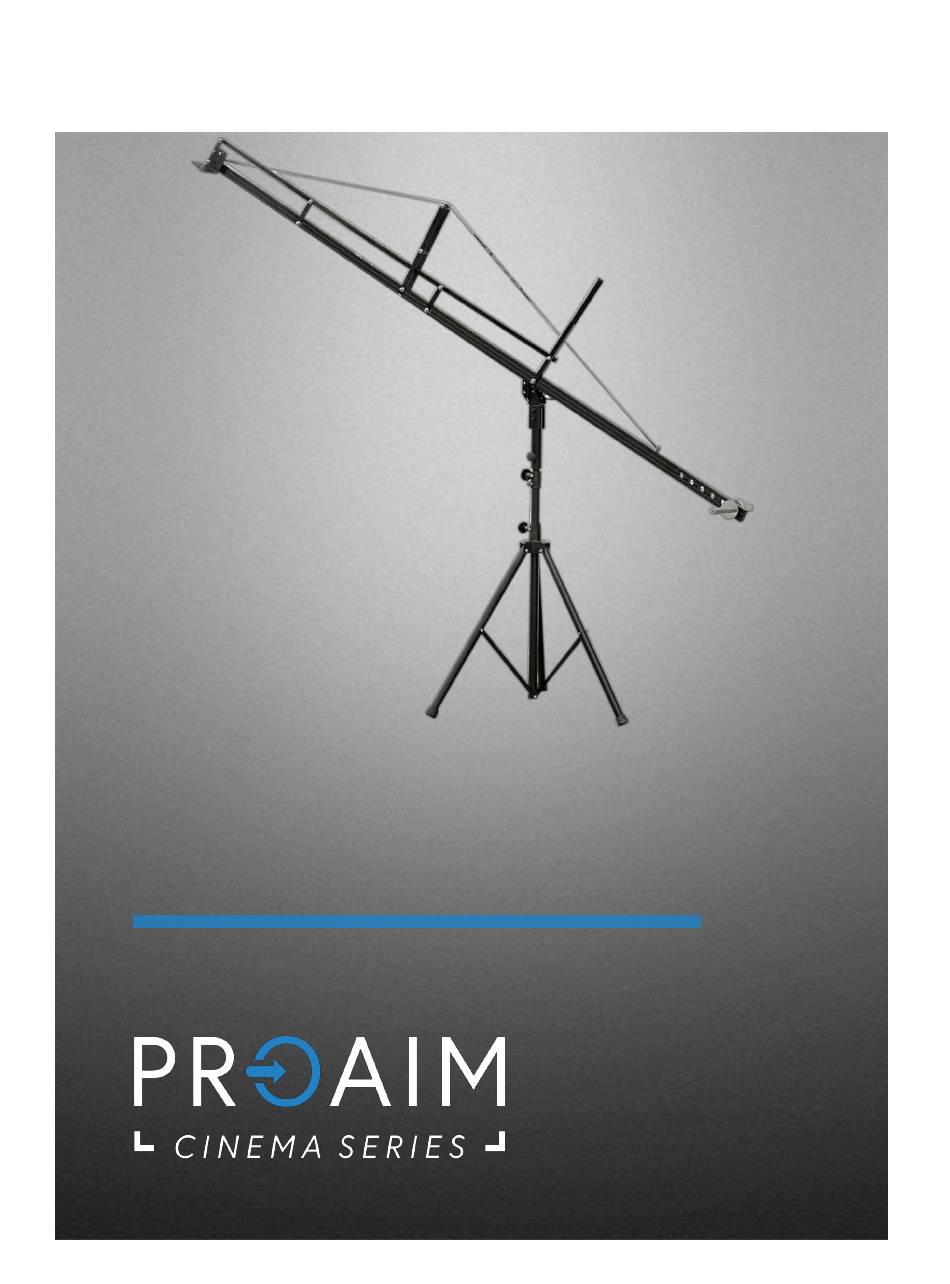

- Page 1 12ft Jib Arm with Jib Stand (P-12-JS) Instruction Manual...
- Page 2 At Proaim, our goal is to ensure 100% Customer Satisfaction in all that we do. We back our sales with a 1 year warranty from the date of purchase and work hard to resolve any problems in the unlikely event one should arise.
- Page 3 Proaim family. By purchasing your Proaim 12ft Jib Arm with Jib Stand, you have just joined a host of designers, engineers, machinists, assembly, customer service and office staff that take great pride in all that they do.
- Page 4 Introduction PROAIM comes forward with its creative 12ft Jib arm, a versatile tool that allows you to smoothly boom your camera up and down for stable and fluid sweeping shots in an infinite number of 360 degree arcs. The Aluminium constructed, ribbed sections camera crane makes it surprisingly vigorous to use with your DSLR DV HDV modern Cameras.
- Page 5 Assembling Jib Stand Setup Knob 1 Loosen the lower knob 1 located at the top of the spreader legs. Slide the legs down the center post to the widest possible position and tighten the knob 1 to secure. A wider spread ensures more stability.
- Page 6 Connect The 2nd Jib Section To The Center Post Open the shank from the central post. Leave the black washers at one side. Then insert the end of this section inside the Center Post and align the holes of the section with the central post to screw in the shank.
- Page 7 Use Wrench tool to tighten the dome nut from both sides to secure the Jib Sections. Connecting Arm Sections Middle With Front and Middle With End The Middle section has connecting bars attached to both the ends. Slide the bars of Middle section into the slots on Front section &...
- Page 8 Adjusting The Wire Tensioner To add strength and stability to your Jib and allow for maximum weight carrying, the fore and aft wire ends once positioned need to have the slack taken out by use of the wire adjuster shown above.
- Page 9 4 screws. This assembly is usually accomplished from the underside (bottom) of the jib camera plate. YOUR PROAIM 12FT JIB ARM WITH STAND ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES)
- Page 10 WARRANTY We offer a one year warranty for our products from the date of purchase. We will repair or replace your product, free of charge, in the event of a defect in materials or craftsmanship obtained during normal use or handling based on the user manual. Please note that we will not cover any shipping costs for returning the product to us.
