Folding Camera Gimbal Tripod Head for
Telephoto Lenses
(P-GHF-01)
A s s e m b l y M a n u a l
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that
is listed below.
Padded Bag Strap
L-Bracket
Folding Gimbal Head
Quick Release Plate
Storage Bag
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PROAIM P-GHF-01
Summary of Contents for PROAIM P-GHF-01
- Page 1 Folding Camera Gimbal Tripod Head for Telephoto Lenses (P-GHF-01) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.

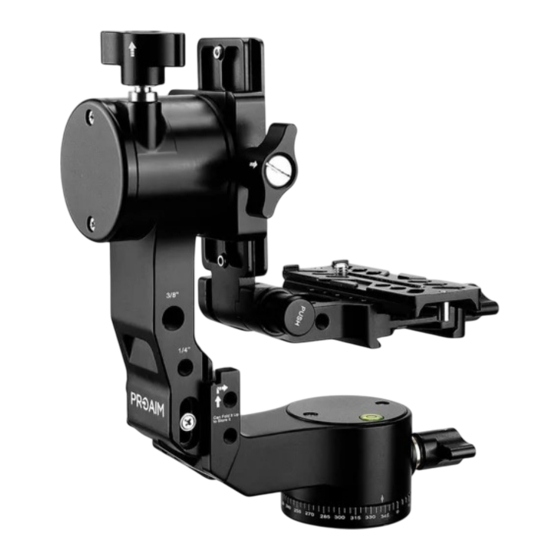

- Page 2 Folding Camera Gimbal Setup • Properly open the Folding camera Gimbal Head as shown in the image. NOTE: The gimbal head folds up into a compact and manageable size, making storage and transit super easy. • Now, properly tighten the Folding Gimbal Head with the help of the knob.
- Page 3 • Loosen the top knob of the Folding Gimbal Head and attach the L-bracket to it. • Then properly tighten it with the help of the knob, as shown in the image. Assembling of Quick Release Plate • Loosen the adjustment knob of the L-Bracket and slide the Quick Release Camera Plate onto the L-Bracket.
- Page 4 • After rotating the Gimbal Head, tighten the knob again. NOTE: The head pans 360° while keeping the horizon straight using the bubble level at the base of the head. Head has a 360° panoramic scale that allows easy pan adjustments. 360°...
- Page 5 NOTE: The head pans and tilts a full 360°, facilitating extreme angles and smooth, balanced shots. The tilting axis are locked independently using the pan and tilt friction knobs. • Loosen the side knob of the Folding Gimbal Head and increase the height of the L-Bracket.
- Page 6 • After sliding the L-Bracket, properly tighten the locking knob. • Now attach the camera (Not Included) to the camera plate by properly matching the threads and tighten with the help of a screwdriver. • Loosen the knob of the Ball Head and slide the camera onto it.
- Page 7 NOTE: The complete kit comes in a foam based carrying bag with a padded strap for added protection and comfort. YOUR PROAIM FOLDING CAMERA GIMBAL HEAD TRIPOD ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts.
