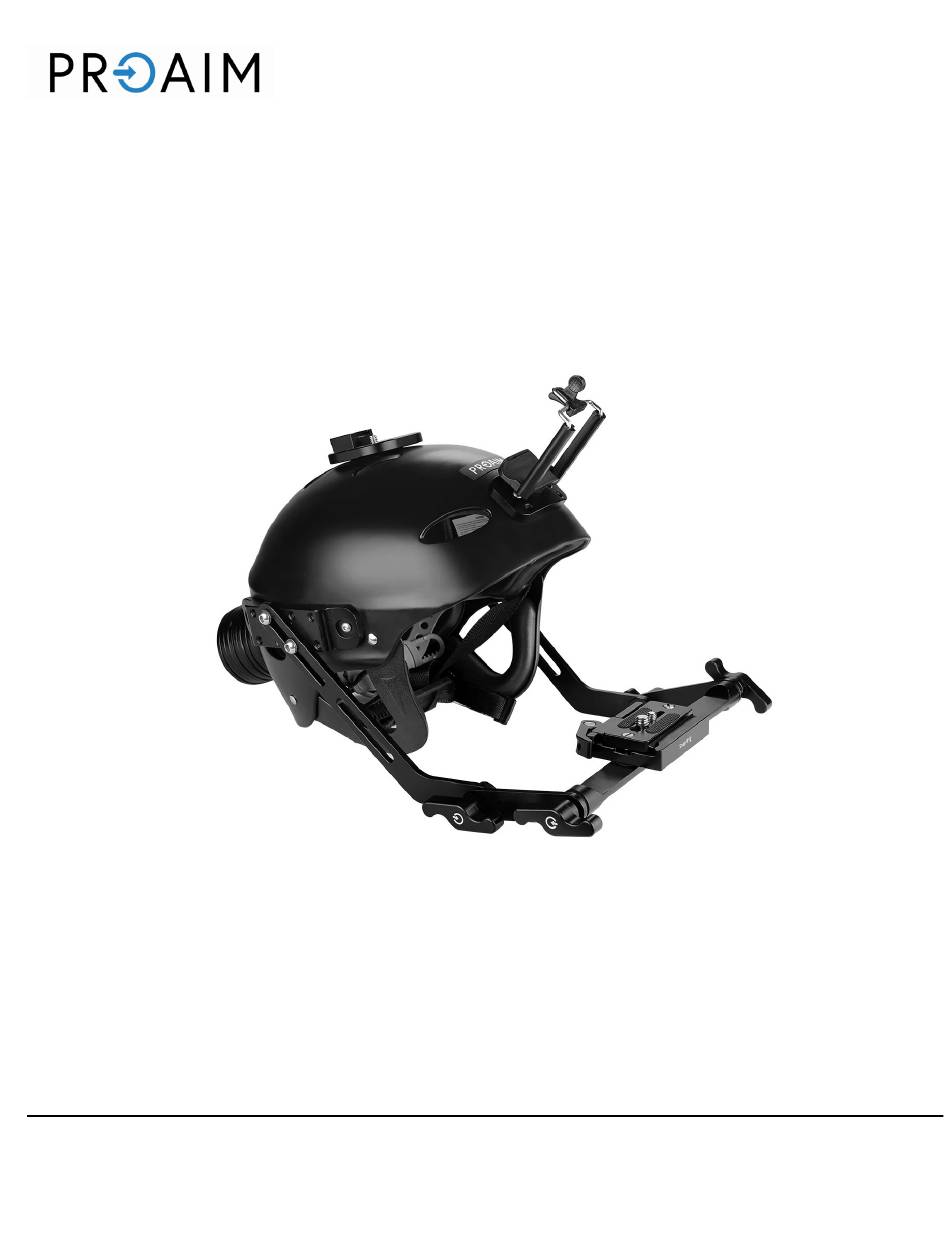

Surfer Helmet Rig for DSLR Camera / Smartphone (P-CSHR-01)
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PROAIM P-CSHR-01
Summary of Contents for PROAIM P-CSHR-01
- Page 1 Surfer Helmet Rig for DSLR Camera / Smartphone (P-CSHR-01) All rights reserved. No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright...
-
Page 2: What's In The Box
What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below. Weight Plates : 10 pcs Surfer Helmet Rig 2 x Camera Bolts (Size: 1/4”) Mounting Bracket iPhone Adapter Adjustable Side Arms 3 x L Type Allen Keys Sizes: (4mm, 3mm, 1.5mm) - Page 3 Surfer Helmet Rig Setup Adjustable Side Arms Assembly • Using an Allen key, loosen and remove the Allen bolts from one side of the helmet. • Repeat the same process on the other side of the helmet. • Loosen the knob on the adjustable side arms and fully extend the arms.
- Page 4 • Loosen the side knob of the mounting bracket and remove it. • Loosen and remove the knob on the other side as well. • Align the mounting bracket with the holes of the adjustable side arms. • Insert the side knobs into both sides of the mounting bracket and securely tighten them.
- Page 5 Attach the quick-release plate to the camera platform knob and properly secure it in place. Remove the quick-release plate by loosening its knob. Attach the plate to the bottom of your camera (Not Included), and tighten it using a screw driver.
- Page 6 Tighten the knob to secure the position. NOTE: Tighten the knob after matching the threads of the knob of the Helmet Rig to properly secure it with optimal gripping. Position Adjustment (Angle + Height) To adjust the position of the Helmet Rig, loosen the button head with the Allen key and set the angle according to your setup requirement.
- Page 7 Accessory Mounting Flexibility Front, Top & Side Plates with 1/4"-20 Threads YOUR PROAIM SURFER HELMET RIG FOR DSLR CAMERA /SMARTPHONE ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES)
- Page 8 Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspection and evaluation by us.
