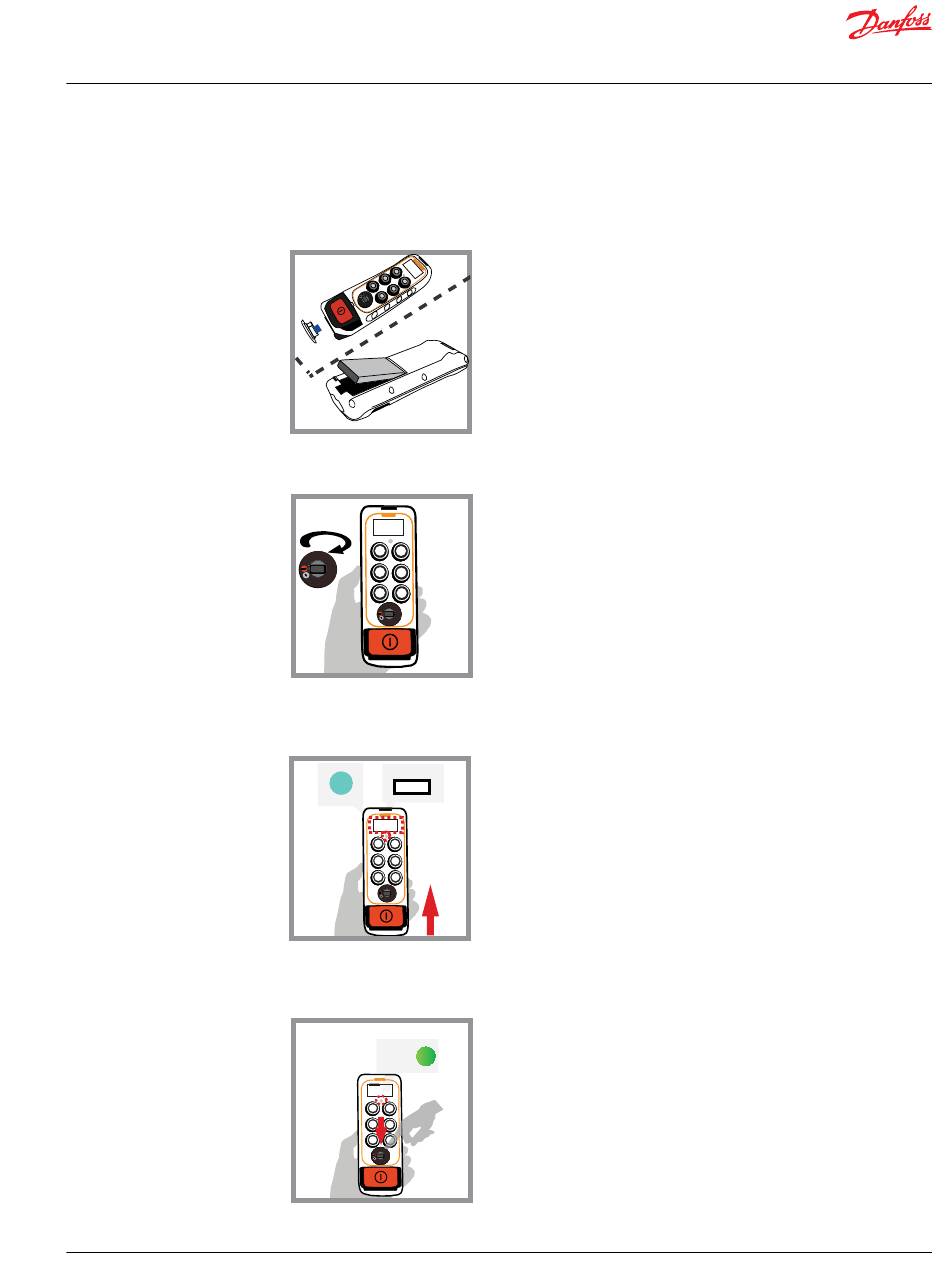

In order to turn the transmitter on (OPERATION mode), follow the next steps.
1. Insert the charged BT11K battery model in the transmitter and ensure the EEPROM module is in place.
The battery must be charged according to the charger manual's instruction.
EEPROM
module
BT11K
2. Turn the multikey from the "0" position to the "1" position.
The multikey cannot be removed while in the "1" position.
Display
ikargo
crane ??
Pulso LED
ikargo
EEPROM
module
BT11K
3. Push and pull out the stop button.
The LED will blink in green color and the battery level will appear in the display. It is recommended to
introduce the machine identifier (example: EOT crane number).
LED pulse
Display
crane ??
ikargo
Pulso LED
ikargo
ikargo
4. Press START with the multikey until the radio link is performed.
The LED color will turn green to indicate that the transmitter is transmitting. Press the maneuver
buttons to verify corresponding movements.
LED pulse
ikargo
ikargo
LED pulse
ikargo
ikargo
LED pulse
ikargo
