RENPHO JD-618 Manual

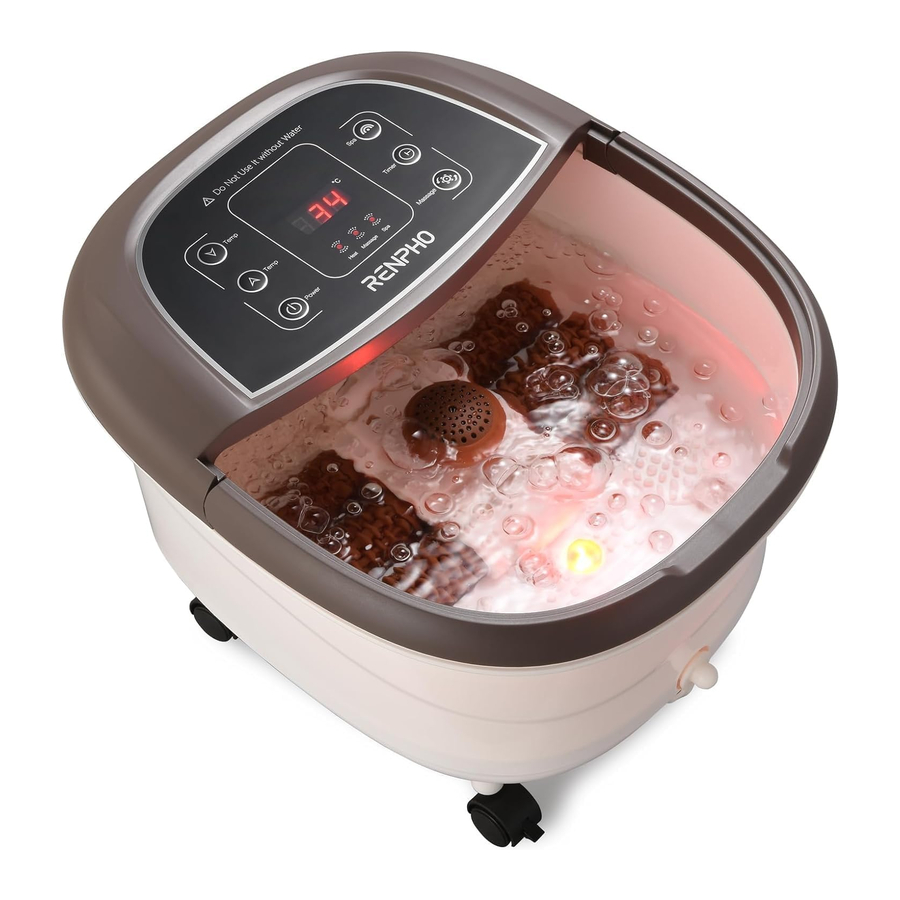

About the RENPHO Foot Spa Massager

What's in the Box

1 x Foot Spa Massager

1 x User Manual

4 x Wheels

Product Introduction

1. Control panel
2. Medicine box
3. PTC heater
4. Motorized maize roller
5. Red light
6. Cover plate
7. Handle
8. Stimulating massage nodes
9. Baseplate
10. Water outlet
11. Wheels

Using the Foot Spa Massager

Important Tips Before Use

Plug in the appliance properly
This appliance is for use on a nominal circuit (220~240V). The plug must be plugged into an appropriate outlet in accordance with all local codes and ordinances.

Operation Instruction

Button Function

Power: Press to turn the appliance on / off. When turned on, the display will show the current temperature of the water in the foot spa massager. To use the heating function, please press "Temp-" or "Temp+" to choose your desired temperature. Increase the temperature gradually from low temperature to your desired heat. When turned off, the display will show "OFF".

Temp -: Press to decrease the temperature in one degree increments. The lowest is 35ć/95ºF.

Temp +: Press to increase the temperature in one degree increments. The highest is 48ć/118ºF.

Note: If the temperature exceeds 48°C/118°F, the appliance will shut off due to overheating protection.

Timer: Press to show the current timer. Press again to adjust the timer setting from 10 minutes to 60 minutes. The appliance will beep as a reminder 5 minutes before the timer is complete. Once the timer is complete, the appliance will shut off and the display will show "OFF".

Massage: Press to toggle the massage function on and off. There are 3 modes to choose from: continuous rolling, rolling at equal time intervals, and rolling at unequal time intervals. The default Massage time is 15 minutes.

Spa: Press to toggle the spa/red light on and off. Press it once to turn on the bubble feature that turns it into a spa. Press it again to turn on the red light along with the bubbles. Press it a third time to turn this whole feature off.

Operation Guide

1. Before use, insert the 4 wheels into the slots at the bottom of the appliance and lock them while using. (There are 4 wheels. 2 of them have a lock.)

2. Place the appliance on a level surface. Ensure that the massager is unplugged before adding water.
3. Add clean water directly to the container. (Adding hot water could save your waiting time.) Make sure the water is beyond the min. water line but below the max. water line. Plug the appliance in and turn it on. Set the water temperature and wait until the water reaches your desired temperature (You can choose not to open the heating function and use other functions directly).
4. Sit down and place your feet in the basin.
5. Select and adjust the timer/spa/massage setting to your preference.
6. Enjoy your deep penetrating massage.
7. To empty: Unplug the appliance and unlock the wheels. Drag or lift the foot spa massager to the nearest drain by the handle. Remove the stopper from the water outlet and tilt the appliance to allow water to flow out of the outlet.

Note:

1. It is not recommended to use the appliance for too long, otherwise, it may cause damage to the motor. Use the massaging function at 15-minute increments and allow the motor to cool down for 5-8 minutes. Then press the massage button again to restart the massage.
2. When using or cleaning the massage roller, please do not press down or tread hard to avoid damaging the appliance and affecting the massage effect.
3. Every foot spa massager has been tested with water before leaving the factory to ensure it works well. So you may find it's a little wet in the foot spa massager. Please don't worry. It is a new appliance, not a used one.
4. It is known that the temperature of the water will naturally decrease. To keep the high temperature for a longer period of time, the actual heating temperature will be slightly higher (no more than 5 degrees).

Product Care and Maintenance

To Clean

Unplug the unit and allow it to cool before cleaning. Clean only with a soft, damp cloth and mild cleaning agent.

• After cleaning, wipe surfaces with a dry cloth.
• Never use strong abrasives, detergents or cleaning agents.
• Periodically straighten the cord if it becomes twisted.

To Store

Unplug the appliance from the outlet and allow it to cool down and dry.

• Store in a cool, dry area.
• Do not hang the unit by the power cord.
• This appliance is designed for household use only.

Troubleshooting

Specifications

Product Name: Foot Spa Massager

Model: JD-618

Voltage: 220-240V~ 50Hz

Watt: 500W

Product Dimensions: 16.1×13.8×11.4in/410×350×290mm

Product Weight: 6.6lb/3kg

Important Safety Instructions

READ ALL INSTRUCTIONS BEFORE USING.

• This appliance can be used by children aged 8 and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge only if they have been given supervision or instruction concerning the use of the appliance in a safe way and understood the hazards involved.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.

NOTICE

• This appliance is not intended for medical use. It is intended only to provide a luxurious spa massage.
• Any individual who may be pregnant or has recently given birth, has a foot condition or skin disease, has a heart condition or a pacemaker, suffers from diabetes or other sensory impairment, phlebitis and/or thrombosis, foot joint dysfunction, inflammation or injuries, weak bones, osteoporosis, a high fever, is at an increased risk of developing blood clots, has pins/screws/artificial joints or other medical devices implanted in his/her foot, is being treated for a medical condition or physical injury or is under a doctor's care should consult a medical professional before using the appliance designed for household use.
• If you have any concerns regarding your health, consult your doctor before using your RENPHO foot spa massager.
• NEVER use any foot spa massager on open wounds, discolored areas, or any area of the body that is swollen, burned, inflamed or where skin eruptions or sores are present.
• Close supervision is necessary when this appliance is used by children, invalids, or disabled persons. (Children under 8 cannot use it.)
• Use this appliance only for its intended use as described in this manual.
• Ensure that your hands are dry when operating the controls or removing the plug.
• Connect this appliance to an outlet properly.
• To disconnect, switch all controls off, then remove the plug from the outlet.
• Use the appliance on a dry sturdy level surface.
• Always keep the appliance horizontally.
• Always unplug the appliance when filling or moving the appliance.
• Keep the cord away from heated surfaces.
• Please stop using the appliance if you feel uncomfortable (pain, dizziness, headache, etc.).
• Before using, please make sure to lock the wheels to keep the appliance unmovable.

• DO NOT turn on or operate the appliance without water.
• DO NOT immerse the appliance in water or any other liquid.
• DO NOT attempt to stand on when using the foot spa massager. Use only while seated.
• DO NOT use this appliance for more than 60 minutes at a time. Extensive use could cause excessive evaporation of the water, and/or cause the appliance to overheat. Should this occur, stop using the appliance and allow it to cool down.
• DO NOT operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged or dropped into water.
• DO NOT touch the bottom of the foot spa massager while using or after using it. The heater is on the bottom, which will make the bottom hotter than the rest of the appliance.
• DO NOT operate under a blanket or pillow. Excessive heating can occur and cause fire, electric shock or injury to persons.
• DO NOT move the appliance by dragging the cord or use the cord as a handle.
• NEVER drop or insert any object into any opening.
• DO NOT reach for an appliance that has fallen into water. Unplug it immediately.
• DO NOT use while bathing or showering. Use only in a dry area.
• DO NOT place or store the appliance where it can fall or be pulled into a tub or sink.
• DO NOT attempt to plug or unplug the appliance when your feet are in the water.
• The appliance must not be located immediately below a socket-outlet.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The switch or control unit must not be allowed to get wet during washing and that during drying the cord must be positioned to ensure that water does not flow into the switch or control.
• If water leaks from the appliance, the appliance should no longer be used.
• The appliance has a heated surface. Persons insensitive to heat must be careful when using the appliance.

Warranty Policy

Your RENPHO product purchase is covered by a one-year limited manufacturer warranty from the date of delivery.

For warranty terms and conditions, please visit: https://renpho.com/pages/warranty-terms-and-conditions

Note: Product registration is not required for the warranty. If you choose not to register your product, it will not diminish the product warranty.

Customer Service

Please feel free to contact us if you have any questions or concerns. RENPHO Customer Service Team guarantees a quick response and hassle-free solutions to any issue you may have within business hours.

Tel: +44(0)7434-666088 (UK ONLY)
Monday-Friday 9:00AM-5:00PM(GMT)
1800 MY RENPHO (1800 69 7367) (AU ONLY)
Monday-Friday 9:00AM-6:00PM (AEST)

Email: support-eu@renpho.com(UK&EU)
support-au@renpho.com (AU)

*For defective products or the return of items, please contact us with your order number within the specified warranty period. DO NOT dispose of any product parts as they may be required for inspection/repair.
