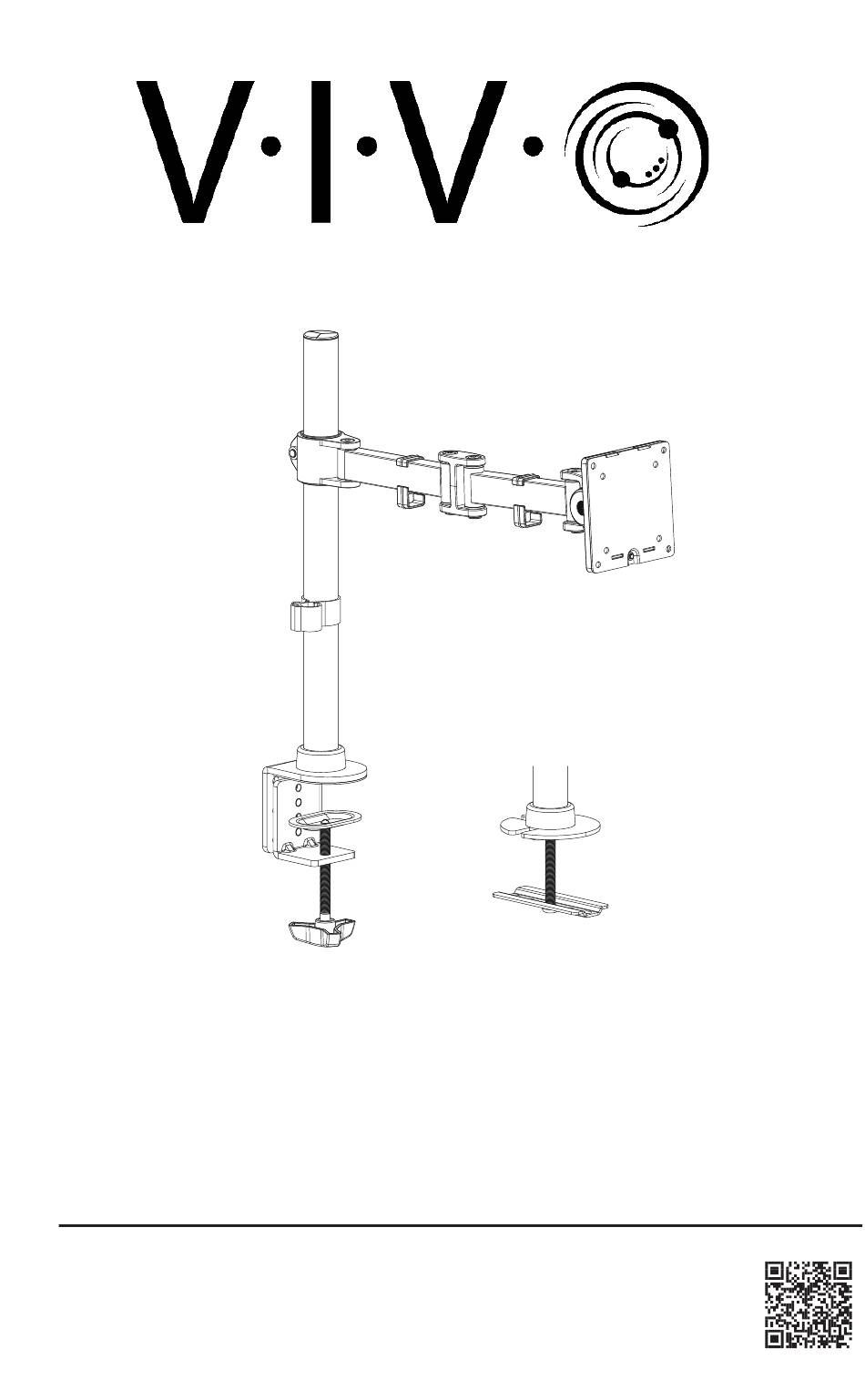

- Page 1 Single Ultrawide Monitor Desk Mount SKU: STAND-V100M Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/stand-v100m...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 Package Contents A (x1) B (x1) C (x1) D (x1) Pole Clamp Pole Cap E (x1) F (x1) G (x1) H (x5) Grommet Plastic Grommet Support Cover Plate I (x2) J (x1) Arm Cable Pole Cable Clip Clip Included Hardware & Tools S-A (x1) M-A (x4) M-B (x4)
-
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1a Assembly Option #1 - Desk Clamp Screw Tightly thread Pole (A) into Clamp (B), Use 3mm Allen Wrench (T-A) to tighten the Clamp Set Screw to secure Pole. Slide the ensuring you create a snug connection between the two components. - Page 5 STEP 1b Assembly Option #2 - Grommet Mount Remove the protective film from Pads (H) and place on the underside the Grommet Plate (E). Set Screw Secure the Grommet Plate (E) to the desktop using M10x90mm Screw (S-A), Support Plate (G), and 6mm Allen Wrench (T-B).
- Page 6 STEP 2 Unfold the Arm (C) straight, as shown below. Slide the Pole Cable Clip (J) and Arm (C) onto the Pole (A). Hold Arm at the desired height and secure using the 6mm Allen Wrench (T-B). Press the Pole Cap (D) into the top of the Pole, then snap Arm Cable Clips (I) onto both segments of the Arm.
- Page 7 STEP 3 Loosen the Thumbscrew (C2) on the back of VESA Bracket (C1), then separate and remove VESA Plate (C3) by pulling out and sliding upwards. Install the VESA Plate (C3) onto the back of your monitor using M4x12mm Screws (M-A) or M5x12mm Screws (M-B) and M5 Washers (M-C), orienting the arrow on the VESA Plate pointing up.
- Page 8 STEP 4 Adjusting the Tilt Joint Adjustment Screw Loosen Tilt Joint: Set Angle Use 6mm Allen Wrench (T-B) to Firmly grip the VESA Bracket and loosen the Tilt Joint Adjustment adjust to your desired viewing Screw, located on the side of angle, and hold in place.
- Page 9 STEP 5 With the assistance of a second person, line up the VESA Plate (C3) on your monitor with the VESA Bracket and the Plate Hooks into the pockets of the VESA Bracket (C1). Monitor & VESA Bracket may need to be angled backwards slightly when sliding on. 2 Person Mounting is Recommended *Monitor &...
- Page 10 Fine Tune Tilt Angle If the monitor is angled further than intended... Heavy Weighted/ Ultrawide Monitors [ 22lbs - 44lbs ] Firmly Hold Monitor Firmly grasp and hold the monitor in place. Do NOT release monitor until you have completed steps below. Loosen Tilt Joint: With a hand still on the monitor, use 6mm Allen Wrench (T-B) to loosen the...
- Page 11 STEP 6 Route cables through the Arm Cable Clips (I) and Pole Cable Clip (J). STEP 7 Make adjustments as desired on swivel and orientation. *If you are using the stand with the clamp, do NOT extend the arm past the back of the clamp to prevent possible damage to your monitor and stand.
- Page 12 LAST UPDATED: 03/19/24 REV1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
