Vivo STAND-V100D Instruction Manual

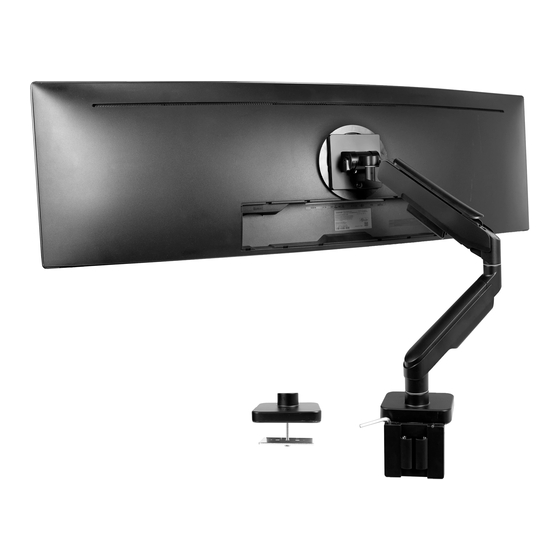

Pneumatic arm single ultrawide monitor desk mount

Table of Contents

Download this manual

Pneumatic Arm Single Ultrawide Monitor

Desk Mount

Instruction Manual

SKU: STAND-V100D/DW

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

https://vivo-us.com/products/stand-v100d

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

help@vivo-us.com

www.vivo-us.com

Chat live with an agent!

309-278-5303

Table of Contents

Need help?

Do you have a question about the STAND-V100D and is the answer not in the manual?

Page 1 Pneumatic Arm Single Ultrawide Monitor Desk Mount Instruction Manual SKU: STAND-V100D/DW Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v100d GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
Page 2 WARNING! ASSEMBLY STEPS STEP 1 If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or OPTION A: Clamp Installation defective parts.
Page 3 STEP 1 (Continued) STEP 4 OPTION B: Grommet Base Installation Attach VESA Adapter (D) using M8x35mm Screws (S-C) and M8 Nuts (S-A) on Spring Arm (C) using 6mm Mark drill holes using the larger outer holes on Clamp Plate (E), drill two 3/8” (10mm) holes. Insert Allen Wrench (T-B).
Page 4 Adjust as Desired STEP 7 If needed, adjust Spring Arms (C) to support the monitors using the 6mm Allen wrench (T-B). Turn the Adjust tilt and swivel using 6mm Allen Wrench (T-B). screw in back counter-clockwise to decrease support, and clockwise to increase. STEP 8 Remove cable cover on Spring Arm (C) by pulling the sides away from the arm to unclip them.
