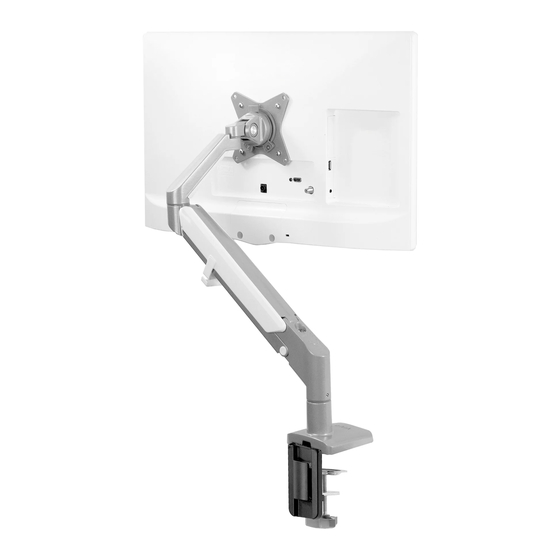

Silver Pneumatic Arm Single Monitor Desk Mount
Instruction Manual
SKU: STAND-V100A
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v100a
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V100A
Summary of Contents for Vivo STAND-V100A
- Page 1 Silver Pneumatic Arm Single Monitor Desk Mount Instruction Manual SKU: STAND-V100A Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v100a GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1 OPTION A: Clamp Installation Attach clamp brace (B) to the base of the arm (A) using M6x8mm bolts (F), and tighten with the 4mm Allen wrench (N). Apply pads (G) to each corner of the base. For 3/8”... - Page 4 STEP 2 Attach the VESA plate (E) to the monitor using bolts (M-A or M-B) with washers (M-C), making sure the knob is facing towards the top of the monitor, and tighten with a Phillips screwdriver. STEP 3 Slide the VESA plate (E) with monitor onto the arm (A), and twist the knob 1/4 turn to lock.
- Page 5 STEP 4 If needed, adjust the gas spring in the arm (A) to support the monitor using the 6mm Allen wrench (O). While holding the arm in the straight forward position, turn the screw in back clockwise to decrease support, and counter-clockwise to increase. CAUTION - To avoid damage to the monitor and mount, always keep the arm in a horizontal position while making adjustments.
- Page 6 STEP 6 Use the cable clip (M) and cover (D) to organize cables. STEP 7 To limit the arm swivel range, tighten the set screw on the back of the arm (A) using the flat blade end of the 4mm Allen wrench (N). For no swivel range limit, loosen the set screw.
- Page 7 STEP 8 Tighten or loosen the rotation tension by turning the screws on the back of the VESA plate (E) with a Phillips screwdriver. Adjust tilt support by turning the bolt on the side of the tilt joint with the 4mm Allen wrench (N).
- Page 8 - 92% within < 3hr www.vivo-us.com AVG. RESOLUTION TIME : < 15 M (within office hrs) Chat live with an agent! 309-278-5303 AVG. RESOLUTION TIME : 5M 4S (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
