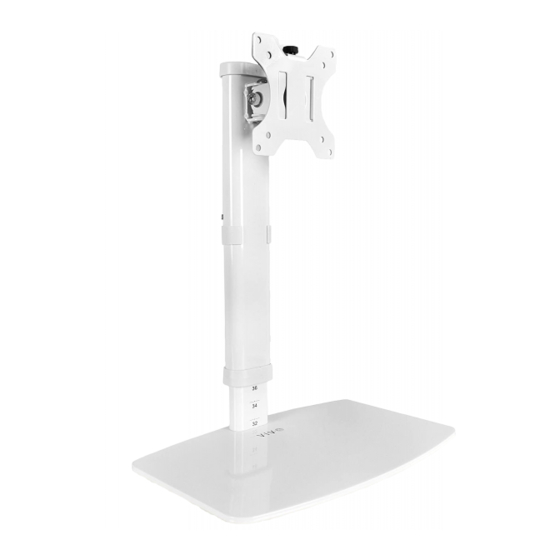

White Single Monitor Desk Stand
Instruction Manual
SKU: STAND-V100W
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v100w
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Related Manuals for Vivo STAND-V100W
Summary of Contents for Vivo STAND-V100W
- Page 1 White Single Monitor Desk Stand Instruction Manual SKU: STAND-V100W Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v100w GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Tools Needed
TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 13.2lbs Failure to do so may result in serious injury. (5.99kg) Phillips Screwdriver ASSEMBLY STEPS STEP 1 Install height adjustable pole (A) to base (C) with bolts (E), and tighten with 4mm Allen wrench (G). Attach cable clip (D) to pole. - Page 4 STEP 2 OPTION A: Flat Back Monitor Install VESA plate (B) to monitor using bolts (M-A) or (M-C) and washers (M-E). M- E M- A M- C OPTION B: Curved Back Monitor Install VESA plate (B) to monitor using bolts (M-B) or (M-D), washers (M-E), and spacers (M-F).
- Page 5 STEP 3 Slide the monitor onto the head of height adjustable pole (A). Install thumb screw (F). Make sure the screw is installed before you rotate the monitor. STEP 4 If needed, use 6mm Allen wrench (H) to adjust the bolt on the side of the hinge behind the VESA plate to tighten or loosen the tilt angle.
- Page 6 STEP 5 Use cable clip (D) to store Allen wrenches (G, H) for later use.
- Page 7 STEP 6 Adjust the height and angle of monitor. To reset height, raise all the way to maximum height to release the internal latch, and gently lower to bottom position. 60° +60° 360° -20°...
