1 Product Instructions
1.1 Overview
PM235C is designed for use in caravans or motor homes. It has the following functions integrated into the unit: battery charger,
distribution blocks, PWM solar charger controller, VSR charging, battery low voltage protection, water pump controller.
PM235C is designed for easy installation and has a user-friendly interface.
SYSTEM COMPONENTS
1 Master Power unit
2 Display Screen/Monitor
3 Up to 4 water tank probes, based on monitor selection (not included)
4 Accessories cables
Display Screen
Select from P/No: PM4SWLED, PMD-BT3C, PMD-BT4C or PMD-BT7C

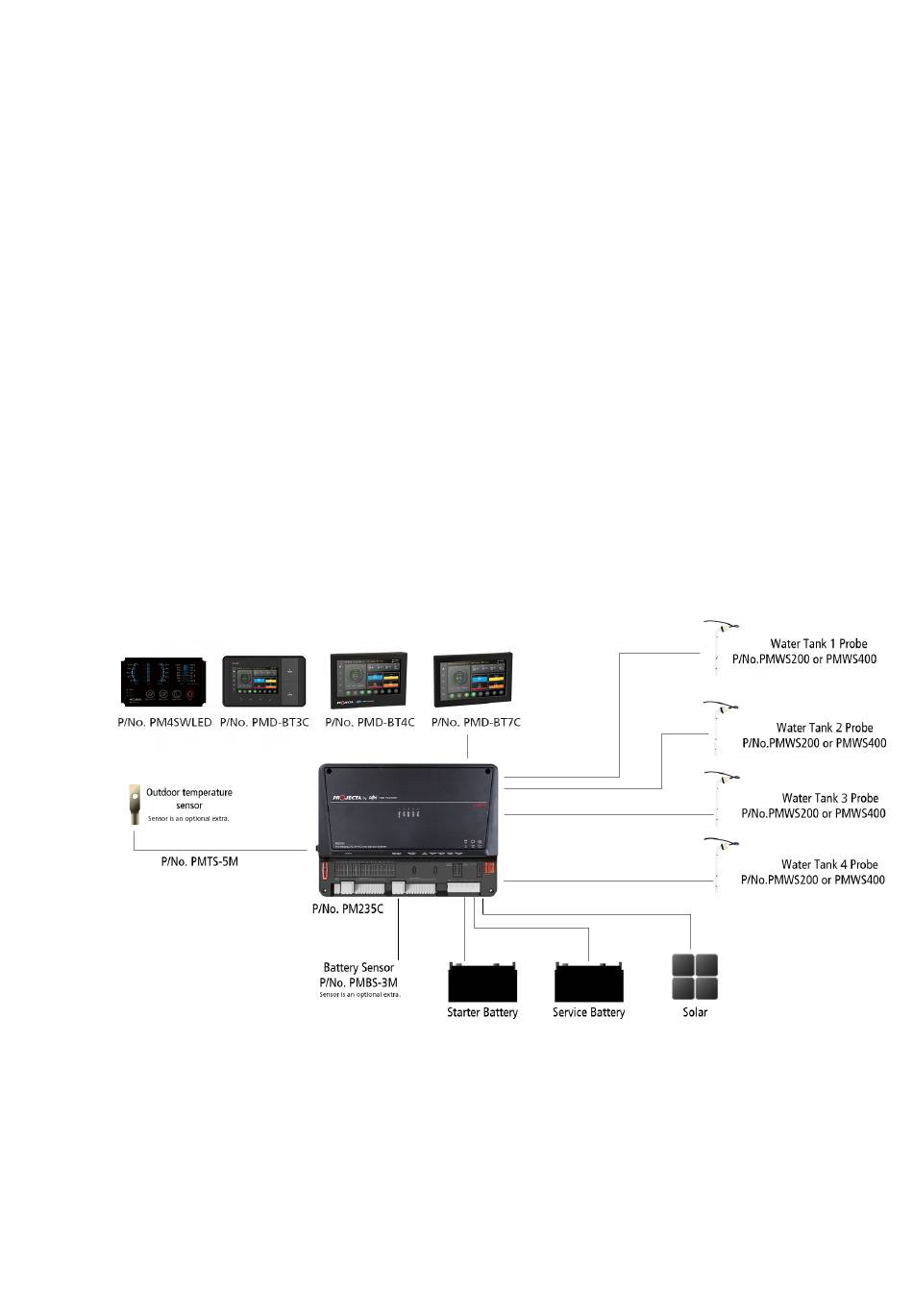

Figure 1 System Components
