Summary of Contents for Projecta IC100L

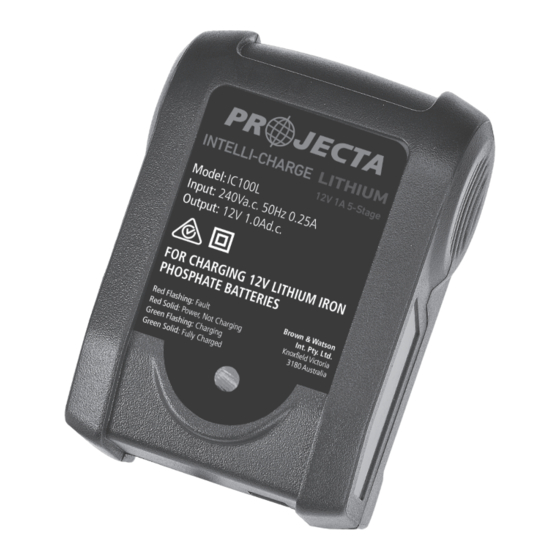

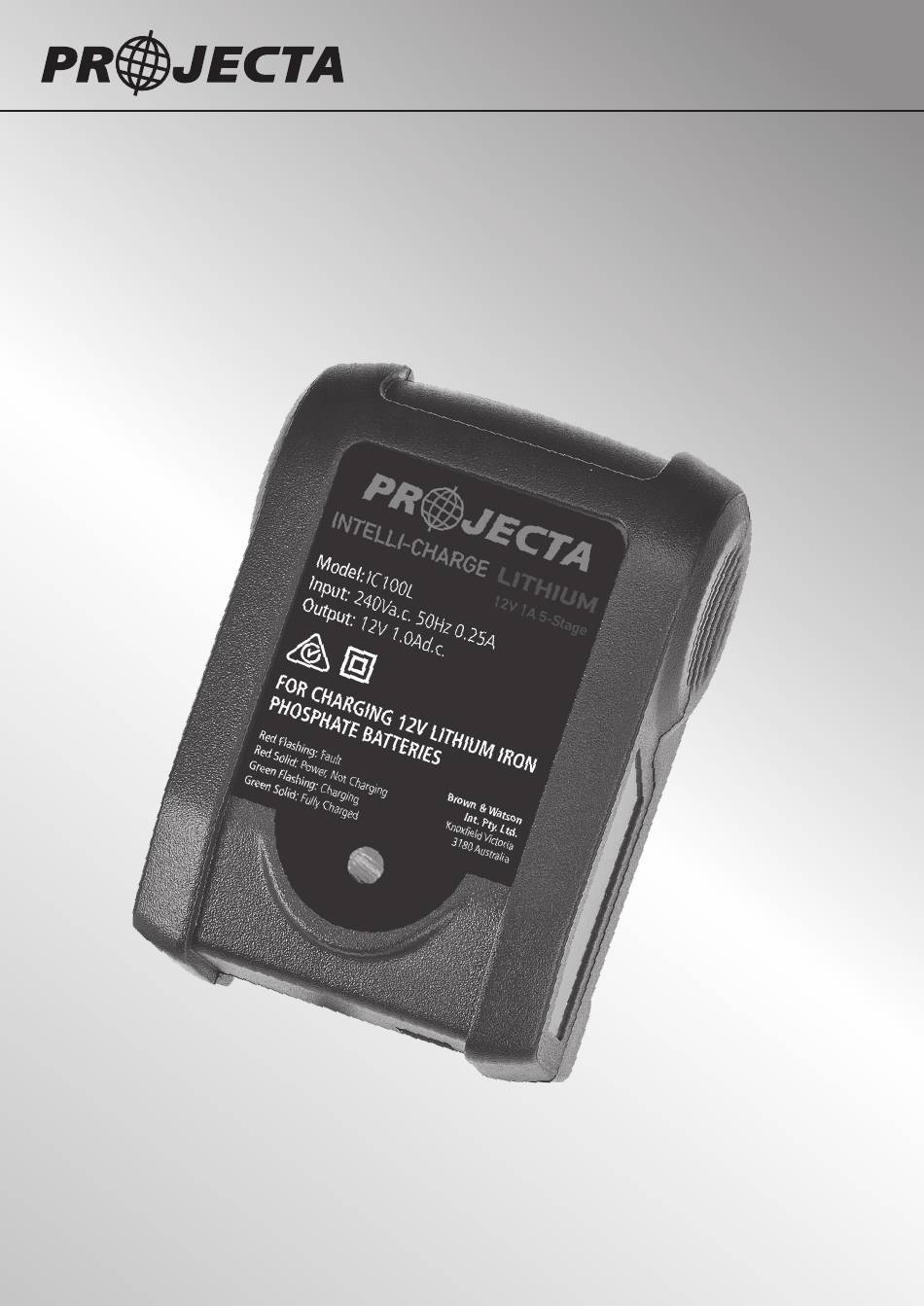

- Page 1 INTELLI-CHARGE LITHIUM BATTERY CHARGER 12 VOLT, 5 STAGE SWITCHMODE P/No IC100L...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION Please read this manual thoroughly before use and store in a safe place for future reference. WARNING • Explosive gases may be released by a battery when charging – it must be placed in a well-ventilated area, away from flames and sparks. •... - Page 3 FEATURES 5 STAGE AUTOMATIC CHARGING This is a fully automatic battery charger with 5 charge stages. Automatic charging protects your battery from being overcharged so you can leave the charger connected to the battery indefinitely. 5 stage charging is a very comprehensive and accurate charging technique that gives your battery longer life and better performance compared to using traditional chargers.
-
Page 4: Charge Status Indicator
CHARGE STATUS INDICATOR The CHARGING and FULLY CHARGED LEDs will illuminate and flash in various patterns to indicate the different stages of charging. See below for flash patterns. Soft Start 1 Soft Start 2 Bulk Absorption Float Green LED (Fast Flash) (Fast Flash) (Slow Flash) (Slow Flash) -
Page 5: Specifications
SPECIFICATIONS P/No. IC100L Type 5 stage Input (Nominal) 240Va.c. 50Hz Output Voltage Output Current Minimum Start Voltage 2.0V Back Drain CHARGE CONTROL Soft Start 1 0.5A, until the battery reaches 8.0V Soft Start 2 0.8A, until the battery reaches 10.0V Bulk 1.0A up to 14.5V... - Page 6 5 Stage Charging harness Comes with a fused wiring harness (3A fuse and cover) Negative INTELLI-CHARGE 12V 1A 5-Stage Model: IC100L Input: 240Va.c. 50Hz 0.25A Output: 12V 1.0Ad.c. 3A Fuse 6.5mm ID FOR CHARGING 12V LITHIUM IRON PHOSPHATE BATTERIES Red Flashing: Fault Brown &...
-
Page 7: Charging Instructions
CHARGING INSTRUCTIONS STEP 1A – CONNECTION OUT OF THE VEHICLE Connect the RED lead (battery clip) from the charger to the Positive (+) battery post. Connect the BLACK lead (battery clip) from the charger to the Negative (-) battery post. Connection out of vehicle STEP 1B –... -
Page 8: Step 2 - Connect To 240V Mains Power
Positively earthed Connect the BLACK lead (battery clip) from the charger to the Negative (-) battery terminal. Connect the RED lead (battery clip) from the charger to the vehicle’s chassis away from the fuel line or moving parts. Connection in vehicle (positively earthed) STEP 2 –... -
Page 9: Fault Codes
PERMANENT WIRING TO BATTERY It is possible to connect the wiring harness permanently to the vehicle. Use the wiring harness provided. It comes with 3A fuse. Connection: 1. Connect the RED lead (with inline fuse and ring terminal) to the Positive (+) battery post. -
Page 10: Frequently Asked Questions
This can occur if a small amount of power is used for a long time, for example a map reading light is left on for a week or more. Projecta 5 Stage chargers are designed to charge from as little as 2V. - Page 11 NOTES...
-
Page 12: Warranty Statement
WARRANTY STATEMENT Applicable only to product sold in Australia Brown & Watson International Pty Ltd of 1500 Ferntree Gully Road, Knoxfield, Vic., telephone (03) 9730 6000, fax (03) 9730 6050, warrants that all products described in its current catalogue (save and except for all bulbs and lenses whether made of glass or some other substance) will under normal use and service be free of failures in material and workmanship for a period of one (1) year (unless this period has been extended as indicated elsewhere) from the date of the original purchase by the consumer as marked on the...
