Projecta INTELLI-RV Instruction Manual page 16

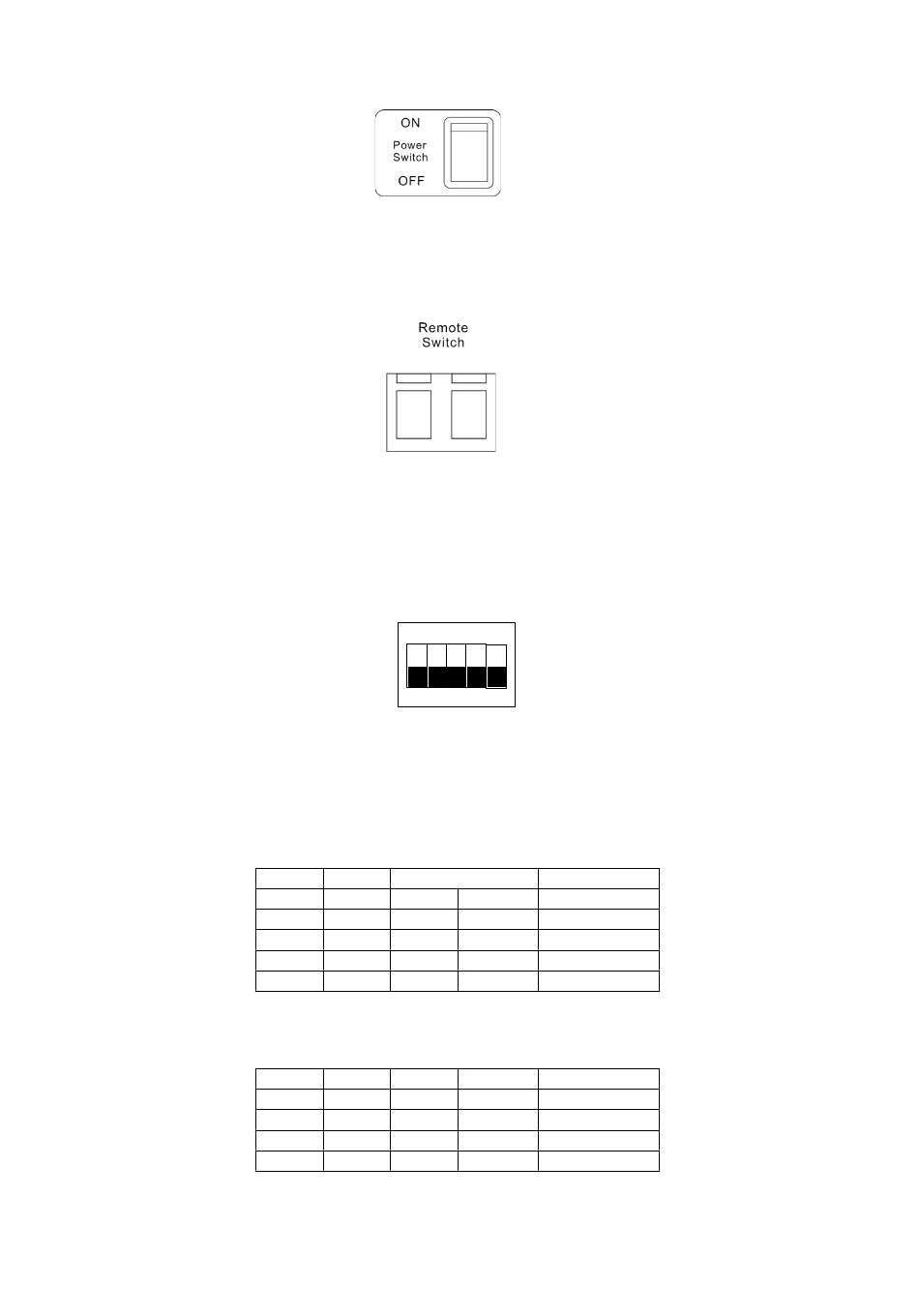

6 Operation
6.1 Manual switch
There is an ON/OFF switch on the side of the machine, which is used to control the whole machine to switch on/off when it is powered by
battery alone, and to control the whole machine to enter into sleep mode when it is powered by mains power. This switch must be be "ON"
in order for the Remote Switch to operate.
6.2 Remote switch (optional)
The remote switch terminals are located next to the positive 14 terminal. This requires the use of an external switch and functions the same
way as the manual On/Off Battery Switch on the side of the charger. The Battery switch must be "ON" in order to use the Remote Switch line.
When not used both terminals must be bridged together.
6.3 Dip switch
There is 5 pin dip switch on the unit which is used for adjusting charging current and battery type. At this time, switch 5 is not used and should
be in the "OFF" position
Note: These do not not to be adjusted if a digital screen is used
16
1 2 3 4 5
Pin 1-2 Definition
1 2 AC Charge
ON ON 10A
ON OFF 15A
OFF ON 20A
OFF OFF 30A
Pin 3-4 Definition
3 4 Type
ON ON WET
ON OFF LFP
OFF ON GEL
OFF OFF AGM
ON
Lead Acid Lithium
Solar Charge AC/Solar Charge
20A 30A
30A 30A
30A 30A
30A 30A
Absorption Float
14.7 13.7
14.2 13.5
14.1 13.5
14.4 13.5
