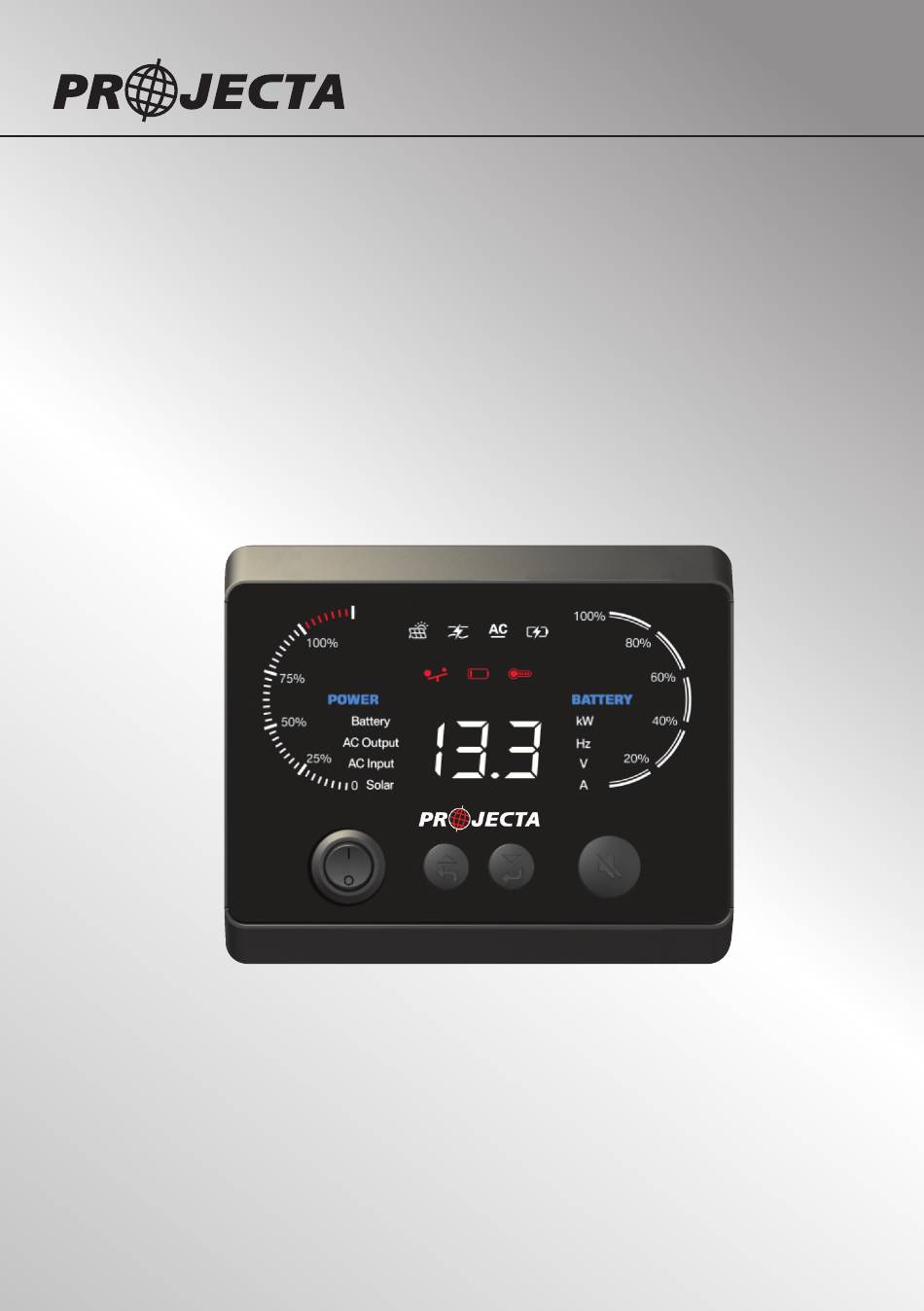

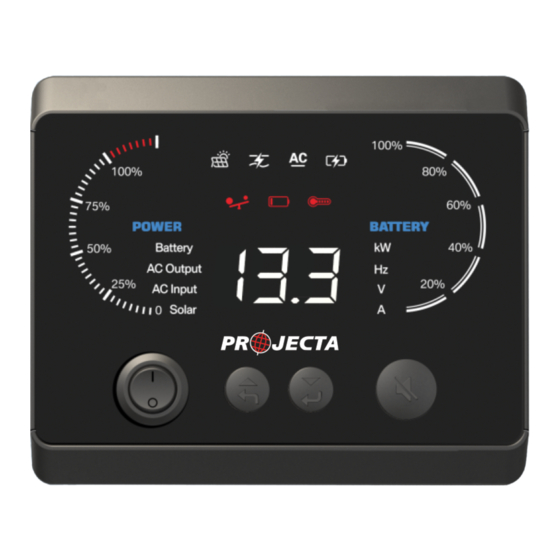

- Page 1 INVERTER CHARGER BATTERY MONITOR P/No INVCHRD-BT...
-
Page 2: Product Overview
WARNINGS – IMPORTANT PLEASE READ • Do not disassemble the monitor. Take to a qualified person if the unit requires repairing. PRODUCT OVERVIEW 10 11 12 DEFINITION DESCRIPTION Solar To indicate solar charger is charging Invert To indicate inverters is working Bypass To indicate Grid or generator is presenting Charge... -
Page 3: Installation
83.5 CONNECTION • Use the cable with RJ45 terminal to connect the INVCHRD-BT to the ComMON terminal of the inverter charger in Fig.1. • Use the cable with RJ45 terminal to connect the INVCHRD-BT to the ComMON terminal of the inverter charger and connect the ComSync or ComSyncIn terminal of the inverter charger to the CAN/RS485 terminal of the HD Series lithium battery in Fig.2. - Page 4 DETAIL LED DISPLAY INFORMATION OF BATTERY SOC Battery Status LED 1 LED 2 LED 3 LED 4 LED 5 SOC=100% Illuminate Illuminate Illuminate Illuminate Illuminate 80%≤SOC < 100% Illuminate Illuminate Illuminate Illuminate Flash 60%≤SOC < 80% Illuminate Illuminate Illuminate Flash Charging 40%≤SOC <...
- Page 5 CONFIGURATION Step 1. To enter into the configuration: Press Step 2. Then you can use scroll up or scroll down scroll down/confirm button for 2 seconds. button to choose the parameter you want to change. Step 3. Long press the scroll down/confirm button Step 4.
-
Page 6: Error Codes
ERROR CODES The INVCHRD-BT to Projecta’s Inverter Chargers INVERTER ERROR CODES CODE DISPLAY DESCRIPTION U_Bus_OV Battery Over-Voltage U_Bus_LV Battery Under-Voltage U_Bus_HW_Pro DC Bus Hardware Under-Voltage PSU_Fault Auxiliary Power Error T_HS_OT Heat Sink Over-Temperature T_TX_OT Transformer Over-Temperature Sam_HD_Fault Sampling Fault EEPROM_Fail... -
Page 7: Warning Codes
WARNING CODES INVERTER WARNING CODES CODE DISPLAY DESCRIPTION U_BAT_OV Battey Over-Voltage Warning U_BAT_LV Battery Under-Voltage U_BAT_LV_Fault Battery Under-Voltage Protection OverLoad Over-Load NTC_HS_Fault Heat sink NTC Failed NTC_TZ_Fault Transformer NTC Failed T_BAT_OT Battery Over-Temperature Fan_Fault Fan Error ParConnect_Err Parallel Connection Error ParComm_Err Parallel CAN Communication Error Par_ID_Conflict... -
Page 8: Specifications
SPECIFICATIONS DISPLAY DESCRIPTION Input Voltage 6.5~16Vdc Communication RS485 Cable Length 5 metres IP Rating IP20 Working Temperature -20~65°C Suits Inverters INVCHR2, INVCHR3 & INVCHR3-48V Suits Batteries in system LB100-HD, LB200HD, LB400-HD, LB50-48VHD, LB100-48HD WARRANTY STATEMENT Applicable only to product sold in Australia Brown &...
