4 Instrument operation

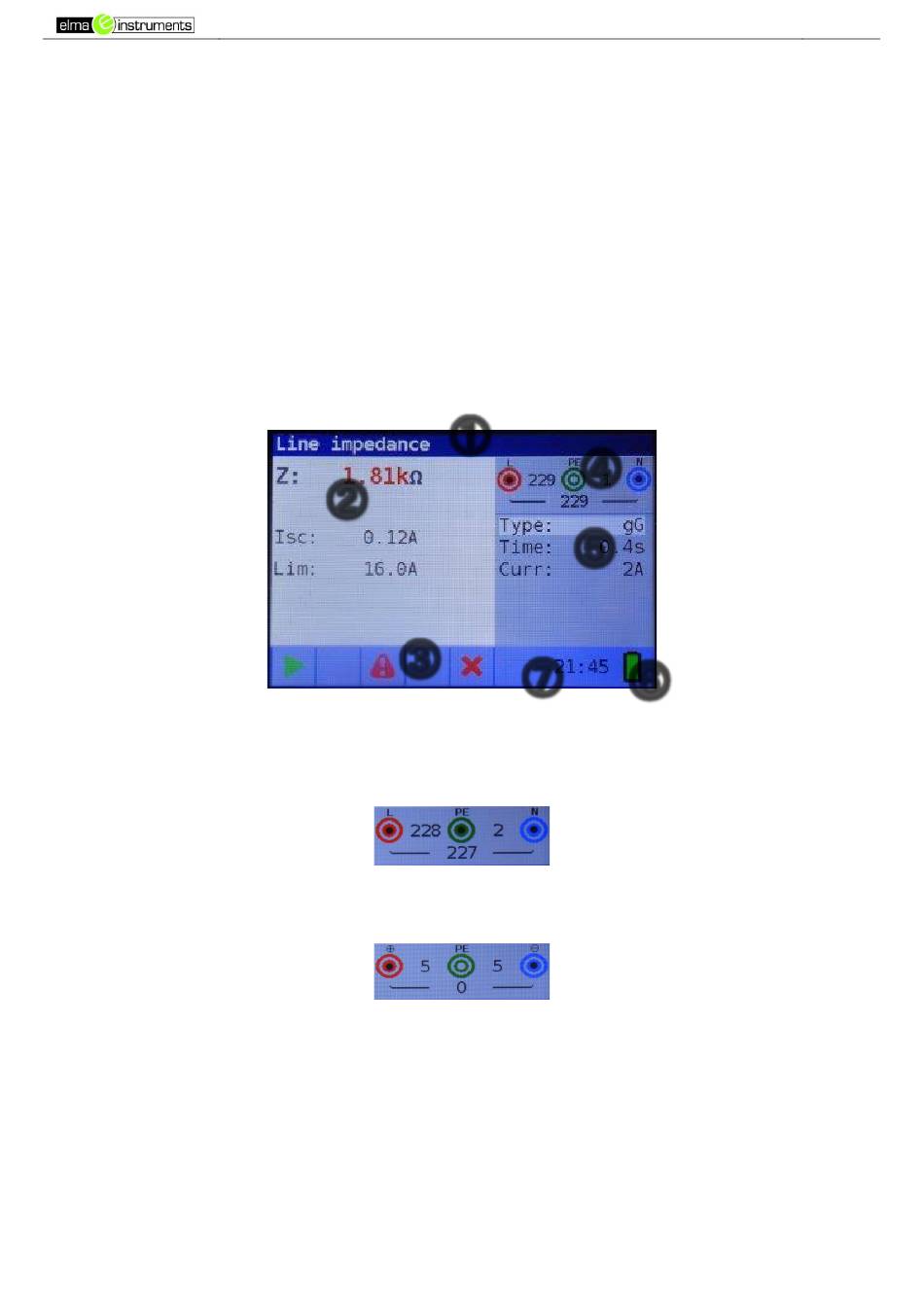

4.1 Symbols and messages on the instrument display
The instrument display is divided into several sections.
Legend:
1. Function line
2. Result field: In this field the main result and sub-results are displayed.
3. Status fields: PASS/FAIL/ABORT/START/WAIT/WARNINGS status are displayed.
4. Online voltage and output monitor: Shows symbolized plugs, names the plugs depending on the
measurements, always shows the actual voltages.
5. Test parameters
6. Battery status indication
7. Clock
4.2 The online voltage and output terminal monitor
Online voltages are displayed together with test terminal indication.
Online voltages are displayed together with test terminal indication.
Elma iTest 7400 Multifunction tester
②
③
Figure 4-1 Display outlook
Figure 4-2 All three test terminals are used for selected measurement
Figure 4-3 L and N test terminals are used for selected measurement
①
④
⑤
⑦
⑥
12
