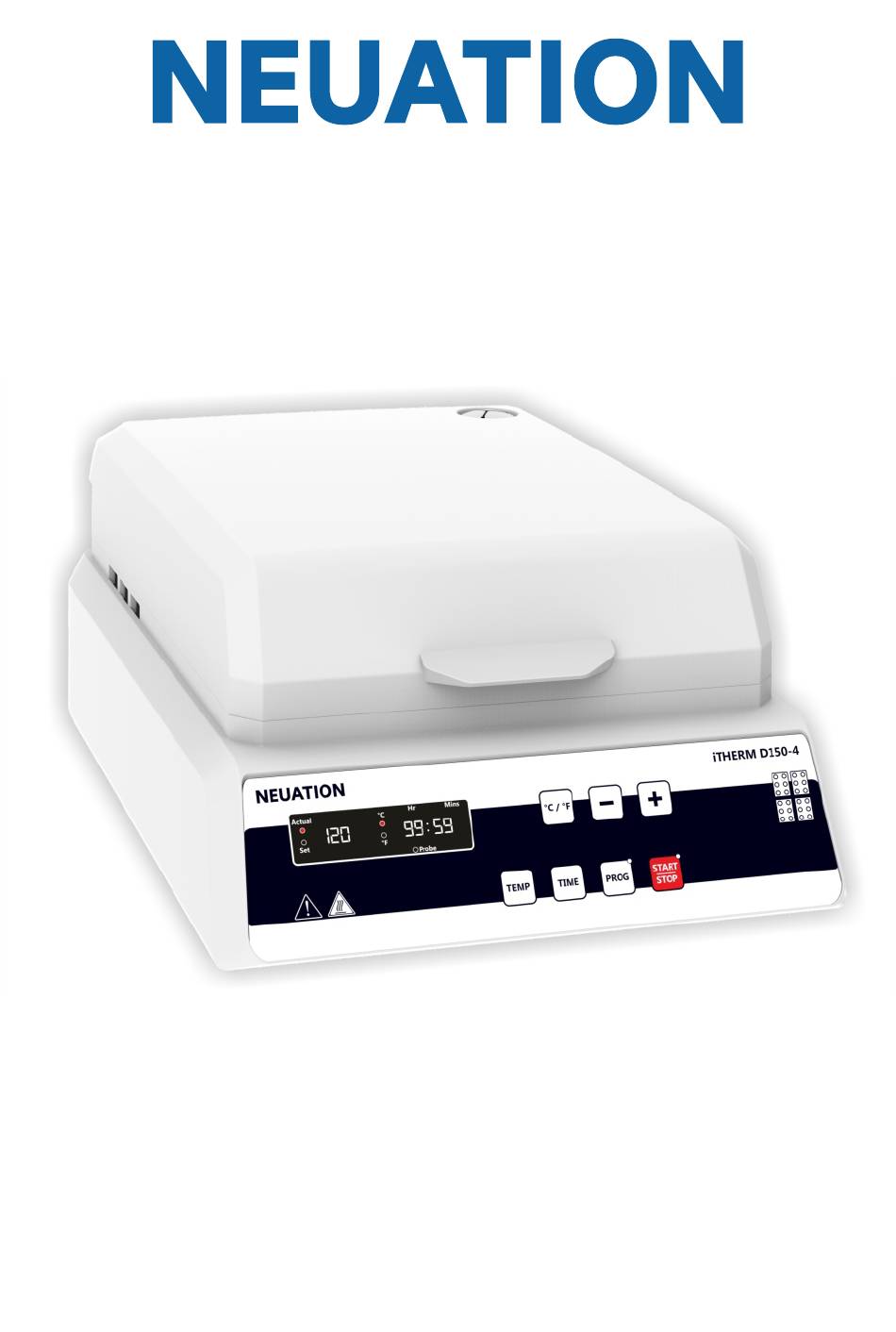

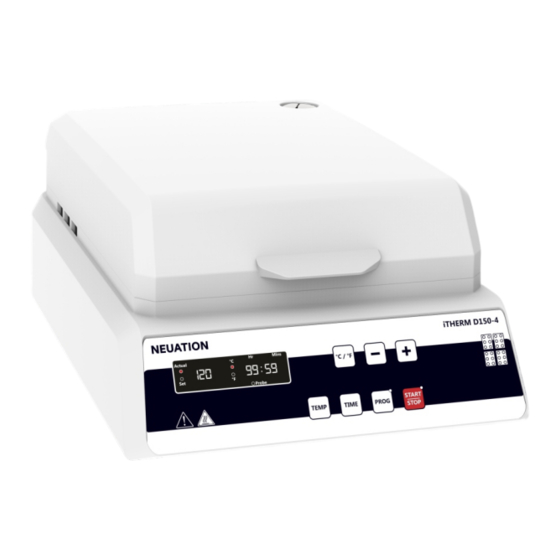

- Page 1 D150-4 PRODUCT USER MANUAL...
-
Page 3: Table Of Contents
TABLE OF CONTENT INTRODUCTION INTENDED USE FEATURE STANDARD ACCESSORIES TECHNICAL SPECIFICATION SAFETY PRECAUTIONS INSTALLATION REMOVING & INSTALLING BLOCKS USER INTERFACE & DISPLAY OPERATION CALIBRATION MODE CLEANING & MAINTENANCE TROUBLES SHOOTING WARRANTY STATEMENT PRODUCT DISPOSAL... -
Page 5: Introduction
1. INTRODUCTION This manual provides important safety information for this Dry Bath. It should be kept near the equipment for quick & easy reference. The Dry bath is equipped with better display for safe operations. This dry bath has range from ambient +5°C to 120°C making it useful for wide range of applications. -
Page 6: Technical Specification
5. TECHNICAL SPECIFICATIONS Temperature Range Ambient +5 to 120°C ± 0.3°C @ 37°C Temperature Uniformity ± 0.5°C @ 60°C within the Block ± 0.3°C @ 37°C Temperature Stability ± 0.5°C @ 60°C within the Block Set-up Block material Aluminium alloy 4 Nos Number of Blocks Display... -
Page 7: Installation
contamination of the product. This product must be used for specified applications only. It must not be · operated in a hazardous or flammable environment and must not be used to mix explosive or highly reactive substances. Do not place the potential hazardous material within the clearance area/ ·... -
Page 8: Connecting Power Cord
the surface firmly. Avoid installing on a slippery surface or surface prone to vibration. Ideal ambient temperature is 20°C ± 5°C; avoid placing the device in direct sunlight. Keep clearance of at least at least 30 cm from all sides to guarantee cooling efficiency. -
Page 9: Control Panel Operation
CONTROL PANEL OPERATION Function Buttons START Start /stop button for operation start and stop. STOP Prog button is there to use presaved programs with certain PROG values. Time button is there to set Temperature TIME Temperature button is there to set Temperature TEMP C/F button is there to set Temperature unit. -
Page 10: Time Function
TEMPERATURE/TIME button and then (+) and (-) button. Then it will blink thrice and changed value will be saved in that program and we can recall it again any time. TIME FUNCTION To set Time, press TIME key. The timer screen will blink ·... -
Page 11: Calibration Mode
11. CALIBRATION MODE The calibration mode comprises of 2 main mode. Firstly, the Plate mode which · is to be set in the factory itself. Secondly, the Probe mode is to be set by the user. The PLATE CALIBRATION is for calibrating the plate’s temperature at a single ·... -
Page 12: Troubleshooting
Use a slight Damp cloth for cleaning process. · Wipe the exterior of the machine with a Damp cloth. · Cover the samples with the device lid over the block, this cover provides · thermal insulation and reduces the water condensation. Note: Do not service or repair the device without manufacturer consultation under or after warranty, user is solely responsible for decontamination of the unit in case of spillage of hazardous material. -
Page 13: Product Disposal
Note: Some states do not allow limitation on the length of implied warranties or the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights. This warranty is given expressly in lieu of all other warranties, expressed or implied. The purchaser agrees that there is no warranty of merchantability or of fitness for any intended purpose and there are no other remedies or warranties, implied, which extend beyond the description on the face of the agreement. - Page 16 Accumax Lab Devices Private Limited Plot No. 15, 16 & 32 GIDC Electronic Park SEZ, Sector 26, Gandhinagar, Gujarat, India - 382026. Website: www.accumaxlab.com...
