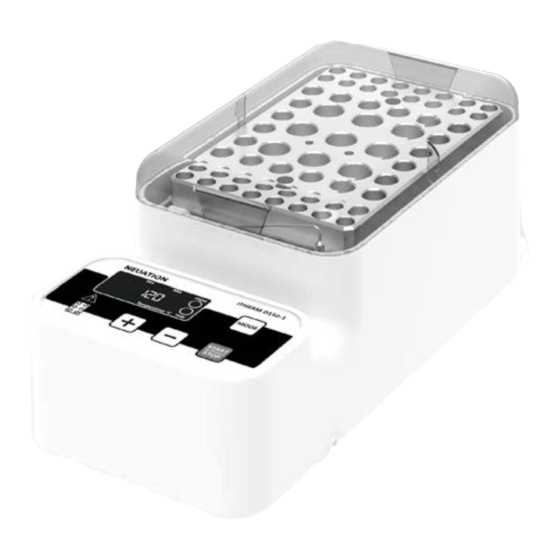

Neuation iTHERM D150-1 Product User Manual

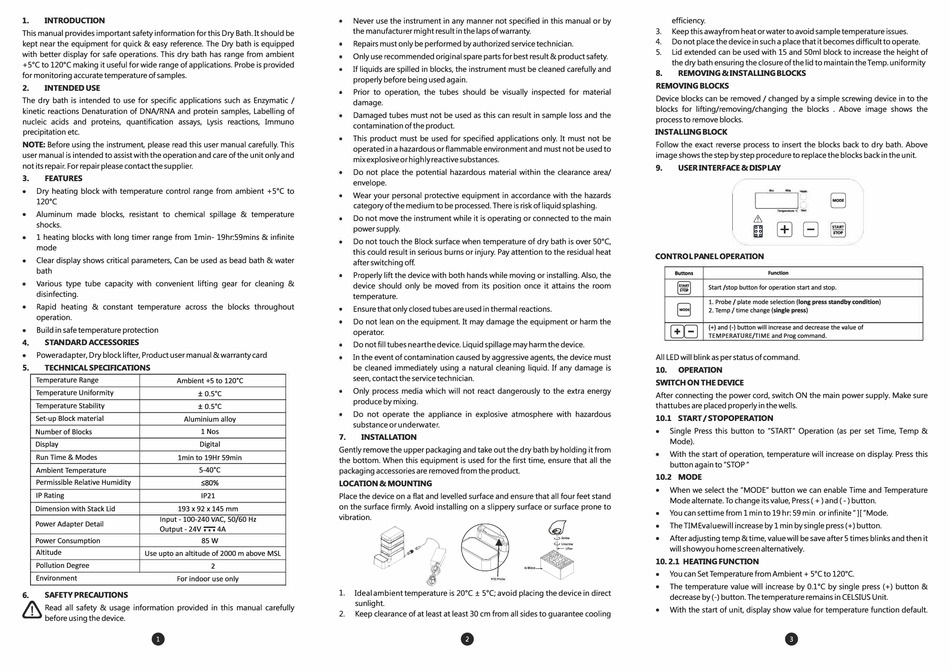

1. INTRODUCTION
This manual provides important safety information for this Dry Bath. lt should be
kept near the equipment for quick & easy reference. The Dry bath is equipped
with better display for safe operations. This dry bath has range from ambient
+ 5'C to 120"( making it useful for wide range of applications. Probe is provided
for monitoring accurate temperature of samples.
2. INTENDED USE
The dry bath is intended to use for specific applications such as Enzymatic /
kinetic reactions Denaturation of DNNRNA and protein samples, Labelling of
nucleic acids and proteins, quantification assays, Lysis reactions, immune
precipitation etc.
Before using the instrument, please read this user manual carefully. This
NOTE:
user manual is intended to assist with the operation and care of the unit only and
not its repair. For repair please contact the supplier.
3. FEATURES
•
Dry heating block with temperature control range from ambient +5"C to
120"(
•
Aluminum made blocks, resistant to chemical spillage & temperature
shocks.
•
1 heating blocks with long timer range from lmin- 19hr:59mins & infinite
mode
•
Clear display shows critical parameters, Can be used as bead bath & water
bath
Various type tube capacity with convenient lifting gear for cleaning &
disinfecting.
• Rapid heating & constant temperature across the blocks throughout
operation.
•
Build in safe temperature protection
4. STANDARD ACCESSORIES
•
Poweradapter, Dry block lifter, Product user manual & warranty card
5. TECHNICAL SPECIFICATIONS
Temperature Range
Ambient +5 to 120'C
Temperature Uniformity
± o.5'c
Temperature Stability
± o.5'c
Set-up Block material
Aluminium alloy
Number of Blocks 1 Nos
Display Digital
Run Time & Modes 1min to 19Hr 59min
5-40'C
Ambient Temperature
Permissible Relative Humidity
�80%
IP Rating IP21
Dimension with Stack Lid 193 x 92 x 145 mm
Input - 100-240 VAC, 50/60 Hz
Power Adapter Detail
Output - 24V ;-;-; 4A
Power Consumption 85W
Altitude
Use upto an altitude of 2000 m above MSL
Pollution Degree
Environment
For indoor use only
&
6. SAFETY PRECAUTIONS
•
Read all safety & usage information provided in this manual carefully
•
before using the device.
Never use the instrument in any manner not specified in this manual or by
the manufacturer might result in the laps of warranty.
Repairs must only be performed by authorized service technician.
Only use recommended original spare parts for best result & product safety.
If liquids are spilled in blocks, the instrument must be cleaned carefully and
properly before being used again.
Prior to operation, the tubes should be visually inspected for material
damage.
Damaged tubes must not be used as this can result in sample loss and the
contamination of the product.
This product must be used for specified applications only. lt must not be
operated in a hazardous or flammable environment and must not be used to
mix explosive or highly reactive substances.
Do not place the potential hazardous material within the clearance area/
envelope.
Wear your personal protective equipment in accordance with the hazards
category of the medium to be processed. There is risk of liquid splashing.
Do not
move
power supply.
Do not touch the Block surface when temperature of dry bath is
this could result in serious burns or injury. Pay attention to the residual heat
after switching off.
Properly lift the device with both hands while moving or installing. Also, the
device should only be
temperature.
Ensure that only closed tu bes are used in thermal reactions.
Do not lean on the equipment. lt may damage the equipment or harm the
operator.
Do not fill tu bes nearthe device. Liquid spillage may harm the device.
In the event of contamination caused by aggressive agents, the device must
be cleaned immediately using a natural cleaning liquid. If any damage is
seen, contact the service technician.
Only process media which will not react dangerously to the extra energy
produce by mixing.
Do not operate the appliance in explosive atmosphere with hazardous
substance or underwater.
7. INSTALLATION
Gently the upper packaging and take out the dry bath by holding it from
remove
the bottom. When this equipment is used for the first time, ensure that all the
packaging accessories are removed from the product.
LOCATION & MOUNTING
Place the device on a flat and levelled surface and ensure that all four feet stand
on the surface firmly. Avoid installing on a slippery surface or surface prone to
vibration.
2
1. Ideal ambient temperature is 20'( ± 5'C; avoid placing the device in direct
sunlight.
2. Keep clearance of at least at least 30 cm from all sides to guarantee cooling
the instrument while it is operating or connected to the main
over
from its position once it attains the room
moved
•
efficiency.
3. Keep this awayfrom heat or water to avoid sample temperature issues.
4. Do not place the device in such a place that it becomes difficult to operate.
5. Lid extended can be used with 15 and 50ml block to increase the height of
the dry bath ensuring the closure of the lid to maintain the Temp. uniformity
8. REMOVING & INSTALUNG BLOCKS
REMOVING BLOCKS
Device blocks can be removed / changed by a simple screwing device in to the
blocks for lifting/removing/changing the blocks . Above image shows the
process to remove blocks.
INSTALLING BLOCK
Fellow the exact reverse process to insert the blocks back to dry bath. Above
image shows the step by step procedure to replace the blocks back in the unit.
9. USER INTERFACE & DISPLAY
'-------1
&
1D]
50'C,
CONTROL PANEL OPERATION
.
Function
Buttons
� Start /stop button for operation start and stop .
8
1. Probe/ plate mode selection (long press standby condition)
2. Temp / time change (single press)
(+) and (-) button will increase and decrease the value of
�
TEMPERATURE/TIME and Prog command.
Al I LED will blink as per status of command.
10. OPERATION
SWITCH ON THE DEVICE
After connecting the power cord, switch ON the main power supply. Make sure
thattubes are placed properly in the wel ls.
10.1 START /STOPOPERATION
•
Single Press this button to "START" Operation (as per set Time, Temp &
Mode).
With the start of operation, temperature will increase on display. Press this
button again to "STOP "
10.2 MODE
• When we select the "MODE" button we can enable Time and Temperature
Mode alternate. To change its value, Press ( + ) and ( - ) button.
•
You can settime from 1 min to 19 hr: 59 min or infinite "]["Mode.
•
The TIMEvaluewill increase by 1 min by single press(+) button.
•
After adjusting temp & time, value will be save after 5 times blinks and then it
will showyou home screen alternatively.
10. 2.1 HEATING FUNCTION
•
You can Set Temperature from Ambient + 5'C to 120'C.
•
The temperature value will increase by 0.l'C by single press (+) button &
decrease by(-) button. The temperature remains in CELSIUS Unit.
•
With the start of unit, display show value for temperature function default.
B
EJ
[±]
•
