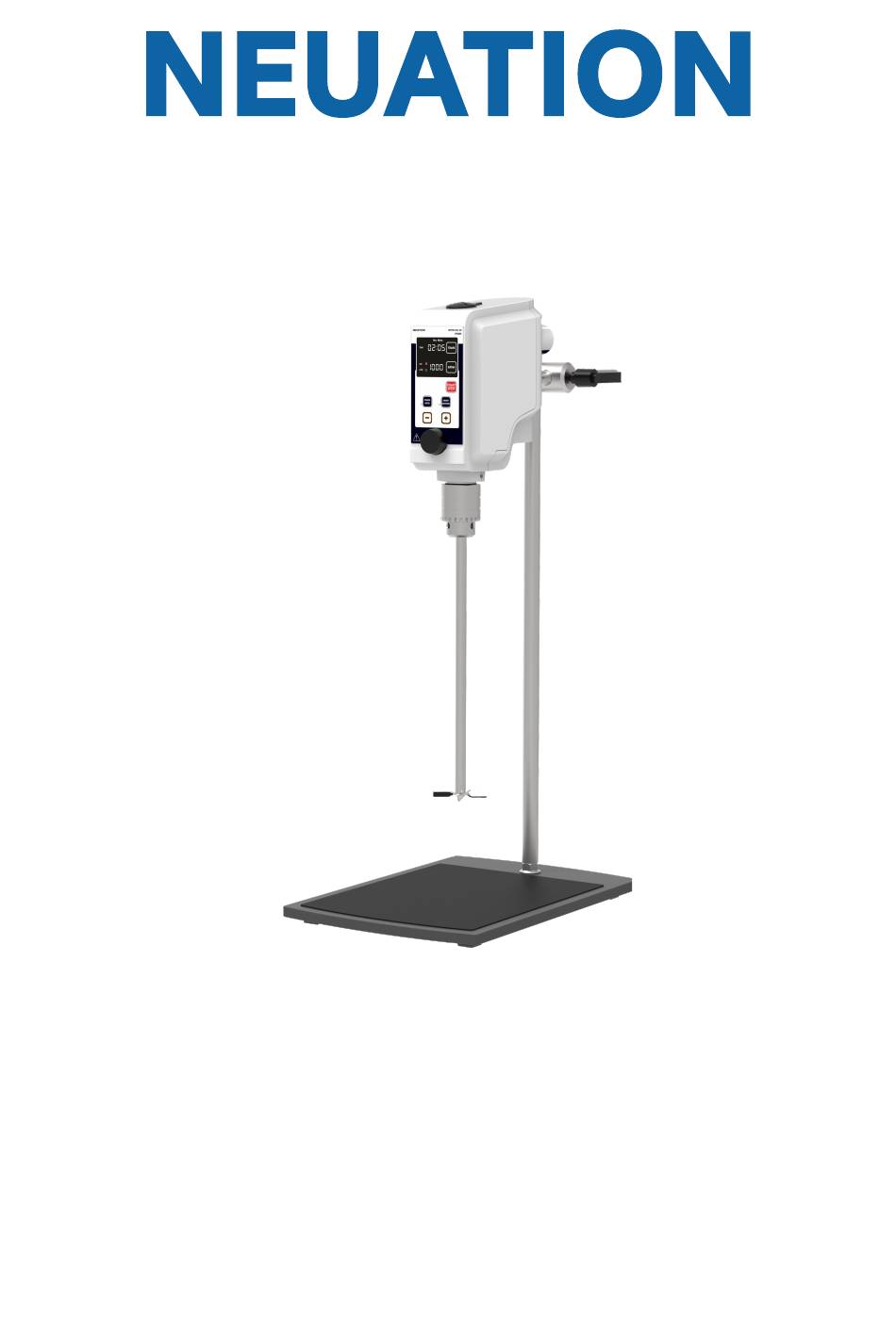

- Page 1 OH 15 PRIME iSTIR OH 20 PRIME iSTIR OH 40 PRIME PRODUCT USER MANUAL...
- Page 3 CONTENTS PRODUCT DESCRIPTION INTENDED USE SYMBOL FEATURES ACCESSORIES TECHNICAL SPECIFICATIONS SAFETY PRECAUTIONS MAINTENANCE & CLEANING INSTALLATION & OPERATION TROUBLESHOOTING WARRANTY STATEMENT PRODUCT DISPOSAL IMPELLER TECHNICAL SPECIFICATION...

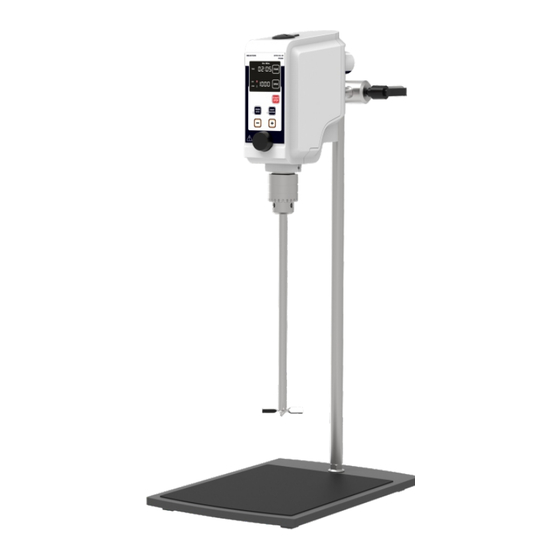

- Page 5 1. PRODUCT DESCRIPTION The overhead stirrer is designed to give homogeneous mixing of the sample. It comes with IP protection class (IP 54), variable speed & timer setting, Large LED display and CW/CCW mixing. Its has smart control feature which ensures the constant mixing of highly viscous solutions.
- Page 6 OH 15 OH 20 OH 40 Model Prime Prime Prime Deviation of speed ± 30 RPM measurement <100 RPM Timer range 1 min - 99 hr 59 min & continuous. Display Digital (LED) Reversible direction of rotation yes, (Resumes from left parameters upon Power Intermittent operation resumption of power) Chuck range...
- Page 7 rotating parts. The safety of the user cannot be guaranteed if the device: · operated with accessories that are not supplied or recommended by the manufacturer. operated improperly or contrary to the manufacture’s specifications. If the printed circuit board are modified by third parties. Do not place any solid particles during motion of the impeller.
- Page 8 case of any fault or mechanical interruption. Care should be taken based on the sample used for mixing. · 8. MAINTENANCE & CLEANING · Plug off the Machine while cleaning · Do not spray cleanser into the instrument when cleaning · Wear protective gloves while cleaning the machine ·...
- Page 9 Hold this Extension Screw bolt Cross sleeve upper portion by one hand Chuck Rotate to Right to tighten the chuck Stirring element and to the left to Chuck key loosen. Stirring element Extension arm Chuck & Impeller Keyless chuck assembly assembly assembly Installation of Impeller...
- Page 10 Item Button Name Function Press the key to start the mixing & To stop the Start operation press the same key again. Stop To set speed in RPM, press this key & the desired RPM can set upon blinking & change the values by using +/- key to set.
- Page 11 Increment: To increase the value, press once to have an increments of 1. Press and hold to increase the value faster. This key is used for adding the values in the parameters such as Speed & timer. Decrement: To decrease the value, press once to have a decrements by 1. Press and hold to decrease the value faster.
- Page 12 10. TROUBLESHOOTING ERROR PROBLEM SOLUTION No main power Power check & proper plug-in connection. of main cable at both ends. No display Power failure Check the mains fuse of the lab. Improper connection. Connect adaptor properly. Switch of the device completely. Require torque to mix Unplug the power adaptor.
- Page 13 well as any supervision required for safety. If requested the products must be returned to the distributor in well packed and insured manner and all shipping charges must be paid. Note: Some states do not allow limitation on the length of implied warranties or the exclusion or limitation of incidental or consequential damages.
- Page 14 13. IMPELLER TECHNICAL SPECIFICATION...
- Page 16 Accumax Lab Devices Private Limited Plot No. 15, 16 & 32 GIDC Electronic Park SEZ, Sector 26, Gandhinagar, Gujarat, India - 382026. Website: www.accumaxlab.com...
