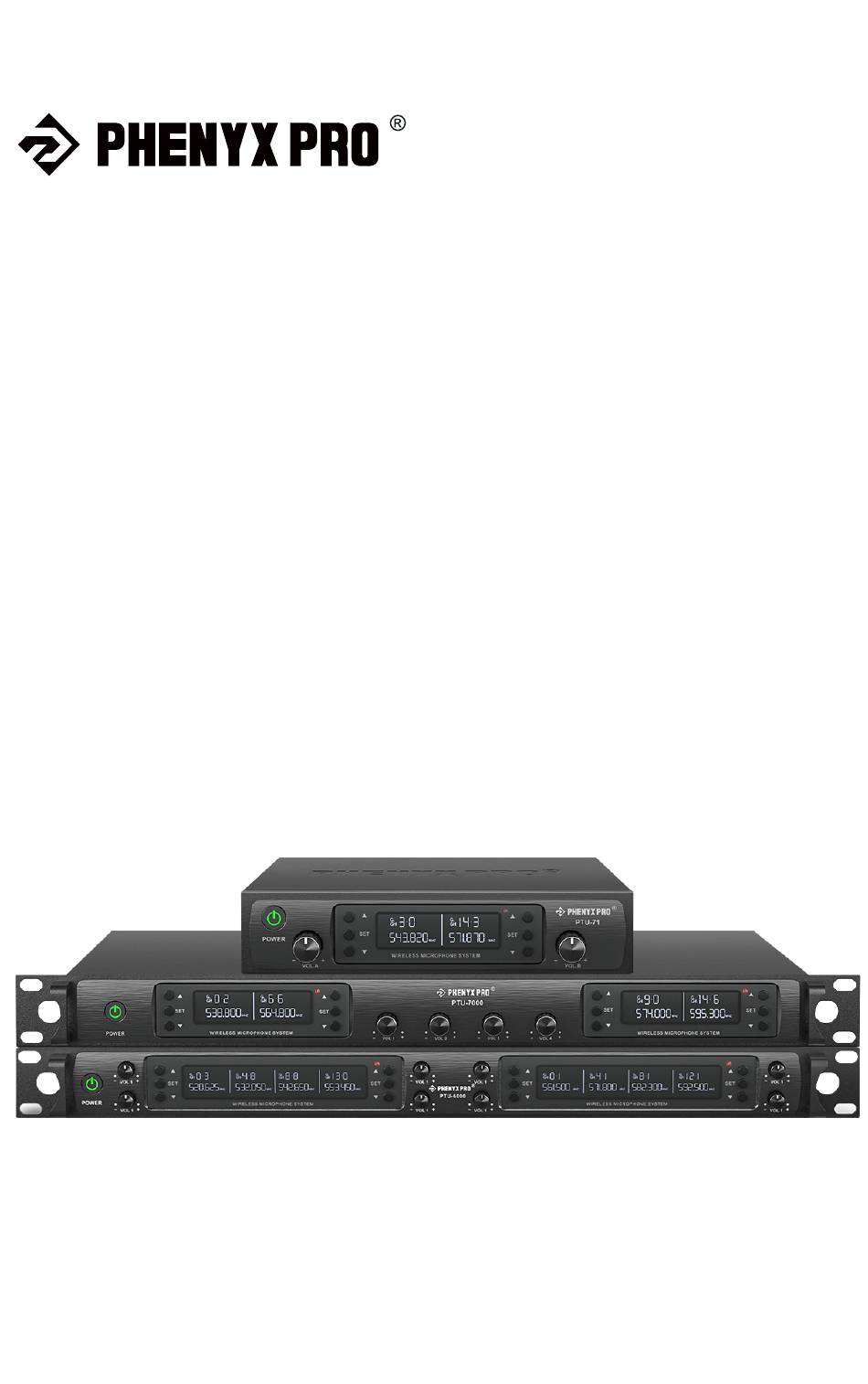

- Page 1 PTU-71/7000/6000 Series AUTO-SCAN UHF Dual / Quad / Eight-Channel Wireless Microphone System USER MANUAL...
-
Page 2: Important Safety Instructions
Licensing of PHENYX PRO wireless microphone equipment is the user's responsibility, and licensability depends on the user's classification and application, and on the selected frequency. PHENYX PRO strongly urges the user to contact the appropriate telecommunications authority concerning proper licensing, and before choosing and ordering frequencies. -
Page 3: Fcc Information
FCC Information IC Statement This device contains license-exempt transmitter(s)/ This device complies with part 15 of the FCC rules. Operation is subject to the following two receiver(s) that comply with Innovation, Science and conditions: Economic Development Canada's licence-exempt (1) This device may not cause harmful inte- RSS(s). -
Page 4: Table Of Contents
Thank you for purchasing the Phenyx Pro PTU-71/7000/6000 Series. For the best results and the utmost satisfaction for your new unit, please read this manual carefully to ensure proper operation, and keep it for future reference. For more information, please visit our store: www.phenyxpro.com Table of Contents System Description..........................6... -
Page 5: System Description
System Description System overview The PTU-71/7000/6000 Series was born with the mission that everyone can enjoy superior sound quality and professional features without overpaying. Adjustable UHF frequency design provides more flexibility when facing outside interference. The state-of-the-art AutoScan circuitry scans the entire RF environment precisely to quickly locate the best available frequen- cy and deliver promising wireless performance. -
Page 6: Operation Guidance
Operation Guidance Single system setup Step 1: Connect and power up the receiver ① Connect antennas to the receiver via ANT jacks. ② Connect the power supply to the receiver via the power jack. ③ Connect the audio output to an amplifier/speaker or mixer via 1/4" mixed output jack or XLR audio output jack. - Page 7 Step 3: Manual frequency selection Step 3: AutoScan frequency selection Short press (tap) the "▲" up and "▼" ① Long press (2s) the SET button of the receiver to down buttons to select the desired initiate the auto-scan function, which searches for frequency.
-
Page 8: Multiple System Setup
Optional step: Initiate the lock function Long press the "▲" up button of the receiver for two seconds to lock your settings and to avoid accidental touch. *NOTE: For PWR-6000, press the " ▲ " up and " ▼ " down buttons to select the desired channel first. The selected channel will flash, and please press SET to confirm. -
Page 9: Functions Of Parts
Functions of Parts Receiver PWR-71 ③ ⑥ ④ ⑦ ⑤ ② ▲ ▲ PTU-71 ① POWER ▼ ▼ WIRELESS MICROPHONE SYSTEM VOL.A VOL.B ⑨ ⑩ 12~15V 150mA ⑧ ⑪ — — — ANT.B MIX OUT BALANCED B BALANCED A ANT.A PWR-7000 ③... - Page 10 ① Power button: Powers on/off the unit. It lights green when the unit is on. ② Volume control knobs: Twist these knobs clockwise/counterclockwise to increase/decrease the volume. *NOTE: Please check the corresponding name of each knob before adjusting the volume for the desired channel properly.
-
Page 11: Transmitters
Transmitters Bodypack transmitter Handheld transmitter PWB-7 PWH-7 ① ② ③ ④ ⑤ ③ ⑤ ⑥ ⑥ ① ③ ④ ① ① Antenna: For signal transmission. ② Battery LED light: It maintains green to indicate sufficient battery and red to show low battery. ③... -
Page 12: Wireless Tips
Wireless Tips If you encounter wireless interference or dropouts, try the following suggestions: • Replace the transmitter batteries. • Choose a different frequency. • Avoid approaching the receiver and transmitters with metal or other dense materials. • Place the receiver as high as possible on the equipment rack. •... -
Page 13: Troubleshooting
Troubleshooting ISSUE INDICATOR STATUS CORRESPONDING SOLUTION • Make sure the DC adapter is securely Receiver LCD screen off plugged into an electrical outlet. • Make sure the receiver is powered on. • Make sure the transmitter is successfully paired up with the receiver. You can see "... - Page 14 • Receiver Output Impedance XLR connector: 2000 RF Sensitivity -105 dBm Image Rejection >110 dB Spurious Rejection >90 dB Power Power Requirement DC 12-15 V, Current: 300 mA, Extemal power adaptor Dimension 210 mm x 160 mm x 45 mm (H x W x D) Weight 775 g (27.3 oz) •...
-
Page 15: Technical Support & Warranty Information
If you are receiving a system that is defective or you have any questions regarding operation or warranty cover, please contact us at support@phenyxpro.com with any questions or concerns and a Phenyx Pro representative will contact you to provide assistance. You can also reach out to us through Facebook page: www.- facebook.com/phenyxusa/ or our official website: www.phenyxpro.com. - Page 16 Made in China Manufacturer: Guangzhou VILAN Technology CO., LTD. Address: No.101 Wanggangdexing Road, Baiyun District, Guangzhou, China www.phenyxpro.com After-sales Service E-mail: support@phenyxpro.com ; info@phenyxpro.com...
