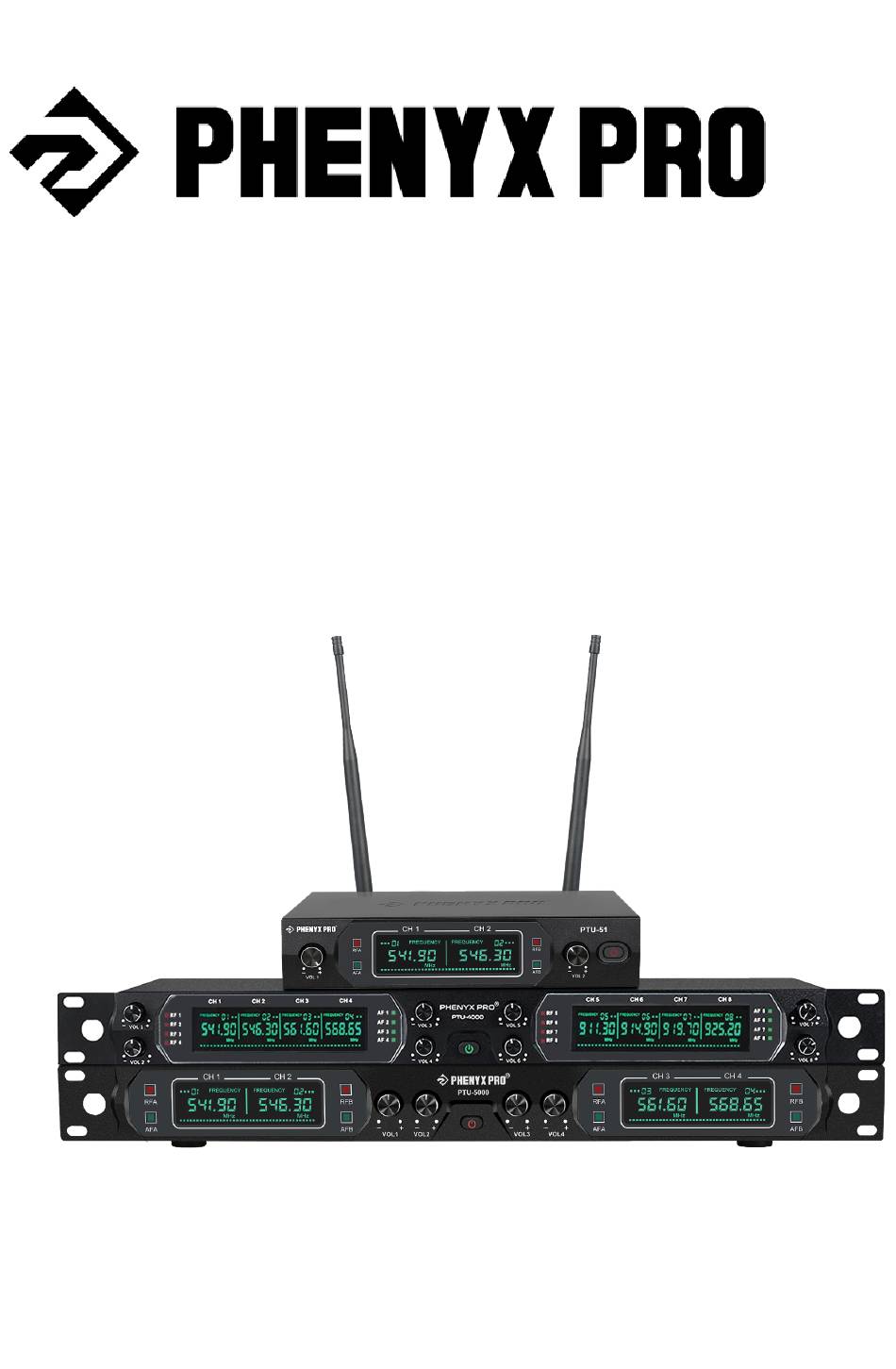

- Page 1 ® PTU-51/5000/4000 Series Fixed UHF Frequency Dual / Quad / Eight Channels Wireless Microphone System OWNER’S MANUAL...
-
Page 2: Table Of Contents
Thank you for purchasing the Phenyx Pro PTU-51/5000/4000 Series. For the best results and the utmost satisfaction for your new unit, please read this manual carefully to ensure proper operation, and keep it for future reference. For more information, please visit our store: www.phennyxpro.com Table of Contents System Description..........................4... -
Page 3: System Description

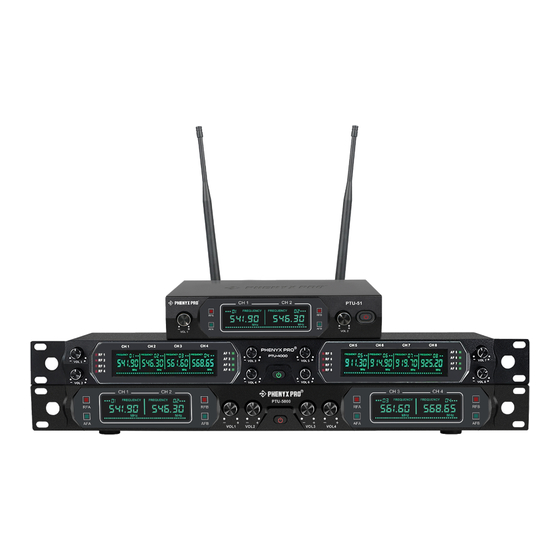

System Description System overview The PTU-51/5000/4000 Series comes to provide everyone with a reliable and affordable solution for wireless sound performance. The full metal housing receiver and handheld transmitters offer great durability. Fixed frequency design makes operation a breeze with the plug-and-go setup and provides stable UHF signals for smooth sound transmission. -
Page 4: Functions Of Parts
② ④ ① ⑦ ⑧ CH 1 CH 5 CH 2 CH 3 CH 4 CH 6 CH 7 CH 8 PHENYX PRO FREQUENCY FREQUENCY FREQUENCY FREQUENCY FREQUENCY FREQUENCY FREQUENCY FREQUENCY RF 1 RF 5 PTU-4000 RF 1 RF 5... - Page 5 ⑱ AF 1: CH1 audio signal indicator. AF 8: CH8 audio signal indicator. CH1 frequency number It lights when the transmitter receives the audio signal. CH2 frequency number ⑲ AF 2: CH2 audio signal indicator. CH3 frequency number ⑳ AF 3: CH3 audio signal indicator. CH4 frequency number AF 4: CH4 audio signal indicator.
-
Page 6: Transmitters
Transmitters Bodypack transmitter Handheld transmitter PWB-5 PWH-5 ⑦ ① ② ③ ④ ⑤ ⑤ ⑥ ⑥ ① ② ③ ④ ③ ① Antenna ② Battery light: It lights red to indicate low battery level. ③ Power button: For the bodypack transmitter, one short press (tap) the power button to turn it on/off. -
Page 7: Operation Guidance
Operation Guidance Single system setup Step 1: Connect and power up the receiver ① Connect antennas to the receiver via ANT jacks. *Note: For PWR-4000, connect two ANTB-500 antennas to ANT A and ANT B, and two ANTB-900 antennas to ANT C and ANT D. ②... -
Page 8: Wireless Tips
Wireless Tips If you encounter wireless interference or dropouts, try the following suggestions: • Replace the transmitter batteries. • Choose a different frequency channel. • Avoid approaching the receiver and transmitters with metal or other dense materials. • Place the receiver as high as possible on the equipment rack. •... -
Page 9: Specification
Specification Specification · Overall System Frequency stability ±0.003% Dynamic range >105dB Operation temperature -10 °℃ --- 50 °℃ Frequency response 50Hz - 18kHz Audio output level 1/4 interface: 0 - 500 mV; XLR interface: 0-500mV Working distance 80M/260ft · Receiver PLL Synthesized Oscillation mode >7W... - Page 10 · Frequency List Receiver Channel and frequency Compatible antenna Channel 1: 541.90MHz PWR-51 ANTB-500 Channel 2: 546.30MHz Channel 1: 541.90MHz Channel 2: 546.30MHz ANTB-500 PWR-5000 Channel 3: 561.60MHz Channel 4: 568.65MHz Channel 1: 541.90MHz Channel 2: 546.30MHz ANTB-500 Channel 3: 561.60MHz PWR-4000 Channel 4: 568.65MHz Channel 5: 911.30MHz...
-
Page 11: Technical Support & Warranty Information
If you are receiving a system that is defective or you have any questions regarding operation or warranty cover, please contact us at support@phenyxpro.com with any questions or concerns and a Phenyx Pro representative will contact you to provide assistance. You can also reach out to us through Facebook page: www.facebook.com/phenyxusa/ or our official website: www.phenyxpro.com...
