- Page 1 PTV-2000 VHF FIXED FREQUENCY Quad Wireless Microphone System USER MANUAL...
-
Page 2: Important Safety Instructions
Licensing of PHENYX PRO wireless microphone equipment is the user's responsibility, and licensability depends on the user's classification and application, and on the selected frequency. PHENYX PRO strongly urges the user to contact the appropriate telecommunications authority concerning proper licensing, and before choosing and ordering frequencies. -
Page 3: Fcc Information
FCC Information IC Statement This device complies with part 15 of the FCC This device contains license-exempt transmitter(s)/ rules. Operation is subject to the following two receiver(s) that comply with Innovation, Science and conditions: Economic Development Canada's licence-exempt (1) This device may not cause harmful inte- RSS(s). -
Page 4: Table Of Contents
Thank you for purchasing the Phenyx Pro PTV-2000 VHF fixed frequency quad wireless microphone system. For the best results and utmost satisfaction with your new unit, please read this manual carefully to ensure proper operation, and keep it for future reference. For more information, please visit our store: www.phenyxpro.com... -
Page 5: System Description
Whether it's for a conference, an educational classroom setting, a vibrant dance hall, an intimate karaoke session, a solemn church, or a lively party, the PTV-2000 adapts with ease. The system's reach extends up to 200 feet in open space, guaranteeing expansive coverage without compromise. -
Page 6: Box Components

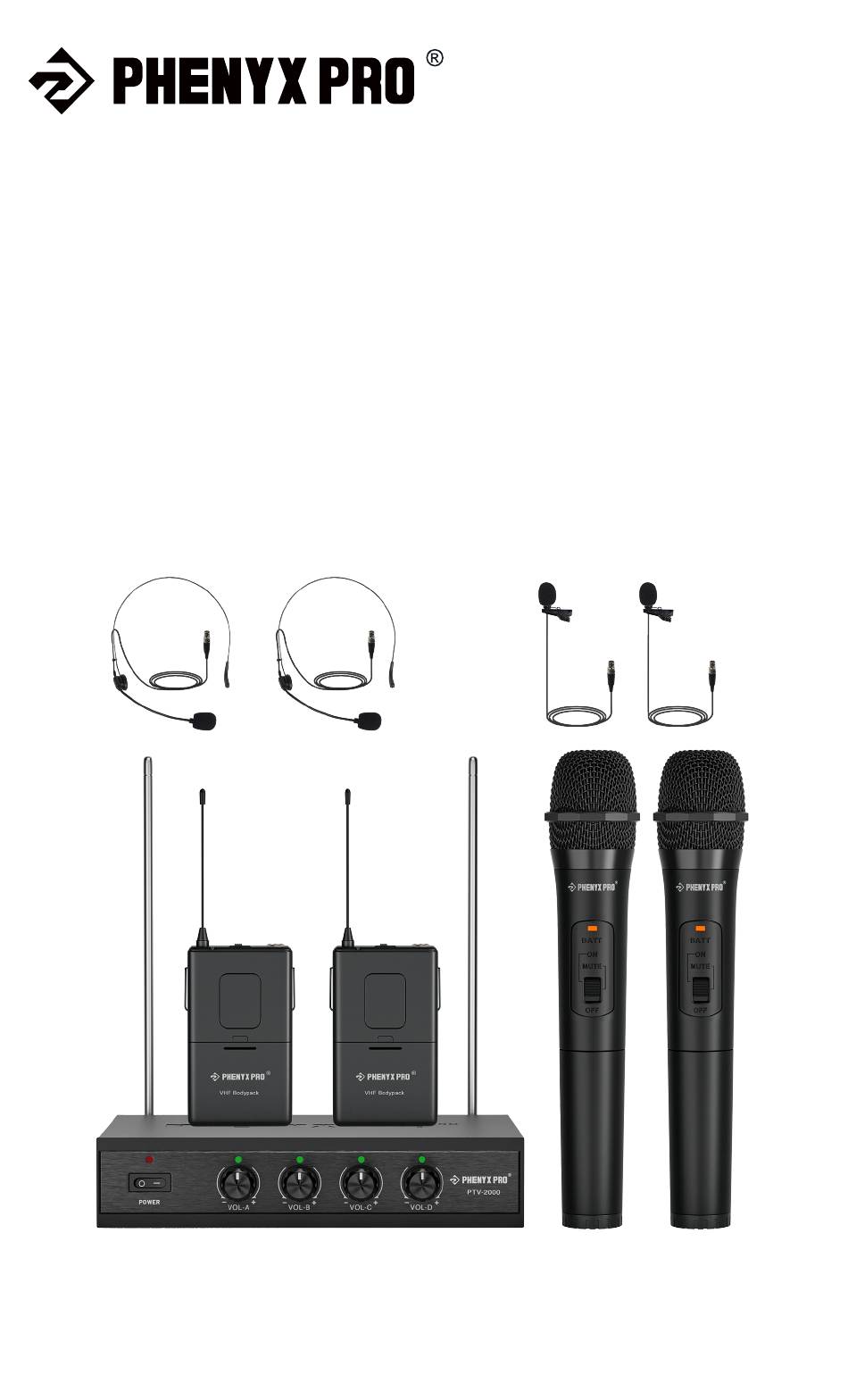

Box components Your system comes with a combination of the following components. Receiver PWR-1 4-Channel VHF Wireless Receiver with XLR and 1/4'' Outputs Transmitters PWH-1 Handheld Transmitter PWB-1 Bodypack Transmitter Accessories PHM-01-BLK Black Headset Mic PHM-01-BGE Beige Headset Mic PLM-01-BLK Black Lapel Mic PLM-01-BGE Beige Lapel Mic... -
Page 7: Operating Instructions
Operation Instructions Set up Step 1: Connect the receiver ① Connect the AC/DC power adapter to a wall outlet and to the back of the receiver. ② Secure antennas A and B to the receiver, arranging them 60 degrees apart for optimal signal reception. -
Page 8: Operation Tips
Step 3: Pair up the receiver and transmitters ⑥ With the speaker volume still off, turn on the receiver. ⑦ Observe the RF LED indicators on the receiver which should light up, signifying that the transmitters are successfully paired with the receiver. ⑧... -
Page 9: Functions Of Parts
Functions of Parts Receiver PWR-1 ⑥ ⑦ ⑧ ⑨ ① ② ③ ④ ⑤ Front Panel ① Power switch: Powers on/off the unit. ② Volume A control: Adjust the volume output of CHA ③ Volume B control: Adjust the volume output of CHB ④... -
Page 10: Transmitters
Transmitters Handhled transmitter PWH-1 ① Battery power indicator ② ON/MUTE/OFF switch ③ Battery compartment cover Under normal operation, the battery power indicator ① will briefly light up when powering on the microphone. If the battery power indicator ① stays continuously on after powering on the microphone, the batteries must be ①... - Page 11 Bodypack transmitter PWB-1 The Phenyx VHF bodypack is to be used with the Phenyx lavalier microphone & headsets. ① Antenna ② Battery power indicator ① ③ ON/MUTE/OFF switch ④ Microphone input ⑤ Battery compartment 1 - Secure the bodypack to clothing, belt or pocket. 2 - (a) For a lavalier microphone, clip the microphone to clothing about 1 foot under the mouth.
-
Page 12: Troubleshooting Tips
Troubleshooting Tips ISSUE REASON SOLUTION Transmitter battery indicator The batteries are low Replace with fresh batteries. is rapidly flashing or continuously ON The microphone is too Increase the distance between A howling noise (also known close to the speaker the microphone and the speaker. as "feedback") can be heard Avoid pointing pointing the mic- from the speakers... -
Page 13: Specifications
Specifications • Overall System 220 MHz-280 MHz (Frequency of operation Carrier Frequency depends on local regulations) Frequency Stability 0.003% Dynamic Range >100 dB T.H.D <0.5% Frequency Response 50 Hz-18 kHz Outputs XLR balanced mixed; unbalanced mixed Audio Output Level 0-500 mV Range 200 ft (actual range depends on local conditions) Operating Temperature... -
Page 14: Technical Support & Warranty Information
If you are receiving a system that is defective or you have any questions regarding operation or warranty cover, please contact us at support@phenyxpro.com with any questions or concerns and a Phenyx Pro representative will contact you to provide assistance. You can also reach out to us through Facebook page: www.- facebook.com/phenyxusa/ or our official website: www.phenyxpro.com. - Page 15 Made in China Manufacturer: Guangzhou VILAN Technology CO., LTD. Address: No.101 Wanggangdexing Road, Baiyun District, Guangzhou, China www.phenyxpro.com After-sales Service E-mail: support@phenyxpro.com ; info@phenyxpro.com...
