- Page 1 ® PTU-71/7000/6000 Series Selectable UHF Frequency Dual / Quad / Eight Channels Wireless Microphone System www.phenyxpro.com OWNER’S MANUAL...
-
Page 2: Table Of Contents

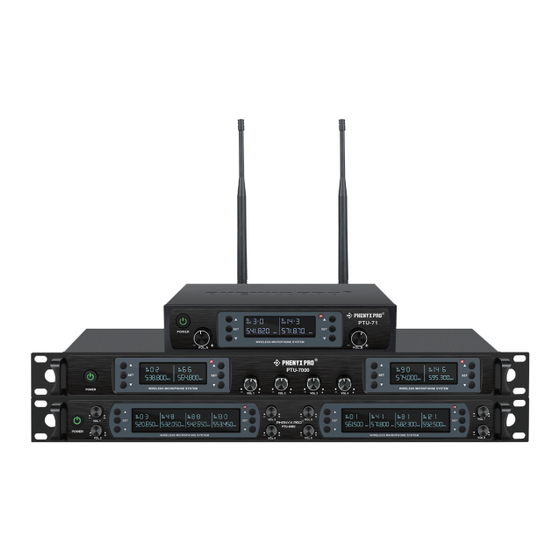

System Description System overview Thank you for purchasing the Phenyx Pro PTU-71/7000/6000 Series. For the best results and the utmost satisfaction for your new unit, please read this manual carefully to ensure proper operation, The PTU-71/7000/6000 Series was born with the mission that everyone can enjoy superior sound and keep it for future reference. -
Page 3: Functions Of Parts
Functions of Parts Receiver ① Power button: Powers the unit on and off. When it is on, it lights green. ② Volume control knobs: Twist these knobs clockwise/counterclockwise to increase/decrease the volume. PWR-71 ③ *NOTE: Please check the corresponding name of each knob before adjusting the volume for the desired ④... -
Page 4: Transmitters
Operation Guidance Transmitters Single system setup Step 1: Connect and power up the receiver Bodypack transmitter Handheld transmitter PWB-7 PWH-7 ① Connect antennas to the receiver via ANT jacks. ② Connect the power supply to the receiver via the power jack. ①... -
Page 5: Multiple System Setup
Step 3: Manual setup Step 3: AutoScan setup Optional step: Initiate the lock function Short press (tap) the “▲”up and “▼”down ① Long press (2s) the SET button of the receiver Long press the “▲” up button of the receiver for two seconds to lock your settings and to avoid a buttons to select the desired frequency. - Page 6 Wireless Tips Specification If you encounter wireless interference or dropouts, try the following suggestions: Specification • Replace the transmitter batteries. • Overall System • Choose a different frequency channel. Carrier frequency range • Avoid approaching the receiver and transmitters with metal or other dense materials. UHF 530 - 580 MHz (Depends on local regulations) •...
- Page 7 If you are receiving a system that is defective or you have any questions regarding operation or warranty cover, please contact us at support@phenyxpro.com with any questions or concerns and a Phenyx Pro representative will contact you to provide assistance. You can also reach out to us through Facebook page: www.facebook.com/phenyxusa/ or our official website: www.phenyxpro.com...
