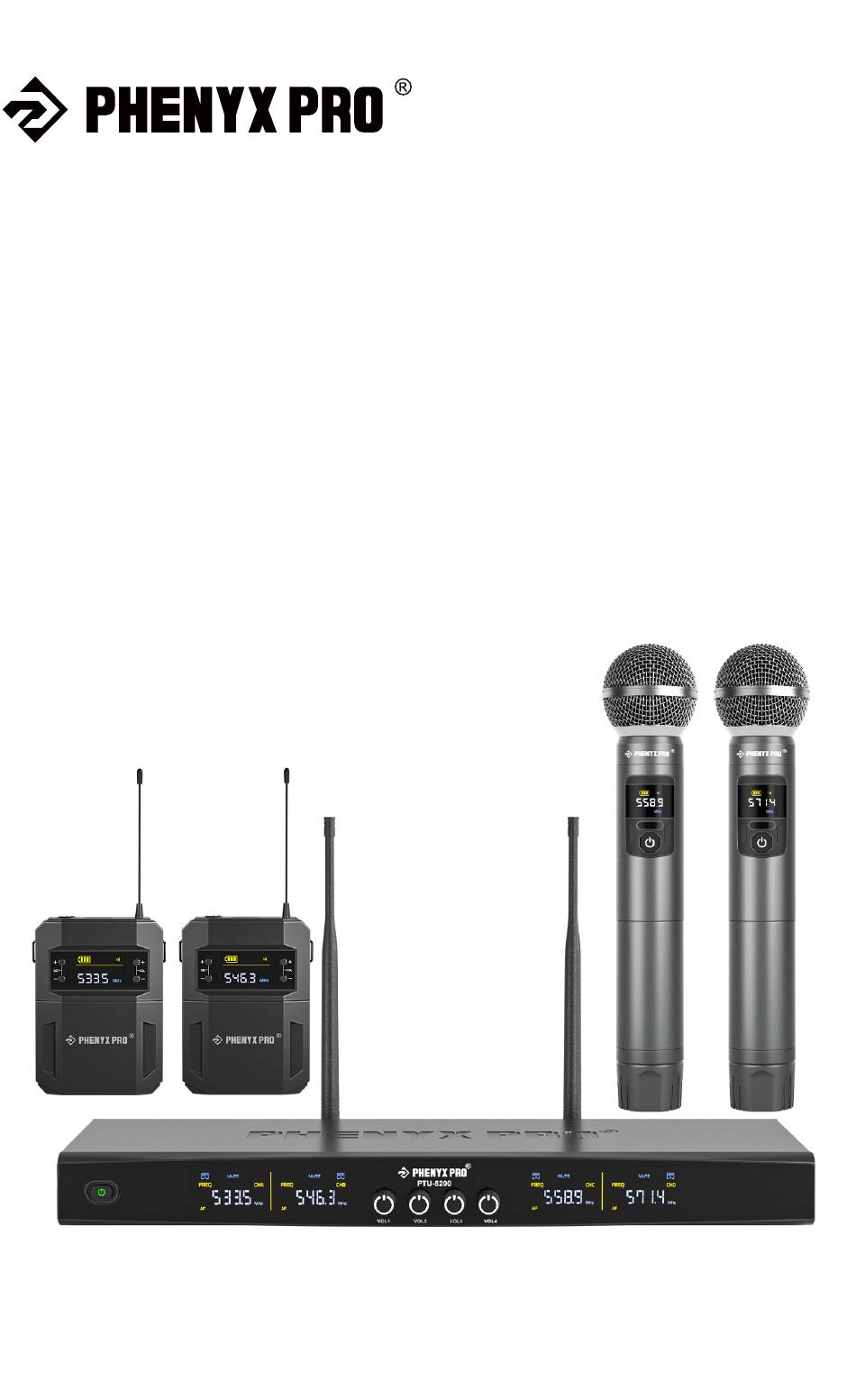

- Page 1 PTU-5200 Series 4-Channel Frequency-Hopping Wireless Microphone System USER MANUAL...
-
Page 2: Important Safety Instructions
Licensing of PHENYX PRO wireless microphone equipment is the user's responsibility, and licensability depends on the user's classification and application, and on the selected frequency. PHENYX PRO strongly urges the user to contact the appropriate telecommunications authority concerning proper licensing, and before choosing and ordering frequencies. -
Page 3: Fcc Information
FCC Information IC Statement This device complies with part 15 of the FCC This device contains license-exempt transmitter(s)/ rules. Operation is subject to the following two receiver(s) that comply with Innovation, Science and conditions: Economic Development Canada's licence-exempt (1) This device may not cause harmful inte- RSS(s). -
Page 4: Table Of Contents
Thank you for purchasing the Phenyx Pro PTU-5200 4-Channel UHF Wireless Microphone System. For the best results and utmost satisfaction with your new unit, please read this manual carefully to ensure proper operation, and keep it for future reference. For more information, please visit our store: www.phenyxpro.com... -
Page 5: System Description
System Description System overview The Phenyx Pro PTU-5200 system represents a significant step towards offering the convenience and sound quality every performer aspires to. It merges high-quality sound, straightforward setup, and an intuitive interface for outstanding audio performance straight out of the box. The microphone capsule employs cardioid polar pattern that effectively captures and transmits sound and eliminates feedback and ambient noise. -
Page 6: System Components
System components Your system comes with a combination of the following components. Receiver PWR-5200 4-Channel UHF Wireless Receiver with XLR and 1/4" Outputs Transmitters PWH-5200 Handheld Transmitter PWB-5200 Bodypack Transmitter Accessories 1HM1LM-BLK Black Headset & Lapel Mic Combo PHM-01-BGE Beige Headset Mic PLM-01-BGE Beige Lapel Mic ANTB-500... -
Page 7: Operating Instructions
Operation Instructions Set up Step 1: Connect the receiver ① Connect the AC/DC power adapter to a wall outlet and to the back of the receiver. ② Secure antennas A and B to the receiver, arranging them 60 degrees apart for optimal signal reception. - Page 8 Step 3: Pair up the receiver and transmitters ① Ensure the volume of your speakers is off, turn on the receiver and the transmitters. The LCD display turns on and the "MUTE" disappears, indicating that the corresponding transmitter is paired with the receiver. The AF signal indicates the presence of an audio signal coming from the transmitter.
-
Page 9: Operation Tips
Operation tips 1. Change Frequency Short press the SET button to change the frequency. The MUTE symbol might be on during the process. Wait for one second and it will disappear. 2. Change the Microphone's Channel Group Before setup, please turn off the transmitter that occupied the original channel to avoid interference. -
Page 10: Functions Of Parts
Functions of Parts Receiver PWR-5200 Front Panel ① ② ③ ④ ⑤ ⑥ ① Power button: Press and hold the button for 1 sec to turn on the receiver. Press again to turn it off. ② LCD display ③ Volume 1 control: Adjust the volume output of CHA ④... -
Page 11: Transmitters
Transmitters PWH-5200 Handhled transmitter ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ① Microphone capsule ② LCD battery power display ③ LCD frequency channel display ④ ON/OFF/MUTE switch: Long press this switch to turn on/off, tap to mute the microphone. ⑤... -
Page 12: Bodypack Transmitter
PWB-5200 Bodypack transmitter The Phenyx UHF bodypack is to be used with the Phenyx lavalier microphone & headsets. Side View ⑤ ④ ⑥ ③ ② ① ⑦ ① Microphone input ② Power button: Long press this switch to turn on/off, tap to mute the microphone. ③... -
Page 13: Troubleshooting Tips
Troubleshooting Tips ISSUE INDICATOR STATUS CORRESPONDING SOLUTION Receiver LCD screen off • Make sure the DC adapter is securely plugged into an electrical outlet. • Make sure the receiver is powered on. • Make sure the transmitter is turned on with Receiver LCD screen on a sufficient battery and is successfully paired with the receiver. -
Page 14: Specifications
Specifications Specification • Overall System Frequency Range 500 MHz - 590 MHz Frequency Stability ≤± 30 ppm Audio Dynamic Range > 90 dB T.H.D < 0.5% Frequency Response 40 Hz-15 kHz ± 3 dB Output Plug XLR balanced, 1/4" unbalanced plug Output Voltage 1/4"... -
Page 15: Technical Support & Warranty Information
If you are receiving a system that is defective or you have any questions regarding operation or warranty cover, please contact us at support@phenyxpro.com with any questions or concerns and a Phenyx Pro representative will contact you to provide assistance. You can also reach out to us through Facebook page: www.- facebook.com/phenyxusa/ or our official website: www.phenyxpro.com. - Page 16 Made in China Manufacturer: Guangzhou VILAN Technology CO., LTD. Address: No.101 Wanggangdexing Road, Baiyun District, Guangzhou, China www.phenyxpro.com After-sales Service E-mail: support@phenyxpro.com ; info@phenyxpro.com...
