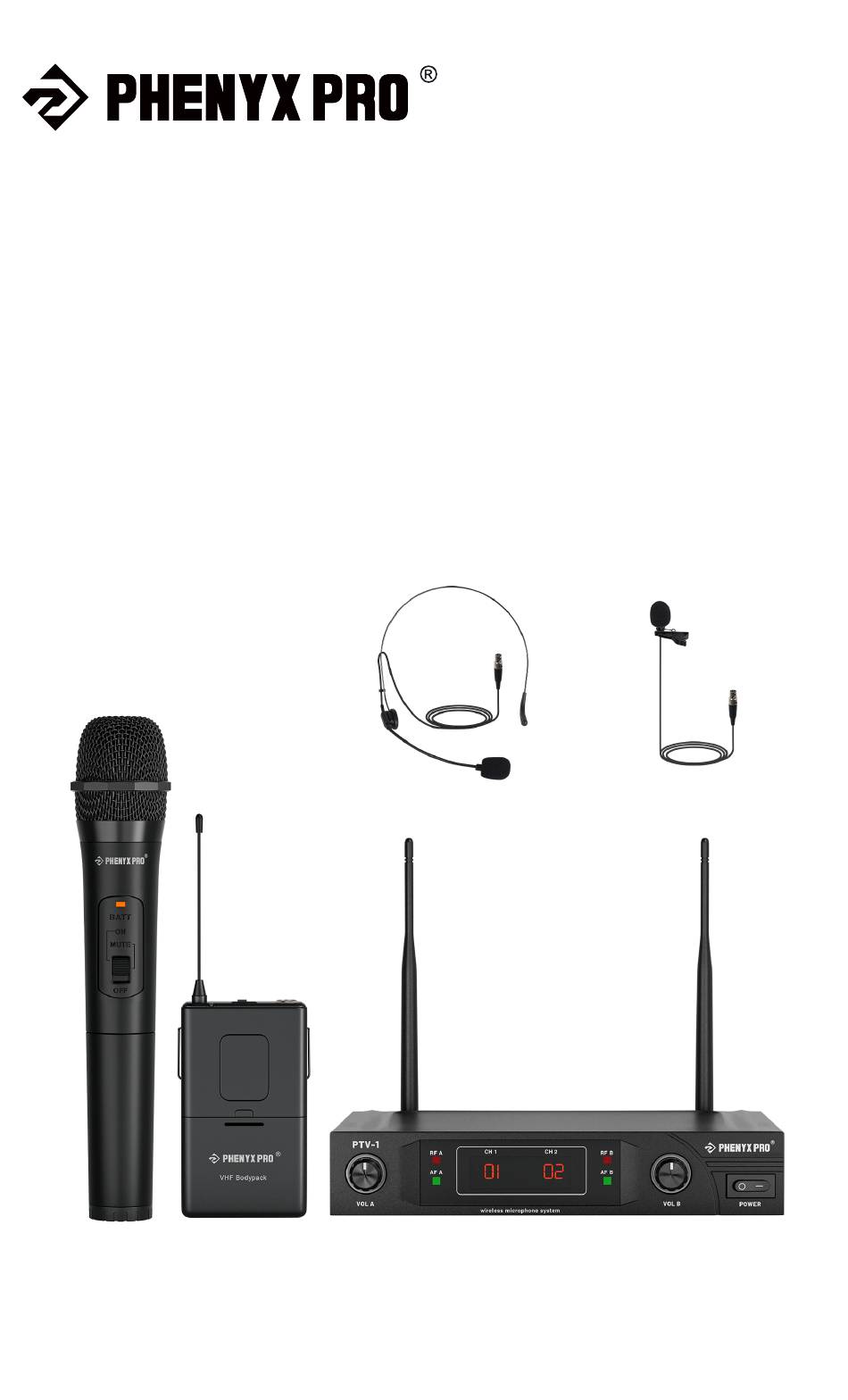

- Page 1 PTV-1 VHF Dual Wireless Microphone System USER MANUAL...
-
Page 2: Important Safety Instructions
Licensing of PHENYX PRO wireless microphone equipment is the user's responsibility, and licensability depends on the user's classification and application, and on the selected frequency. PHENYX PRO strongly urges the user to contact the appropriate telecommunications authority concerning proper licensing, and before choosing and ordering frequencies. -
Page 3: Fcc Information
FCC Information IC Statement This device complies with part 15 of the FCC This device contains license-exempt transmitter(s)/ rules. Operation is subject to the following two receiver(s) that comply with Innovation, Science and conditions: Economic Development Canada's licence-exempt (1) This device may not cause harmful inte- RSS(s). -
Page 4: Table Of Contents
Thank you for purchasing the Phenyx Pro PTV-1. For the best results and utmost satisfaction with your new unit, please read this manual carefully to ensure proper operation, and keep it for future reference. For more information, please visit our store: www.phenyxpro.com Table of Contents System Description..........................6... -
Page 5: System Description
System Description System overview The PTV-1 dual wireless microphone system is designed to deliver excellent sound quality and ease of use in a compact package. It's ideal for public addresses, karaoke, live performances, interviews, sermons, and more. Depending on your purchase, the signal from the microphones (handheld, lavalier, or headset) is wirelessly transmitted to the receiver, which can be connected to your amplifier, mixer, or powered speakers with the included ¼"... -
Page 6: Operating Instructions
Operating Instructions Set up Step 1: Connect the receiver Connect the DC power adapter to a wall outlet and to the back of the receiver. ① Position the antennas 60° apart from each other as shown. ② Connect one of the two outputs available at the back panel to the next stage in your system. ③... -
Page 7: Operation Tips
Step 3: Pair up the receiver and transmitters ⑥ Making sure the volume of your speakers is off, turn on the receiver and the transmitters. The "RF" LED turns on, indicating that the corresponding transmitter is paired with the receiver. Note that the number displayed (the channel number) is fixed and cannot be adjusted. -
Page 8: Functions Of Parts
Functions of Parts Receiver PWR-1 Front Panel ③ ③ ① ② ④ ② ⑤ ⑥ ① Channel A volume control ④ LCD display (power indicator) ② Audio meter ⑤ Channel B volume control ③ RF Meter ⑥ Power switch Back Panel ①... -
Page 9: Transmitters
Transmitters PWH-1 Handheld Microphone ① ② ③ ① Battery power indicator ② ON/MUTE/OFF switch ③ Battery compartment cover Under normal operation, the battery power indicator ① will briefly light up when powering on the microphone. If the battery power indicator ① stays continuously on after powering on the microphone, the batteries must be replaced. - Page 10 PWB-1 Bodypack The Phenyx VHF bodypack is to be used with the Phenyx lavalier microphones & headsets. ① Antenna ② Battery Power Indicator ③ ON/MUTE/OFF switch ④ Microphone input ① ② ③ ④ ⑤ Battery compartment Set Up: 1 - Secure the bodypack to clothing, belt or pocket.
-
Page 11: Troubleshooting Tips
Troubleshooting Tips ISSUE REASON SOLUTION Transmitter battery indicator The batteries are low Replace with freshbatteries is rapidly flashing or continuously ON A howling noise (also known The microphone is too Increase the distance bet- as "feedback") can be heard close to the speaker ween the microphone and from the speakers the speaker. -
Page 12: Specifications
Specifications · Overall System Carrier Frequency Range VHF (Frequency of Operation Depends On Local Regulations) Frequency Stability 0.003% Dynamic Range >100 dB <0.5% Frequency Response 50 Hz-18 kHz Outputs XRL Balanced Mixed; ¼" Unbalanced Mixed Audio Output Level 0-500 mV Range 150 ft (Actual Range Depends on Local Conditions) Operating Temperature... -
Page 13: Technical Support & Warranty Information
If you are receiving a system that is defective or you have any questions regarding operation or warranty cover, please contact us at support@phenyxpro.com with any questions or concerns and a Phenyx Pro representative will contact you to provide assistance. You can also reach out to us through Facebook page: www.- facebook.com/phenyxusa/ or our official website: www.phenyxpro.com. - Page 14 Made in China Manufacturer: Guangzhou VILAN Technology CO., LTD. Address: No.101 Wanggangdexing Road, Baiyun District, Guangzhou, China www.phenyxpro.com After-sales Service E-mail: support@phenyxpro.com ; info@phenyxpro.com...
