- Page 1 PTU-52 UHF Dual-Channel Wireless Microphone System USER MANUAL...
-
Page 2: Important Safety Instructions
Licensing of PHENYX PRO wireless microphone equipment is the user's responsibility, and licensability depends on the user's classification and application, and on the selected frequency. PHENYX PRO strongly urges the user to contact the appropriate telecommunications authority concerning proper licensing, and before choosing and ordering frequencies. -
Page 3: Fcc Information
FCC Information IC Statement This device complies with part 15 of the FCC This device contains license-exempt transmitter(s)/ rules. Operation is subject to the following two receiver(s) that comply with Innovation, Science and conditions: Economic Development Canada's licence-exempt (1) This device may not cause harmful inte- RSS(s). -
Page 4: Table Of Contents
Thank you for purchasing the Phenyx Pro PTU-52. For the best results and the utmost satisfaction for your new unit, please read this manual carefully to ensure proper operation, and keep it for future reference. For more information, please visit our store: www.phenyxpro.com Table of Contents System Description..........................6... -
Page 5: System Description
The system is equipped with 30 selectable frequency sets that allow easy multiset operation. With an operating distance of up to 200 ft in wide open spaces, the PTU-52 is ideal for public speaking, conference meetings, singing, churches, and outdoor events. -
Page 6: Functions Of Parts

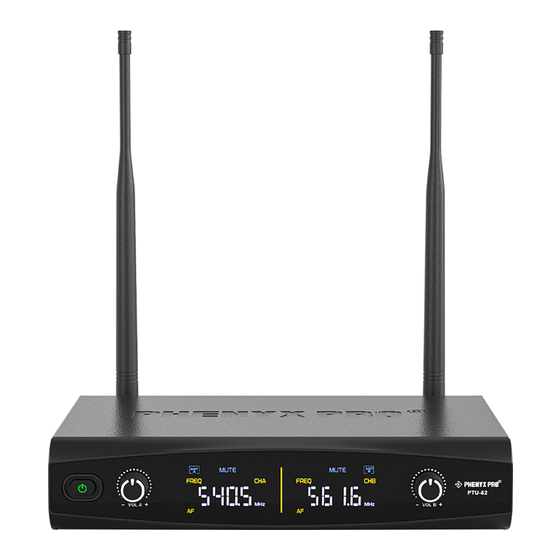

Functions of Parts Receiver PWR-52 ① ② ③ ④ ① Power switch: Press the button for 1 sec to turn on the receiver and press it again to turn it off ② Volume A control: Adjust the volume output of sound from CH1 ③... -
Page 7: Transmitters
Transmitters PWH-52 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ① Microphone capsule ② LCD battery power display ③ LCD frequency channel display ④ ON/OFF/MUTE switch: Press this switch to turn on, turn off or mute the microphone. ⑤ Battery cover ⑥... - Page 8 PWB-52 The Phenyx UHF bodypack is to be used with the Phenyx lavalier microphone & headsets. ④ ⑥ ⑤ ⑦ ③ ② ① ⑧ ① Microphone input ⑤ Frequency down ② ON/OFF/MUTE ⑥ Volume up ③ Antenna ⑦ Volume down ④...
-
Page 9: Operation Guidance
Operation Guidance Single system setup Step 1: Connect and power up the receiver ① Connect antennas to the receiver via ANT jacks. ② Connect the power supply to the receiver via the power jack. ③ Connect the audio output to an amplifier/speaker or mixer via 1/4" mixed output jack or XLR audio output jack. -
Page 10: Wireless Tips
Step 3: Frequency selection Press the SET button of the bodypack transmitter to adjust frequency. Step 4: Pair up the receiver and transmitters The LCD display on the receiver will change accordingly and pair up with the transmitter automatically. Wireless Tips If you encounter wireless interference or dropouts, try the following suggestions: •... -
Page 11: Troubleshooting
Troubleshooting ISSUE INDICATOR STATUS CORRESPONDING SOLUTION • Make sure the DC adapter is securely Receiver LCD screen off plugged into an electrical outlet. • Make sure the receiver is powered on. • Make sure the transmitter is turned on with sufficient battery. And make sure it is successfully paired up with the receiver. -
Page 12: Specification
Specification Specification • Overall System Frequency Range 500 MHz-590 MHz Frequency Stability < ± 30 ppm Audio Dynamic Range > 90 dB T.H.D < 0.5% Frequency Response 40 Hz-15 KHz±3 dB Output Plug XLR balance, 1/4" unbalance plug Output Voltage 1/4"... -
Page 13: Technical Support & Warranty Information
If you are receiving a system that is defective or you have any questions regarding operation or warranty cover, please contact us at support@phenyxpro.com with any questions or concerns and a Phenyx Pro representative will contact you to provide assistance. You can also reach out to us through Facebook page: www.- facebook.com/phenyxusa/ or our official website: www.phenyxpro.com. - Page 14 Made in China Manufacturer: Guangzhou VILAN Technology CO., LTD. Address: No.101 Wanggangdexing Road, Baiyun District, Guangzhou, China www.phenyxpro.com After-sales Service E-mail: support@phenyxpro.com ; info@phenyxpro.com...
